1.0mm 110 GHz, 0.009″ Accept Pin Diameter, Thread-In Step-Thread Female Connector


This Model D100-P09-Y05-A is a Female connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.

1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with Thread-In Step-Thread mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.

SPEC

1.00mm (W) Connector

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, Thread-In Step-Thread Female Connector

D100-P09-Y05-A

This Model D100-P09-Y05-A is a Female connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.

1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with Thread-In Step-Thread mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

110

Flange (inch)

NA

Mounting

Thread-In Step-Thread

Accept Pin Diameter (inch)

0.009″

Gender

Female

Features

Low VSWR

Free through 110 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

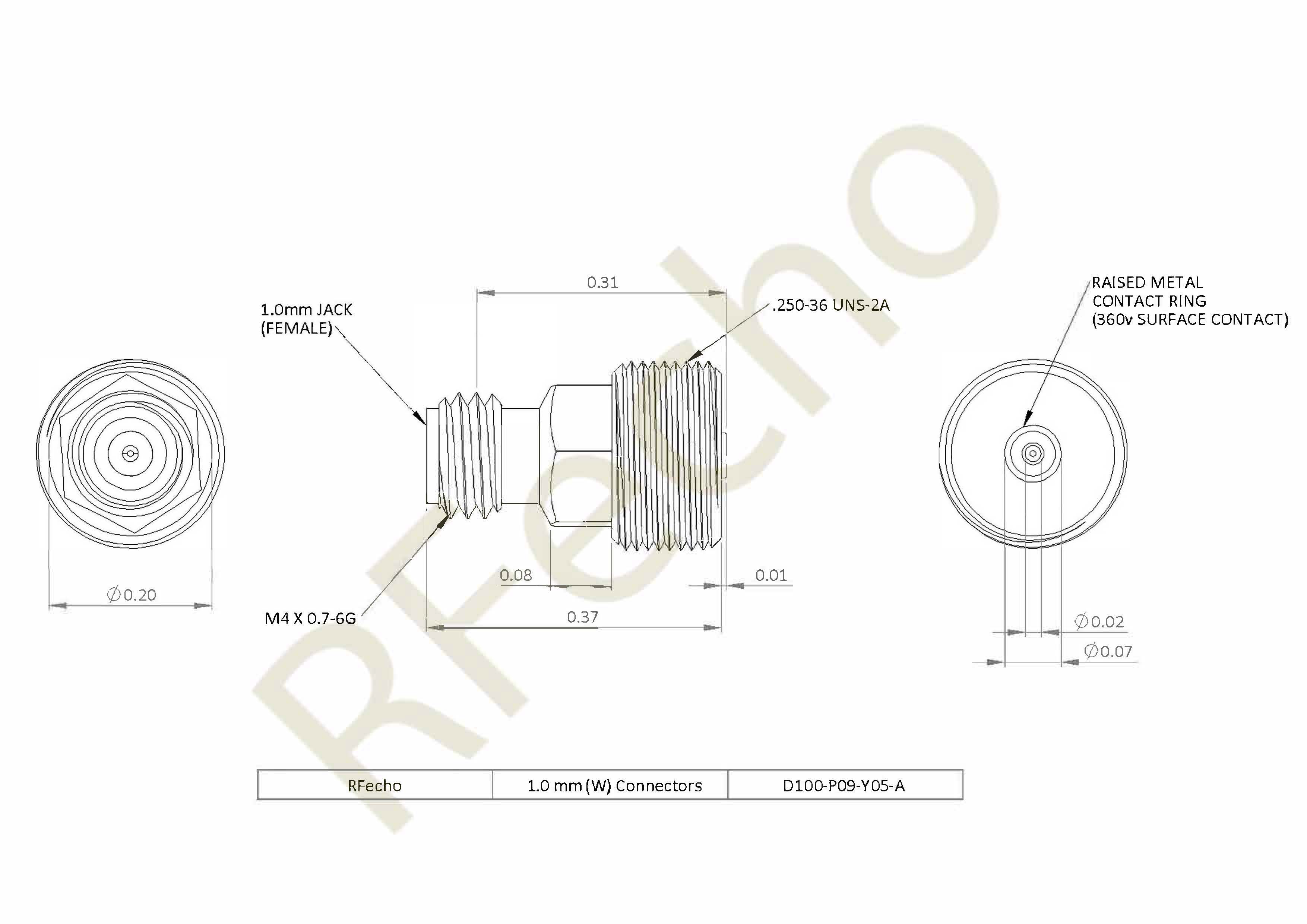

Outline

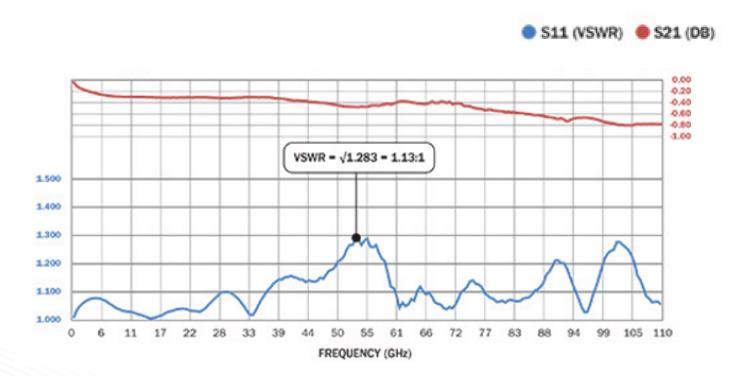

Plot
