1-18 GHz Reflective SP8T PIN Switch
$0
Frequency Range: 1-18 GHz
Switch Design: Reflective
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.0 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1
- Description
- Reviews (0)
Description

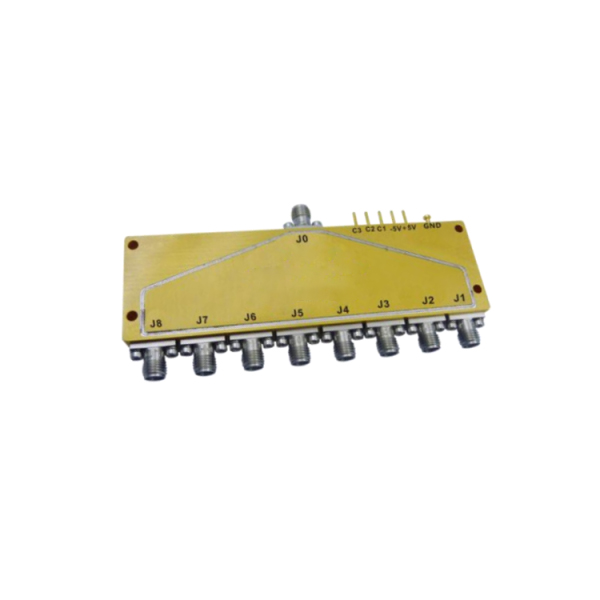

The OSP8TR-1-18GA1 is a broadband reflective single-pole switch with an operating frequency range of 1-18 GHz. It features a maximum insertion loss of 4.0 dB, a minimum isolation of 70 dB, a maximum TTL control switching speed of 150 nsec, a maximum VSWR of 2.0:1. SMA-F connectors, it is made of nickel-plated aluminum, resulting in a lightweight design weighing only 65 grams, it is ideal for automated test systems, electronic warfare, radar, and general RF switching applications.
OSP8TR-1-18GA1 |
|
|
1-18 GHz Reflective SP8T PIN Switch |
|
Property |
Value |
|
Frequency Range(GHz) |
1~18 |
|
Typ. Insertion Loss (dB) |
3.5 |
|
Max. Insertion Loss (dB) |
4 |
|
Typ. VSWR |
1.7:1 |
|
Max. VSWR |
2.0:1 |
|
Min. Isolation(dB) |
70 |
|
Typ. Isolation(dB) |
80 |
|
Typ. Switching Speed(nsec) |
120 |
|
Max. Switching Speed(nsec) |
150 |
|
Max. CW RF Power(dBm) |
30 |
|
Input/Output Connectors |
SMA-Female |
|
Operational Temperature (°C) |
-40~+85 |
|
Storage Temperature (°C) |
-55~+125 |
|
Vibration |
25g rms (15 degree 2KHz) |
|
Humidity |
100% RH at 35degC |
Features |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
Fast Switching Speed |
|
|
Reflective |
|
Applications |
|
|
Wireless Infrastucture |
|
|
5G Communication |
|
|
Test and Measurement Instrument |
|
|
RF Microwave & VSAT |
|
|
Fiber Optics |
|
