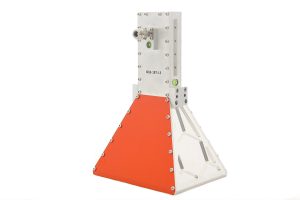

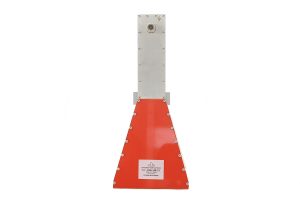

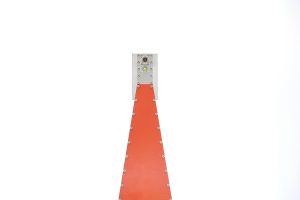

Standard Gain Horn Antenna

RFecho is home to precisely designed and manufactured Standard gain horn antennas. At RFecho, we specialize in producing the highest quality RF antennas for every possible need. It has an extensive variety of applications, as transmitting and sampling antennas. The absolute gain of a standard gain horn is calculable from the flare sizes. also known as microwave horn antenna or gain horn antenna.
RFecho’s standard gain horn antennas are manufactured with the client's need in mind. We know business needs and offer the best when it comes to horn antennas. Our RF gain horn antennas have linear polarization. The material in standard horn antennas is AI or Cu. The impedance used in the horn antenna is 50 ohms. We strive to provide the best possible antenna solutions.

Highlights of RFecho's standard gain horn antennas:

  • Available from 1GHz to 33 GHz
  • Nominal Gain is up to 25 dBi
  • Circular and Square Flanges
  • Gain calibration is accurate to 0.5 dB over full waveguide bandwidth
  • Made with precise dimensional tolerance control.

Standard Gain Horn Antenna or microwave horn antenna is exactness components providing precise and repeatable gain references. It covers the frequency range from 1GHz to 33GHz, the gain is from 10dBi to 25dBi. Waveguide includes WR-112, WR-137, WR-159, WR-187, WR-284, WR-34, WR-340, WR-42, WR-430, WR-51, WR-62, WR-650, WR–75, WR-770 and WR-90.

Standard gain horn antennas are manufactured with highly close tolerances to make sure the precision of every horn manufactured by RFecho. It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance. This is crucial when you require the best quality RF horn antennas. Popular applications include antenna array, ground testing, radio communication in the Radar industry. These SGH Antennas can also be used in spectrum monitoring in signal processing and EMI-EMF-EMC testing and measurements.
