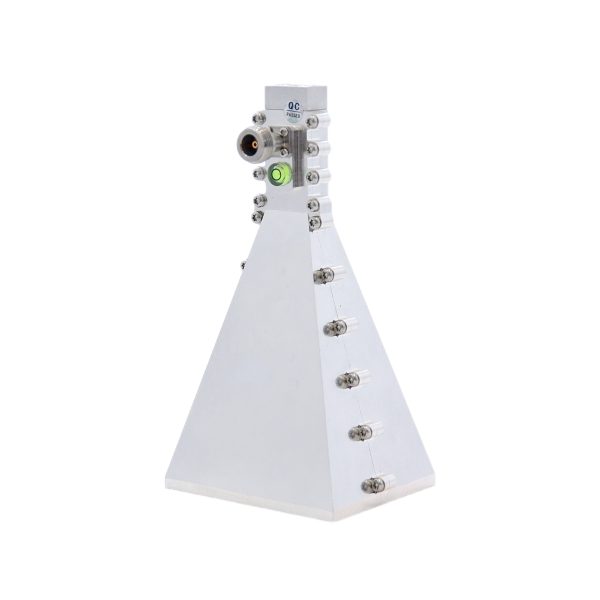

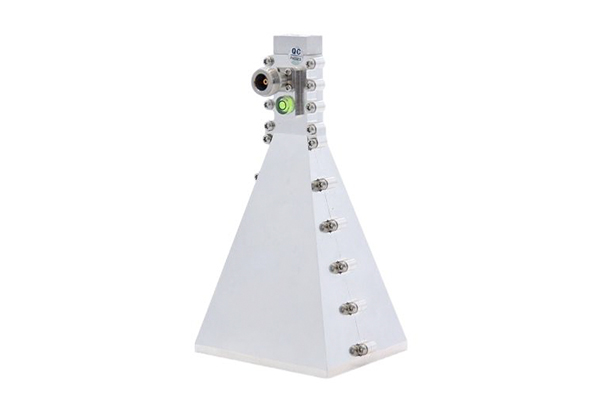

OLB-62-20 pyramidal standard gain horn antenna

0 out of 5

$828

Frequency: 11.9 – 18GHz
Gain: 20dBi.
VSWR: 1.3Typ.
Material: Cu
Waveguide: WR-62
3 dB Beamwidth: H 18° / V 18°
Manufactured using machined aluminum sections
OLB-62-20 Pyramidal standard gain horn antenna has an extremely low reflection coefficient
This Pyramidal standard gain horn antenna can be applied to various microwave fields, including data transmission and reception of satellite signals, supporting communication and control of satellite ground stations.

SKU: OLB-62-20 Categories: RF Antenna, Standard Gain Horn Antenna

Description

OLB-62-20 pyramidal standard gain horn antenna

OLB-62-20

This model OLB-62-20 is a Standard gain horn antenna that offers a gain of 20 dBi across the band. It covers the frequency range from 11.9 GHz to 18 GHz. Standard gain horn antenna OLB-62-20 is known as a waveguide horn having the waveguide of WR-62. It is manufactured using machined aluminum sections, ensuring the pyramidal structure of the antenna, as well as its structural strength and polarization characteristics. Additionally, this antenna has an extremely low reflection coefficient. This antenna can be applied to various microwave fields, including data transmission and reception of satellite signals, supporting communication and control of satellite ground stations. HPBW of OLB-62-20 has an H-plane & V-Plane beam width of H 18° / V 18°. Standard gain horn antenna has a Linear polarization. The Impedance used Standard gain horn antenna is 50 ohms. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR (Voltage Standing Wave Ratio) and enhanced structural strength. The antenna can be equipped with various types of mounts, which allow the antenna to easily rotate between horizontal and vertical polarization. Additionally, we offer a variety of tripods, antenna towers, and test platforms for selection.

Property

Value

Frequency Range

11.9 GHz∼18GHz

Gain(dB)

20

3dBBeamWidth

H18°/V18°

Waveguide

WR-62

Output

N-F/SMA-F

Polarization

Linear

Impedance

50 Ohm

Features

Precisely Machined

Lower sidelobes and symmetrical radiation patterns

Rectangular Waveguide Interface

Applications

Satellite Ground Station Communication

Ideal for high-frequency satellite communications.

Suitable for precise signal testing set ups.

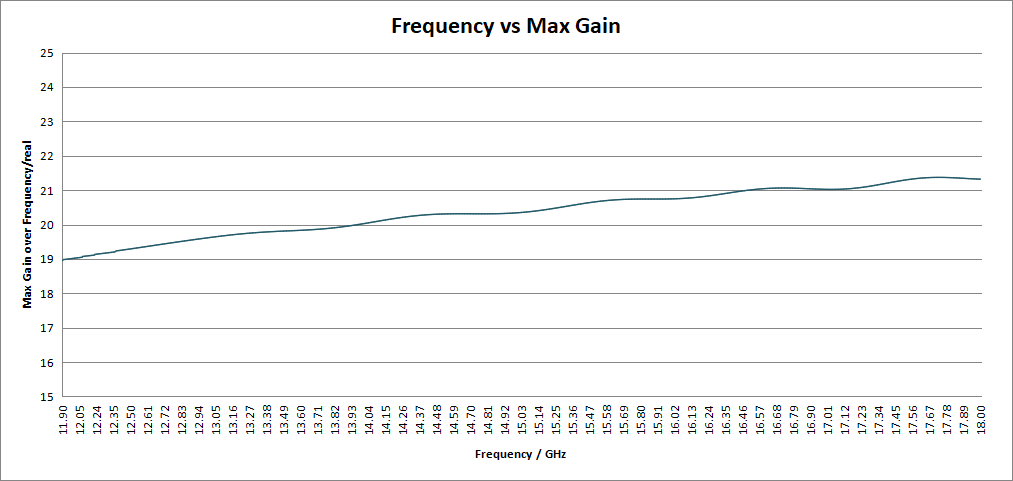

OLB-62-20 pyramidal standard gain horn antenna -

Additional information

Weight 1 kg
Dimensions 26 × 11.5 × 14.5 cm
Min. Frequency (GHz)

11.9

Max. Frequency (GHz)

18

Gain (dBi)

20

HPBW 3 dB Beamwidth

H 18° / V 18°

Waveguide

WR-62

Material

Cu

Polarization

Linear

Impedance (Ω)

50
