TRILOGY Broadband Antenna / Bilogical Antennas / Biconic LogPeriodic Antennas (Hybrid)/ Hybrid LPDA / Hybrid Biconic Logarithmic Periodic Antennas

Biconic Logarithmic Periodic Antennas provides a solution to broadband applications as well as Receive and Transmit Applications.

Known by names such as Bicon, Biconicalog, Biconilog, and Bilogical. For its ultra wideband, the EMC emissions and immunity testing use

single Biconic Logarithmic Periodic Antennas (Hybrid LPDA ) rather than using separate antennas.

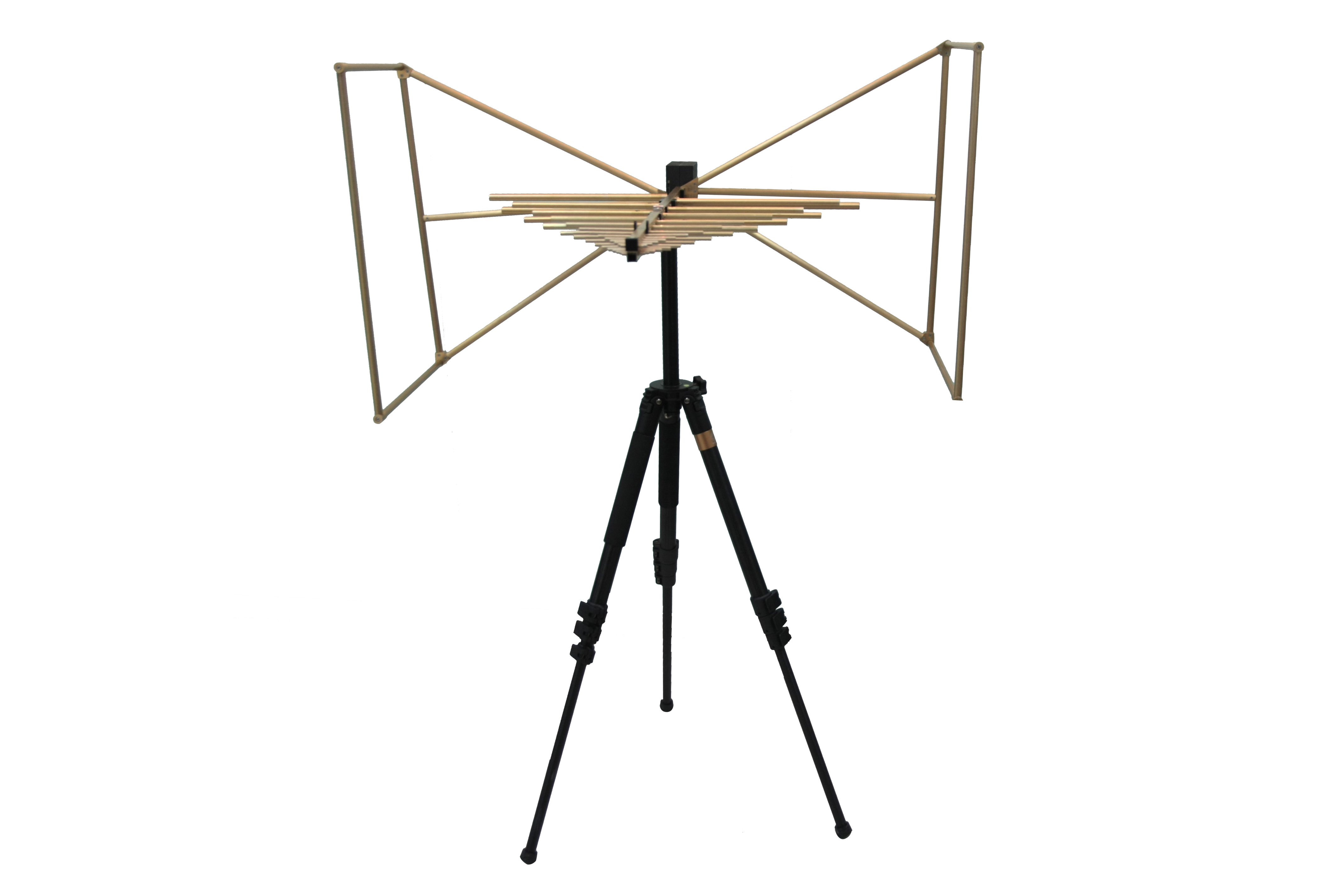

The Biconic Logarithmic Periodic Antennas (hybrid antenna) has two parts: the biconical portion and the log-periodic portion.

It operates at frequencies from approximately 25 MHz to 2GHz up to 7 GHz.

The log-periodic portion working frequencies from 200 MHz to 2 GHz, while the biconical portion covers frequencies from around 25 MHz to roughly 300 MHz.

The Biconic Logarithmic Periodic Antennas (hybrid antenna) uses a pair of triangle shape biconical portions that improve the antenna’s low-frequency response.

The RFecho EMC Solutions Hybrid Log Periodic antenna provides unequaled performance over the operating frequency range of 25 MHz to 7 GHz.

High power handling capability makes it the better choice for EMC immunity tests. It features an unprecedented combination of high efficiency, low VSWR, excellent field uniformity, and small size.
