(-28 – 7)dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna OLP-00240
Frequency Range: 0.025 GHz to 4 GHz
Gain: -28 ~ 7 dBi
Impedance: 50Ω
Maximum Radiated Field: 100 V/m
Connector Type: N-Type, female
Power Handling: 1000 Watts

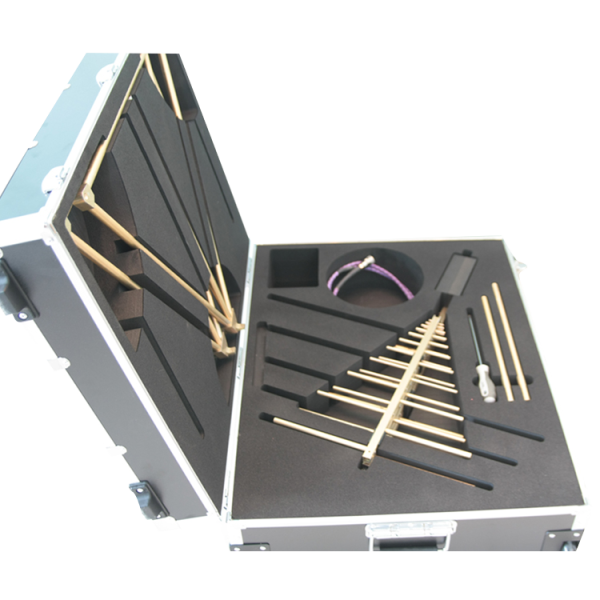

The OLP-00240 features a large number of dipole elements and is suitable for use in both shielded enclosures and outdoor settings.
- Description
- Datasheet

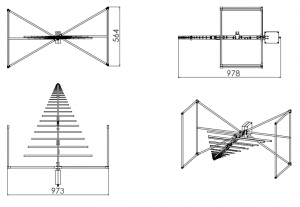

- Outline

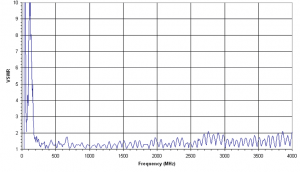

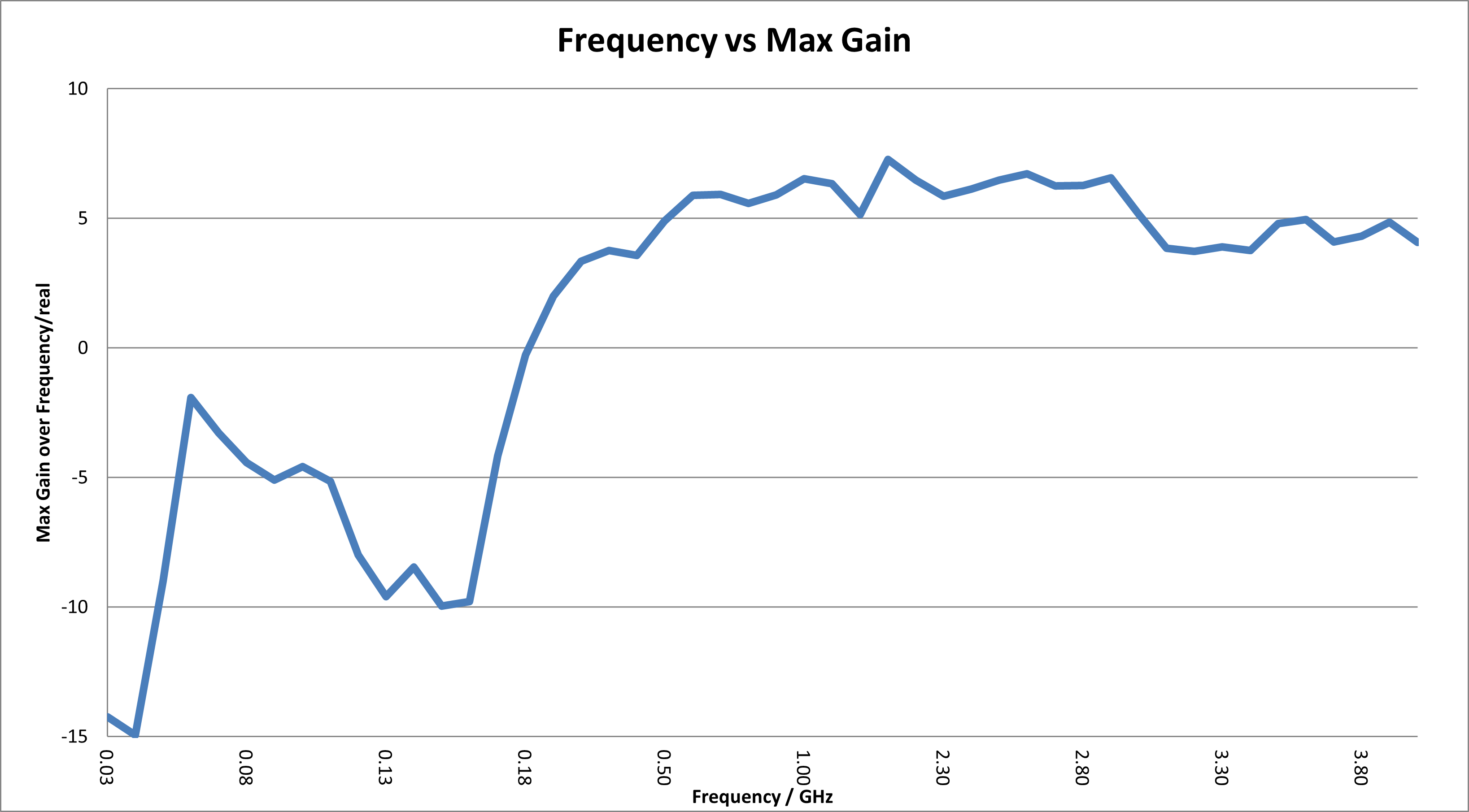

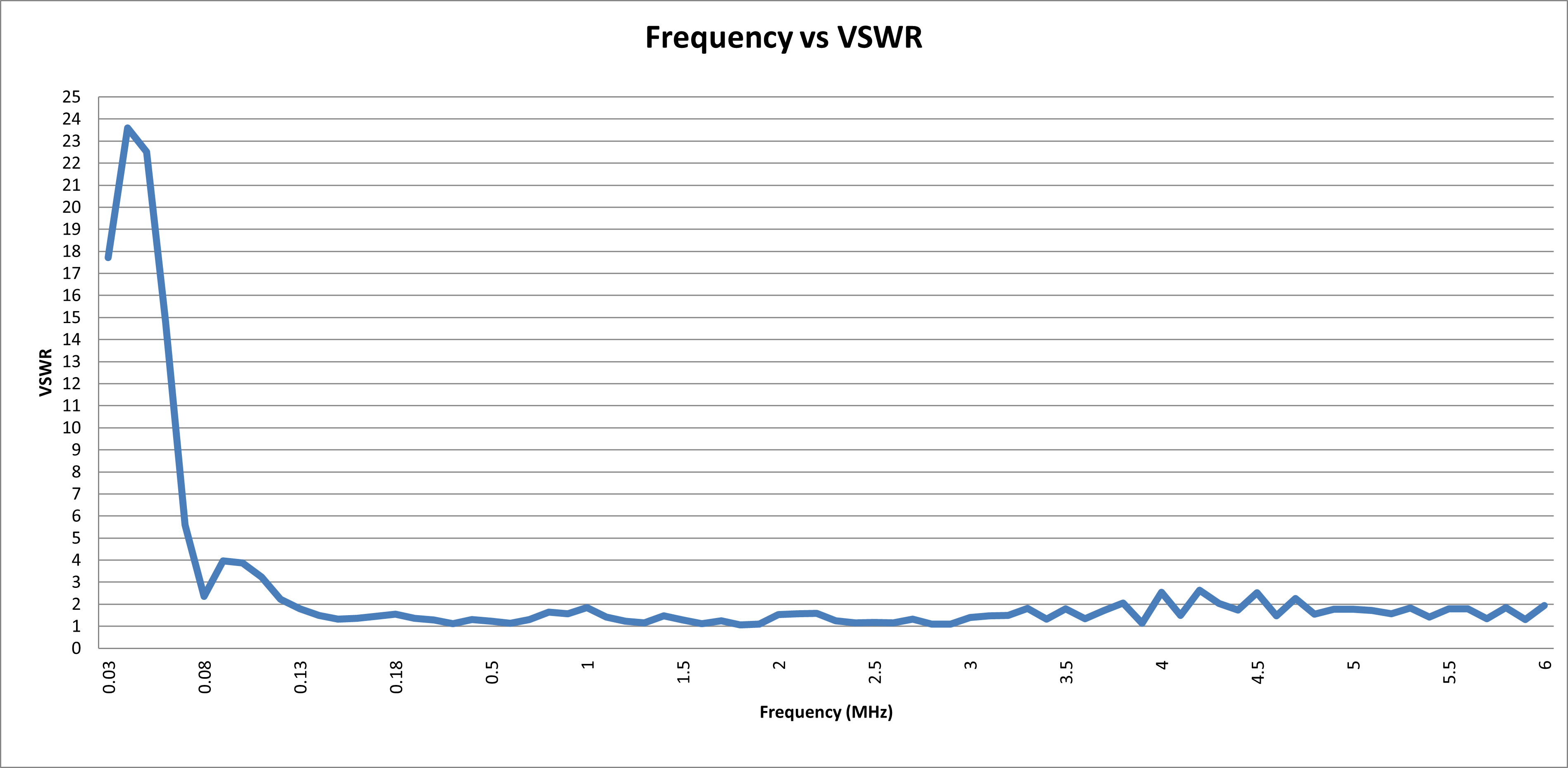

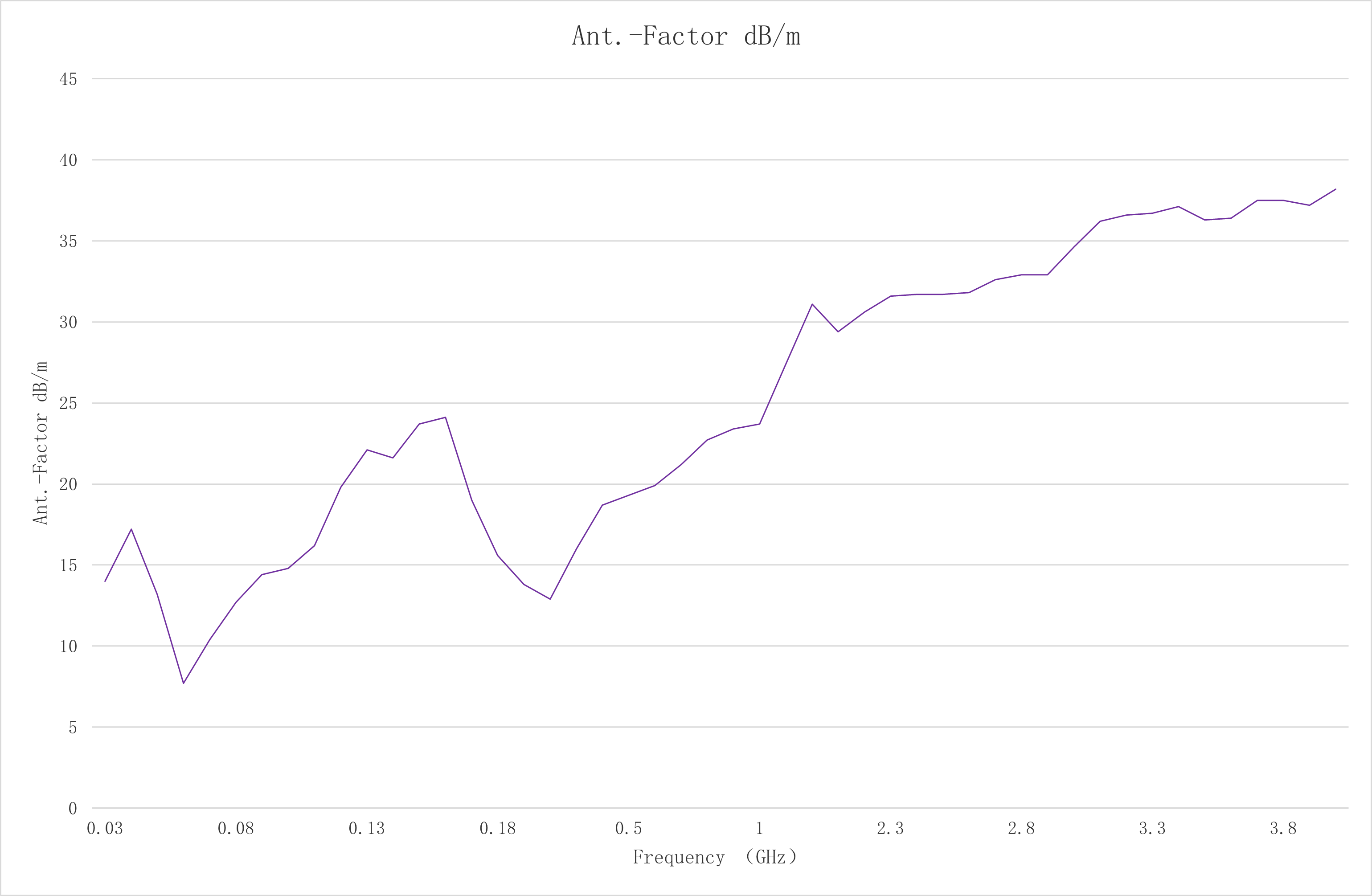

- Plot
Description
| Bilogical Antenna | |
| (-28 – 7)dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna | |
| OLP-00240 | |
| The Bilogical Antenna is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 4000 MHz. OLP antenna offering a large number of dipole elements with frequency range from 25MHz to 4 GHz including the most common RF sources like GSM,5G, Wifietc.. Each antenna goes through rigorous testing in our laboratories before dispatch，Allantennas are developed, individually produced and calibrated。 | |
| Property | Value |
| Min. Frequency (GHz) | 0.025 |
| Max. Frequency (GHz) | 4 |
| Gain(dBi) | -28 – 7 |
| Impedance (Ω) | 50Ω |
| Max Radiated Field | 100 V/m |
| Connection Type | N-Type, female |
| Mounting Base | ¼- 20 Thread,female |
| Features | |
| HybridLog Periodic – Biconical Antenna | |
| Wide Frequency Range of 25 MHz – 4000 MHz | |
| Receive and Transmit | |

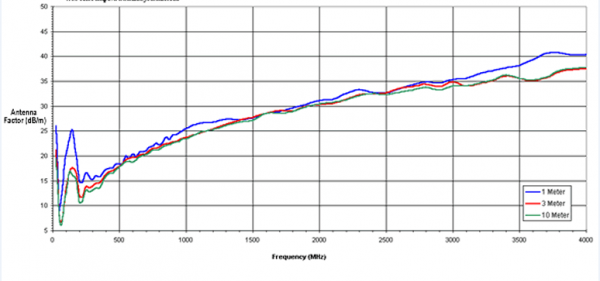

| Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)Rugged Construction | |
| Can be used in the lab | |
| for open-field application | |
| Suitable for field-strength and EMC measurements due to high precision | |
| Compact and sturdy design | |
| Can be used in the lab and for open-field application | |
| Applications | |
| GSM | |
| Wifietc | |
| DECT Digital Enhanced Cordless Telecommunications | |
| 5G | |
