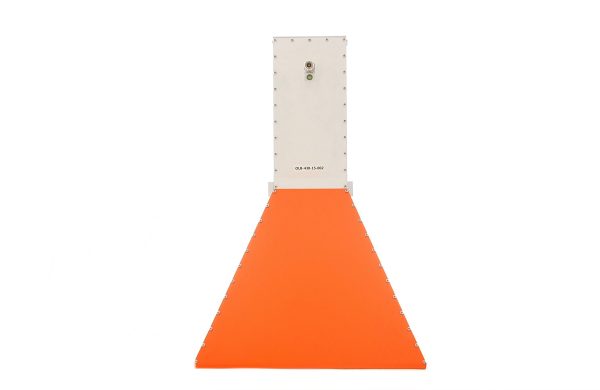

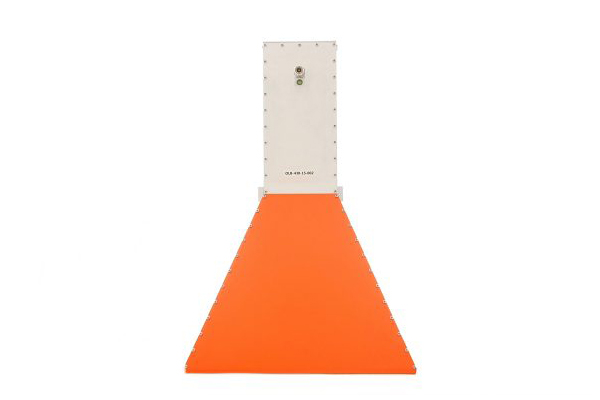

OLB-430-15 Pyramidal Standard Gain Horn Antenna
$1508
Frequency: 1.72 – 2.61 GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-430
3 dB Beamwidth: H 30° / V 30°
OLB-430-15 Pyramidal Standard Gain Horn Antenna can be applied to various microwave fields, including the detecting rain, storms, and other weather phenomena, improving the accuracy of weather forecasts.
- Description
- Datasheet

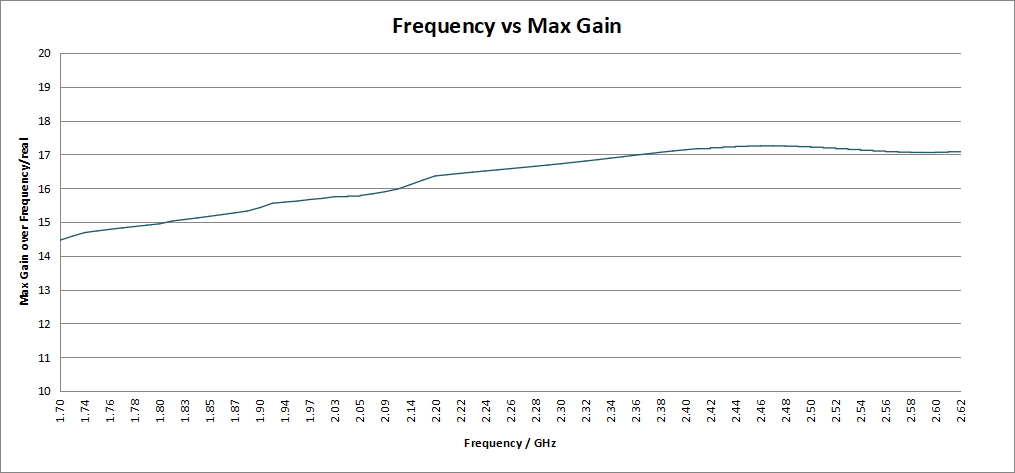

- Characteristics
- Additional information
Description
|
|
OLB-430-15 Pyramidal Standard Gain Horn Antenna |
|
OLB-430-15 |
|
This model OLB-430-15 is a Standard gain horn antenna that offers a gain of 15 dBi across the band. It covers the frequency range from 1.72 GHz to 2.61 GHz. Standard gain horn antenna OLB-430-15 is known as a waveguide horn having the waveguide of WR-430. It is manufactured using machined aluminum sections, ensuring the pyramidal structure of the antenna, as well as its structural strength and polarization characteristics. Additionally, this antenna has an extremely low reflection coefficient. This antenna can be applied to various microwave fields, including the detecting rain, storms, and other weather phenomena, improving the accuracy of weather forecasts. HPBW of OLB-430-15 has an H-plane & V-Plane beam width of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The Impedance used Standard gain horn antenna is 50 ohms. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR (Voltage Standing Wave Ratio) and enhanced structural strength. The antenna can be equipped with various types of mounts, which allow the antenna to easily rotate between horizontal and vertical polarization. Additionally, we offer a variety of tripods, antenna towers, and test platforms for selection. |
|
Property |
Value |
Frequency Range |
1.72GHz∼2.61GHz |
Gain(dB) |
15 |
3dBBeamWidth |
H30°/V30° |
Waveguide |
WR-430 |
Output |
N-F/SMA-F |
Polarization |
Linear |
Impedance |
50 Ohm |
Features |
|
Precisely Machined |
|
Low VSWR?Light Weight |
|
Rectangular Waveguide Interface |
|
Applications |
|
Weather Observation Radar |
|
Ideal for detecting rain and storms. |
|
Suitable for enhancing weather forecasts. |
Additional information
Weight | 6.5 kg |
---|---|
Dimensions | 43 × 35 × 60 cm |
Min. Frequency (GHz) | 1.72 |
Max. Frequency (GHz) | 2.61 |
Gain (dBi) | 15 |
HPBW 3 dB Beamwidth | |
Waveguide | |
Material | |
Polarization | |
Impedance (Ω) |
