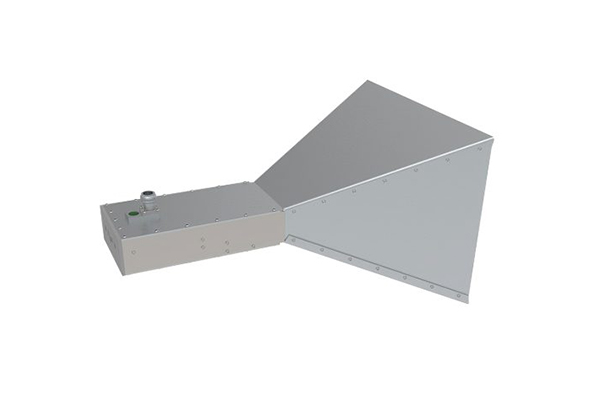

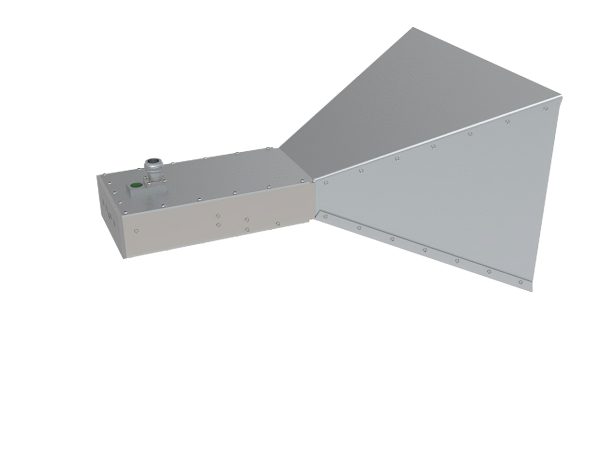

WR-284, 15 dBi Gain, 2.6GHz to 3.95 GHz, Lite Pyramidal Standard Gain Horn Antenna
Frequency: 2.6 – 3.95 GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-284
3 dB Beamwidth: H 30° / V 30°
OLB-284-15 Pyramidal standard gain horn Antenna can be applied to various microwave fields, including high-precision measurements and experiments, such as particle accelerators and astronomical observations.
- Description
- Datasheet
- Reviews (0)
Description
OLB-284-15-L is a lite version of OLB-284-15 that offers a gain of 15 dBi across the band. Featuring an extremely low reflection coefficient and applicable in various microwave fields, including high-precision measurements and experiments, such as particle accelerators and astronomical observations. HPBW of OLB-284-15-L has an H-plane & V-Plane beam width of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The Impedance used Standard gain horn antenna is 50 ohms. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR and enhanced structural strength.
OLB-284-15-L | |
| WR-284, 15 dBi Gain, 2.6GHz to 3.95 GHz, Lite Pyramidal Standard Gain Horn Antenna | |
Property | Value |
| Min. Frequency (GHz) | 2.6 |
| Max. Frequency (GHz) | 3.95 |
| Gain (dBi) | 15 |
| Flange | UG-53/U, UG-54A/U |
| HPBW 3 dB Beamwidth | H 30° / V 30° |
| Waveguide | WR-284 |
| Material | Al |
| Polarization | Linear |
| Impedance(Ohm) | 50 |
Features | |
| Light Weight and Precisely Machined | |
| Low VSWR | |
| Linear Polarization | |
| Lower sidelobes and symmetrical radiation patterns | |
Applications | |
| Scientific Research | |
| Ideal for preciselab measurements and tests. | |
| Suitable for use in particle accelerators. | |
