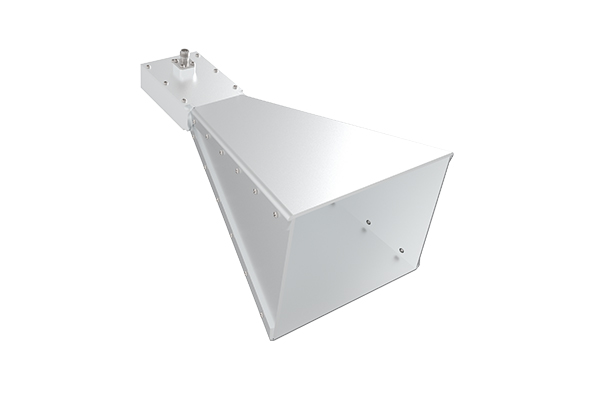

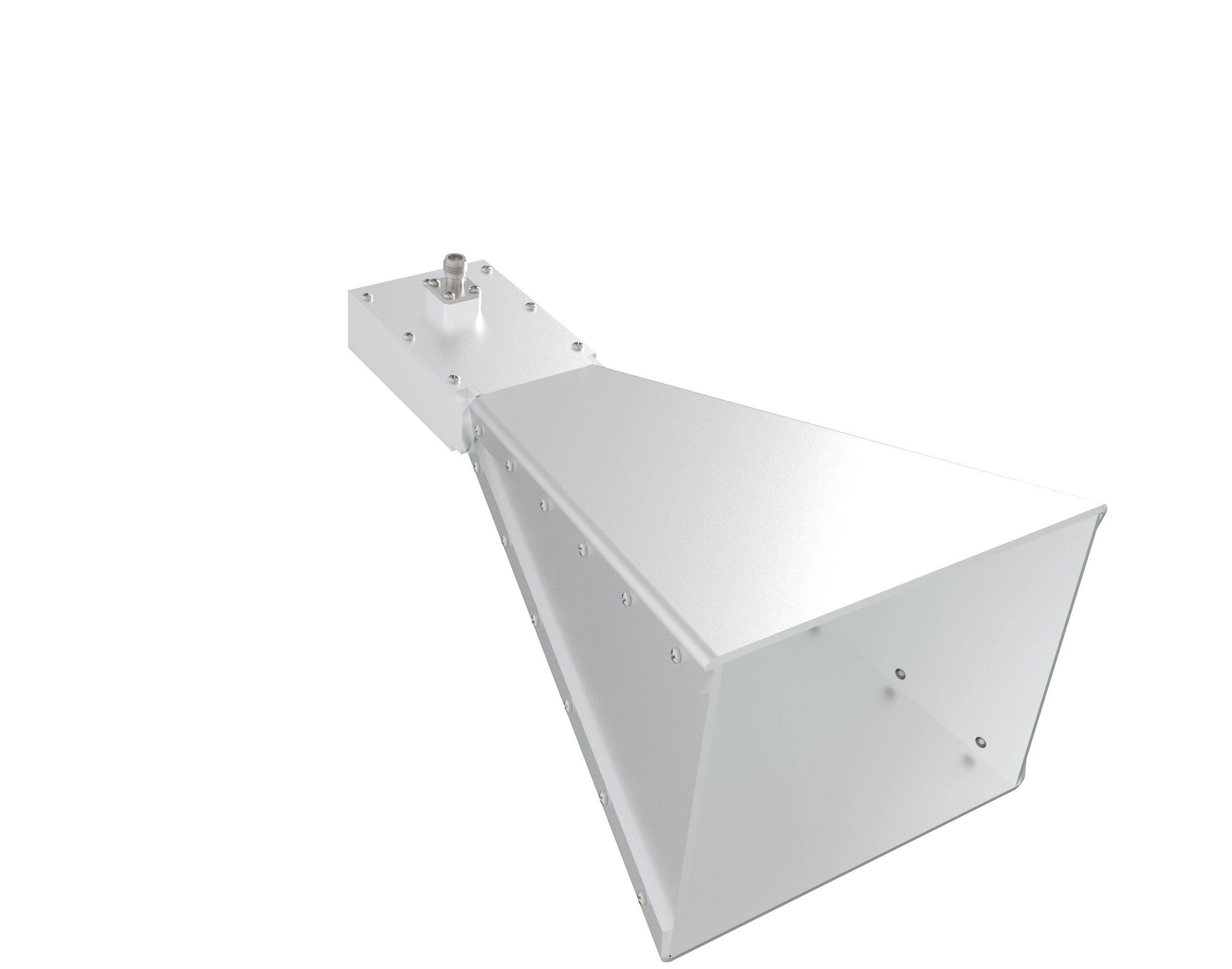

15 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide, Lite Standard Gain Horn Antenna
Frequency: 5.9-8.2GHz
Gain: 15dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: H 30° / V 30°
Waveguide: WR-137
Material: AI
Light Weight
OLB-137-15-L Standard Gain Horn antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups.
- Description
- Datasheet
- Reviews (0)
Description
OLB-137-15 -L is a Lite version of the OLB-137-15, that offers the gain of 15 dBi across the band and a square cover flange. It is manufactured precisely providing accurate, consistent, and reliable performance. It is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-137-15-L has an H-plane & V-Plane beamwidth of H 30°/ V 30°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI.
OLB-137-15-L | |
| 15 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide, Lite Standard Gain Horn Antenna | |
Property | Value |
| Min. Frequency (GHz) | 5.9 |
| Max. Frequency (GHz) | 8.2 |
| Gain (dBi) | 15 |
| Flange | UG-344/U,UG-343A/U |
| HPBW 3 dB Beamwidth | H 30°/ V 30° |
| Waveguide | WR-137 |
| Material | AI |
| Polarization | Linear |
| Impedance(Ohm) | 50 |
Features | |
| Low VSWR | |
| Light Weight | |
| Linear Polarization | |
| Low Return Loss | |
| Lower sidelobes and symmetrical radiation patterns | |
Applications | |
| Antenna Ranges | |
| Antenna Gain Measurements | |
| Array Elements | |
