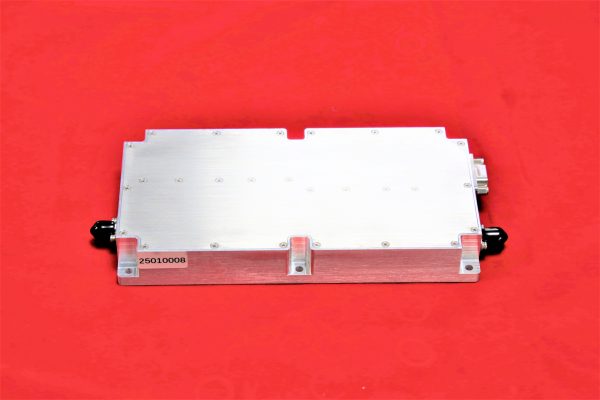

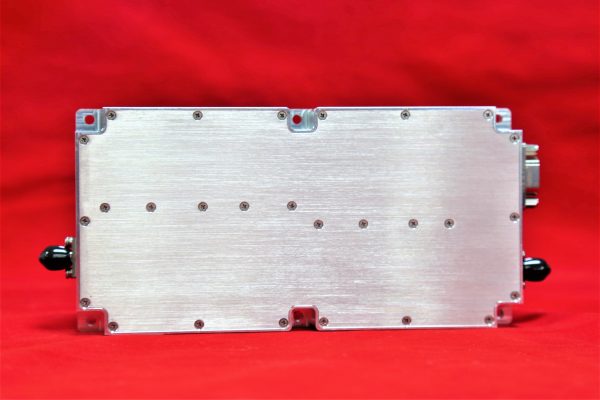

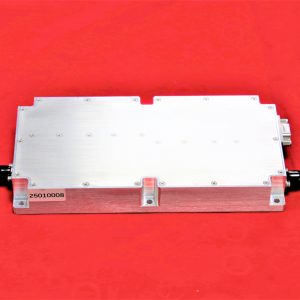

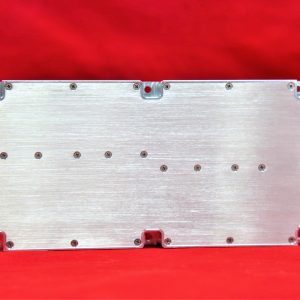

1-6GHz 50W Power Amplifier
$0
Frequency Range: 1-6GHz.
Gain:47~50dBm
Input VSWR: 1.8:1
Output VSWR: 2:1
It have the characteristics of temperature protection, Gain stability, and Gain adjustment.
- Description

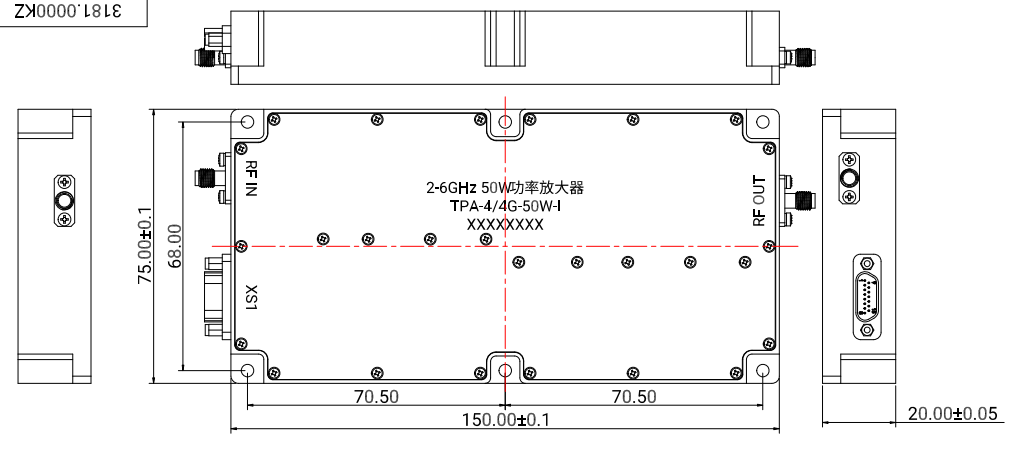

- Outline
- Additional information
- Reviews (0)
Description
In here you can write some description if you have for the product
PA-1-6G-50I |
|
|
1-6GHz 50W Power Amplifier |
|
Property |
Value |
|
Min. Frequency (GHz) |
1 |
|
Max. Frequency (GHz) |
6 |
|
Max. Power Gain (dBm) |
50 |
|
Input VSWR |
1.8:1 |
|
Output VSWR |
2.0:1 |
|
Output power(W) |
50 |
|
Operating Voltage |
+28V |
|
RF Connector |
SMA |
|
DC Connector |
J30J-15ZK |
Features |
|
|
High Power Gain Stability |
|
|
Low Input and Output VSWR |
|
|
Stable operation in harsh conditions |
|
Applications |
|
|
Wireless Infrastructure |
|
|
Test and measurement Instrument |
|
|
Fiber Optics |
|
|
5G Communication |
|
|
RF Microwave & VSAT |
|
Additional information
| Min. Frequency (GHz) | 1 |
|---|---|
| Max. Frequency (GHz) | 6 |
| Max. Power Gain (dBm) | 50 |
| Input VSWR | 1.8:1 |
| Output VSWR | 2.0:1 |
| Output power(W) | 50 |
| Operating Voltage | +28V |
| RF Connector | SMA |
| DC Connector | J30J-15ZK |
