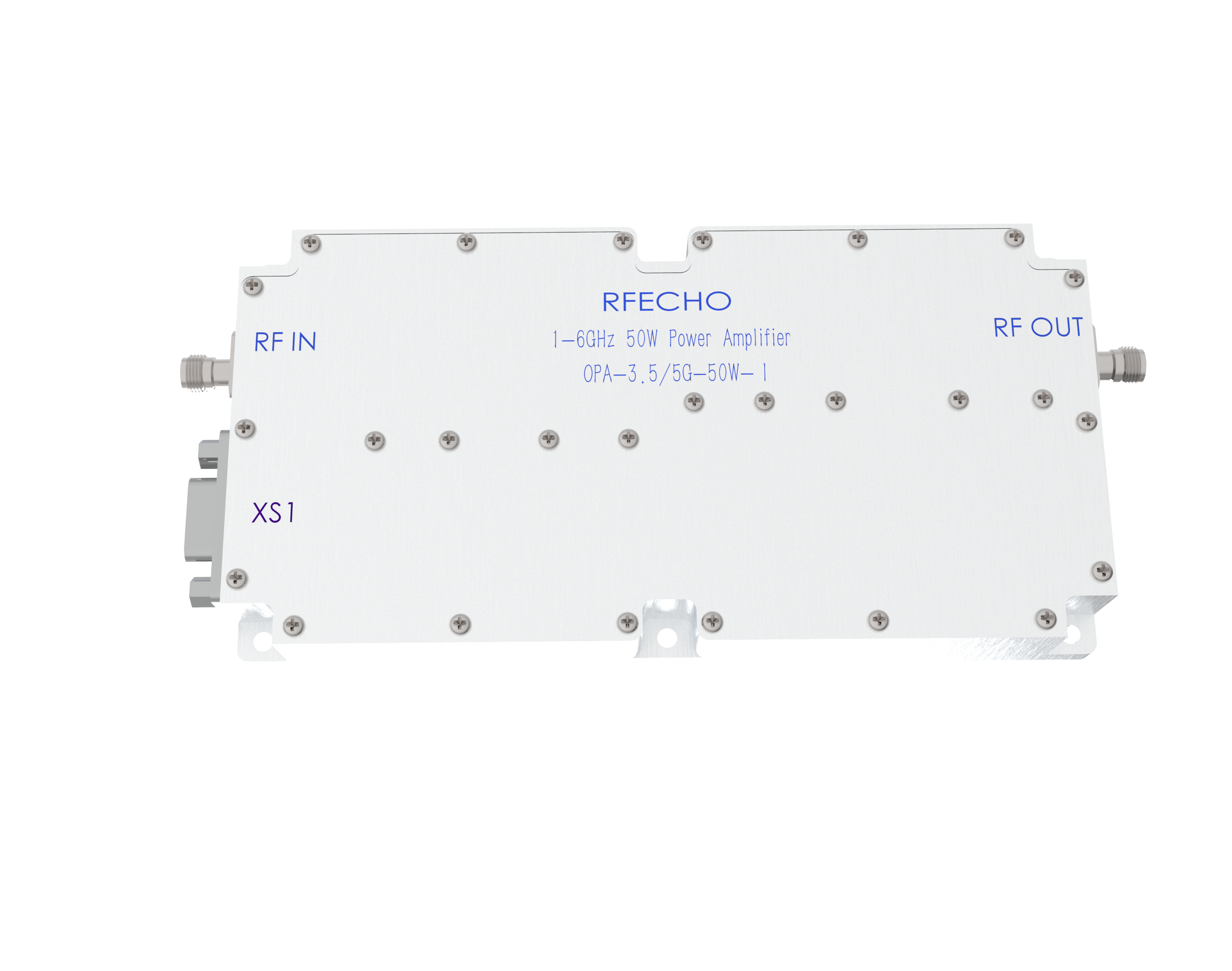

1-6GHz 50W Power Amplifier
$0
Frequency range: 1GHz to 6GHz
Gain: ≥47dB
Operating Voltage: +28V
Operating current: ≤9A
Clutter rejection: ≥60dBc
Connector Type: 2 SMA-K
Output saturated power: ≥47dBm
Anti-burnout input power: ≤+10dBm
Operating Temperature: -40℃ to +55℃
It have the characteristics of temperature protection, Gain stability, and VCO frequency sweep.
- Description
- Datasheet

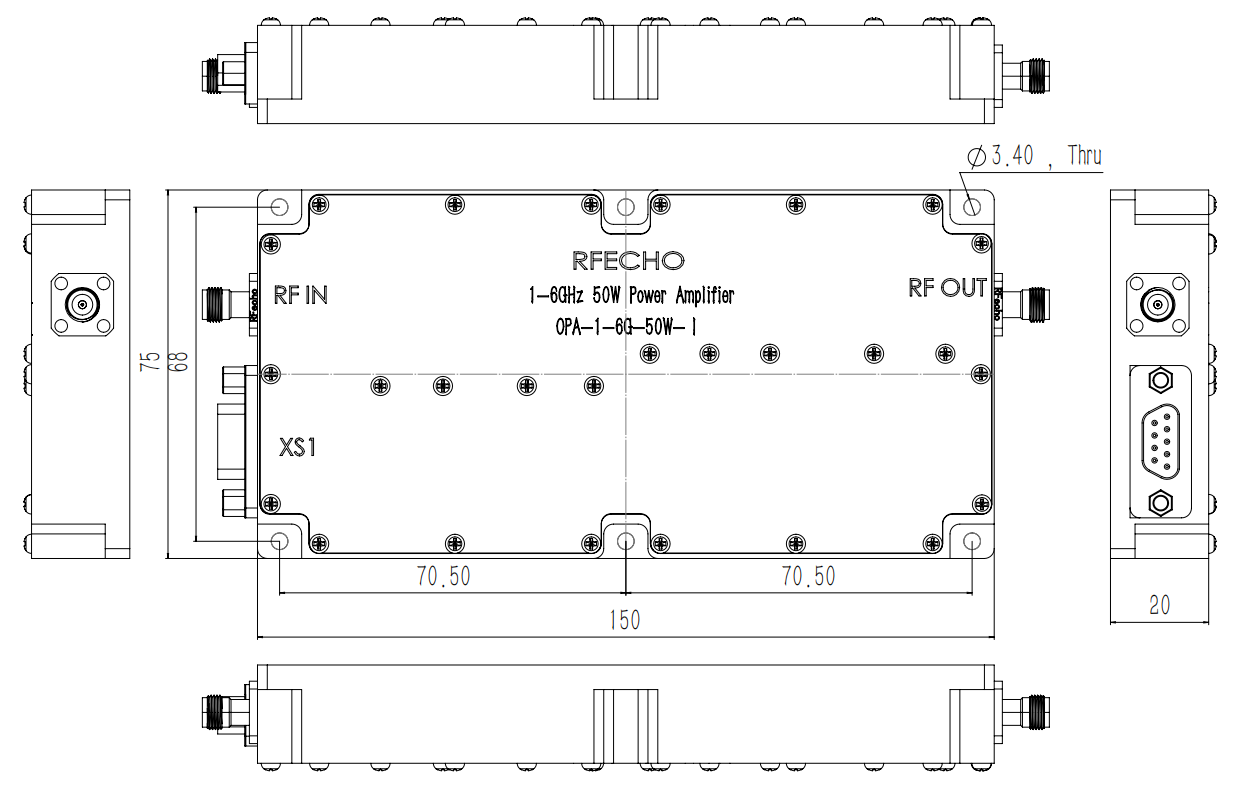

- Outline
- Reviews (0)
Description
The RFECHO Power Amplifier operates in the 1-6GHz range, delivering excellent linear amplification of input signals across a wide dynamic range within its frequency band.Wide-band medium-power amplifiers, once mainly military, now extend to civilian use, with broad prospects in wireless communication, ITS, mobile phones, DBS, satellite networks, 5G, RF microwave & VSAT, test instruments, GPS, and millimeter – wave collision avoidance systems. Broadband also matters in optical transmission.Strong demand exists in wireless communication, electromagnetic compatibility testing, and research. These fields have varied needs, with communication systems requiring special attention to broadband low-noise performance and key power amplifier indicators.
OPA-1-6G-50W-1 |
|
|
1-6GHz 50W Power Amplifier |
|
Property |
Value |
|
Min. Frequency (GHz) |
1 |
|
Max. Frequency (GHz) |
6 |
|
Gain (dBi) |
≥47dB |
|
Working Voltage (V) |
28 |
|
Connector |
2-SMA-K |
|
Clutter rejection |
≥60dBc |
|
Operating current |
≤9A |
|
Output saturated power |
≥47dBm |
|
Anti-burnout input power |
≤+10dBm |
|
Operating Temperature |
-40℃ to +55℃ |
Features |
|
|
High Power Gain Stability |
|
|
Low Input and Output VSWR |
|
|
Stable operation in harsh conditions |
|
Applications |
|
|
Wireless Infrastructure |
|
|
Test and measurement Instrument |
|
|
Fiber Optics |
|
|
5G Communication |
|
|
RF Microwave & VSAT |
|
