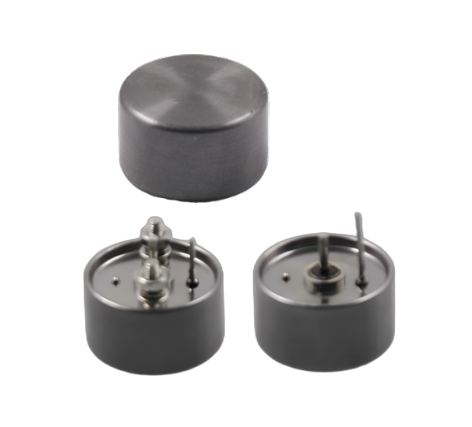

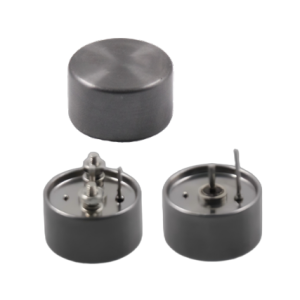

10 V / 3000 uF CAK36C Hermetically Sealed High-Energy Composite Tantalum Capacitor
CAK36C-10-3000-K-CA1-A
Rated Voltage (Ur): 10 V
Category Voltage (Uc): 6 V
Surge Voltage (Us): 11 V
Capacitance (CR): 3000 uF
Capacitance Tolerance: +/-10% (Code K)
Case Code: CA1 / Size: 12 x 8
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The CAK36C-10-3000-K-CA1-A is a hermetically sealed high-energy composite tantalum electrolytic capacitor rated at 10 V and 3000 碌F with tolerance code K (+/-10%). The rated voltage is derated to 6 V for high-temperature operation, with a surge voltage of 11 V. Key electrical limits include tan未 of 120% max at 100 Hz, ESR of 0.42 惟 max at 1 kHz, DC leakage current of 50 uA max at 25degC and 400 / 500 uA max at 125degC/150degC, and impedance of 10 惟 max at 100 Hz. Capacitance change is -80 / +85 / +90% at -55degC and +60%/+70% at 125degC/150degC. The device operates from -55degC to +150degC, with voltage derating required above +85degC, and conforms to GJB733B-2011 and Q/TCPC2001-2024.
