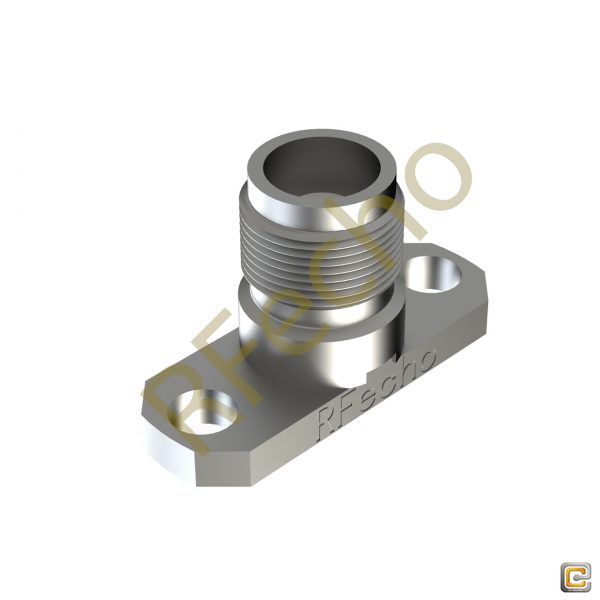

2.92mm 40 GHz, 0.012″ Accept Pin Diameter, 2 Hole .625″ Long Mounting Flange Female Connector
This Model D360-P12-F06 is a Female connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB.
2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is 2 Hole .625″ Long mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.012″inches.
- Description
- Reviews (0)
Description
|
2.92mm (K) Connectors |
|
|
2.92mm 40 GHz, 0.012″ Accept Pin Diameter, 2 Hole .625″ Long Mounting Flange Female Connector |
|
|
D360-P12-F06 |
|
|
This Model D360-P12-F06 is a Female connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB. 2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is 2 Hole .625″ Long mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.012″inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
40 |
|
Flange (inch) |
.625″ Long |
|
Mounting |
2 Hole |
|
Accept Pin Diameter (inch) |
0.012″ |
|
Gender |
Female |
|
Features |
|
|
Low VSWR |
|
|
Free through 40 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|
