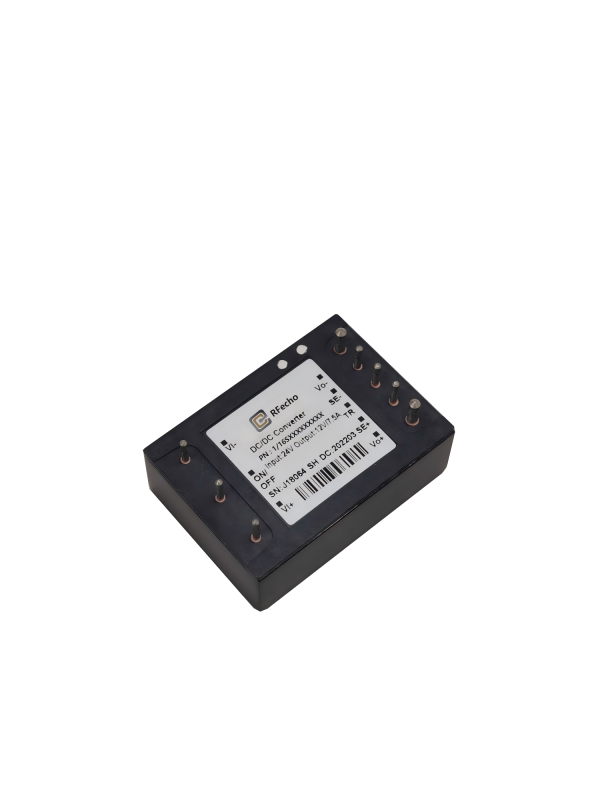

9-36V Input,5V/10A Output Sixteenth Brick
$208
Wide input voltage range: 9 – 36V
High Efficiency: 91.5% at 5V/10A output
Optimal thermal performance
Remote sense, On/Off control,
Over-voltage, over-current, short-circuit, and over-temperature protection
Monotonic start-up into pre-biased load
1,500V isolation voltage
- Description
- Datasheet
- Reviews (0)
Description
116SA18050010 have high efficiency and power density, with no minimum load requirement, maintain excellent performance even with large output capacitors. Built-in input under-voltage lockout, output over-voltage protection, output over-currentshort-circuit protection, and over temperature protection are included. A fixed switching frequency of 180-350kHz provides predictable EMI. Filters or EMI application circuitry are available to meet high-reliability EMI requirements. The rugged design is suitable for harsh environments and meets high-reliability standards.
116SA18050010 |
|
|
9-36V Input,5V/10A Output Sixteenth Brick |
|
Property |
Value |
|
Continuous Input (Vdc) |
-0.5 to 40 |
|
Transient Input Voltage (<100ms continuous operating) |
50 |
|
Nominal Input Voltage(V) |
18-36 |
|
Output Voltage(V) |
12 |
|
Enabling Logic options |
Positive |
|
Rated Output Current(A) |
5 |
|
Lout(A) |
5-10/10-15 |
|
I/O Isolation Voltage (for 1 minute)(Vdc) |
1500 |
|
Package Size |
Sixteenth Brick |
Features |
|
|
Wide input voltage range |
|
|
High Efficiency |
|
|
Optimal thermal performance |
|
|
Remote sense, OnOff control |
|
|
Over-voltage, over-current,short-circuit, and over temperature protection |
|
|
Monotonic start-up into pre-biased load |
|
|
1500V isolation voltage |
|
Applications |
|
|
For High Reliability Applications |
|
