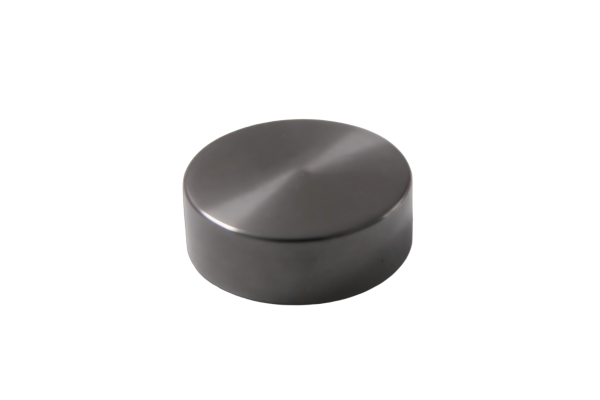

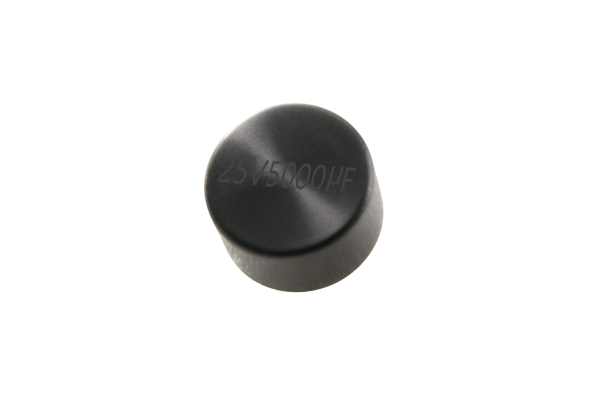

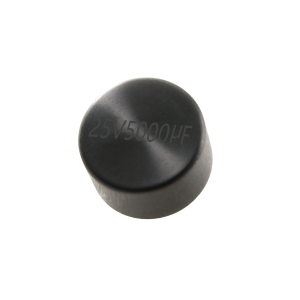

High energy tantalum hybrid capacitors 25V 5000uF
Capacitance: 5000uF
Voltage: 25V
Max ESR: 0.3Ω
High Storage Capacity
Gas tight and compact design
Screws to mount
- Description
- Reviews (0)
Description
The OTC-25V5000uF-W is a hybrid capacitor composed of tantalum electrolytic and electrochemical capacitors, known for its small size and high energy storage capacity. The electrical performance is excellent and stable, with high reliability and long life, as well as a high energy density per unit volume. In energy conversion circuits, it can function like a battery, providing functions such as energy storage and power-off delay.
OTC-25V5000uF-W |
|
|
High energy tantalum hybrid capacitors 25V 5000uF |
|
Property |
Value |
|
Rated Voltage(V) |
25 |
|
Derated Voltage(V) |
15 |
|
Surge Voltage(V) |
27.5 |
|
Rated Capacitance(uF) |
5000 |
|
tg&Max(%)100Hz@25°C |
60 |
|
ESR Max(Ohm) 1KHz@25°C |
0.3 |
|
Max. Leakage Current(uA) |
150@25°C,900@85°C-125°C |
|
Max. Impedance(Ohm) 100Hz@-55°C |
8 |
|
Change in Capacitance(%) |
-75@-55°C,+150@85°C |
Features |
|
|
High Storage Capacity |
|
|
Gas tight and compact design |
|
|
Cylindrical in shape |
|
|
Bidirectional lead out and polarity |
|
Applications |
|
