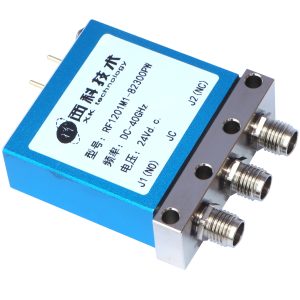

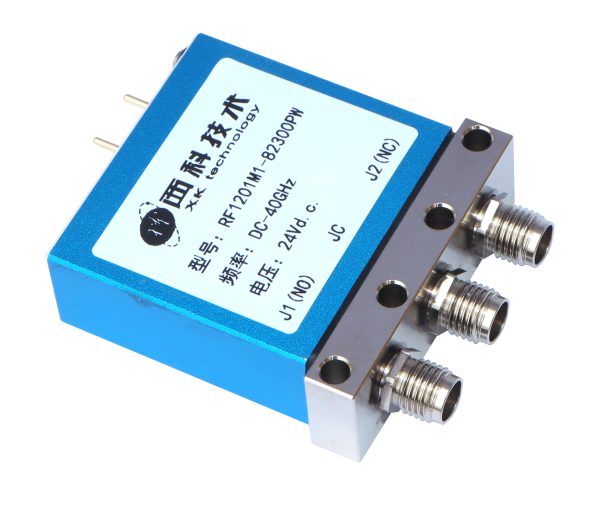

RF1201M1-82300PW
$2800
Frequency: DC~40GHz, 2.92 Connector, Excitation Voltage: 24Vd.c., Single Pole Double Throw (SPDT) Non-Self-Locking RF Relay with Solder Pins.
- Description
- Additional information
- Reviews (0)
Description
Frequency: DC~40GHz, 2.92 Connector, Excitation Voltage: 24Vd.c., Single Pole Double Throw (SPDT) Non-Self-Locking RF Relay with Solder Pins.
RF1201M1-82300PW |
|
|
RF1201M1-82300PW |
|
Property |
Value |
|
VSWR |
1.8 |
|
Insertion loss |
0.80db |
|
Isolation |
55dB |
|
Power |
10W |
|
life span |
10,000,000 mechanical lifetimes |
Features |
|
|
Small size |
|
|
Low fever |
|
|
Low VSWR |
|
|
Low insertion loss |
|
|
High isolation |
|
|
Large power tolerance |
|
|
Long service life |
|
|
Good reproducibility |
|
Applications |
|
|
High-speed cable testing |
|
|
RF matrix switches |
|
|
Radar antenna switching |
|
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 14.7 × 11.9 × 6.1 cm |
| VSWR | 1.8 |
| Insertion loss | 0.80db |
| Isolation | 55dB |
| Power | 10W |
| life span | 10,000,000 mechanical lifetimes |
