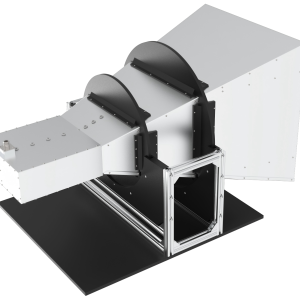

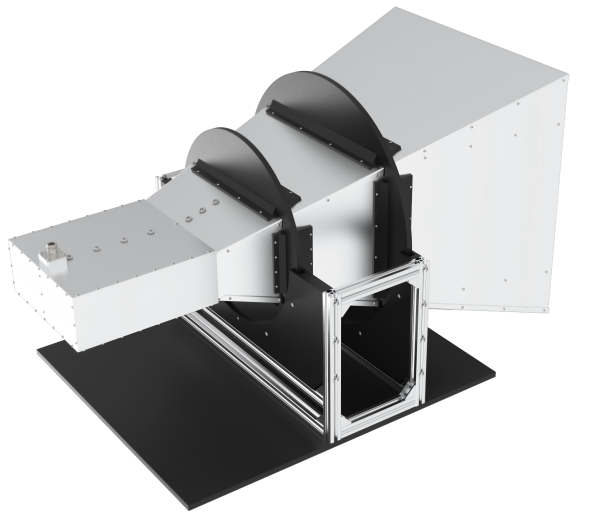

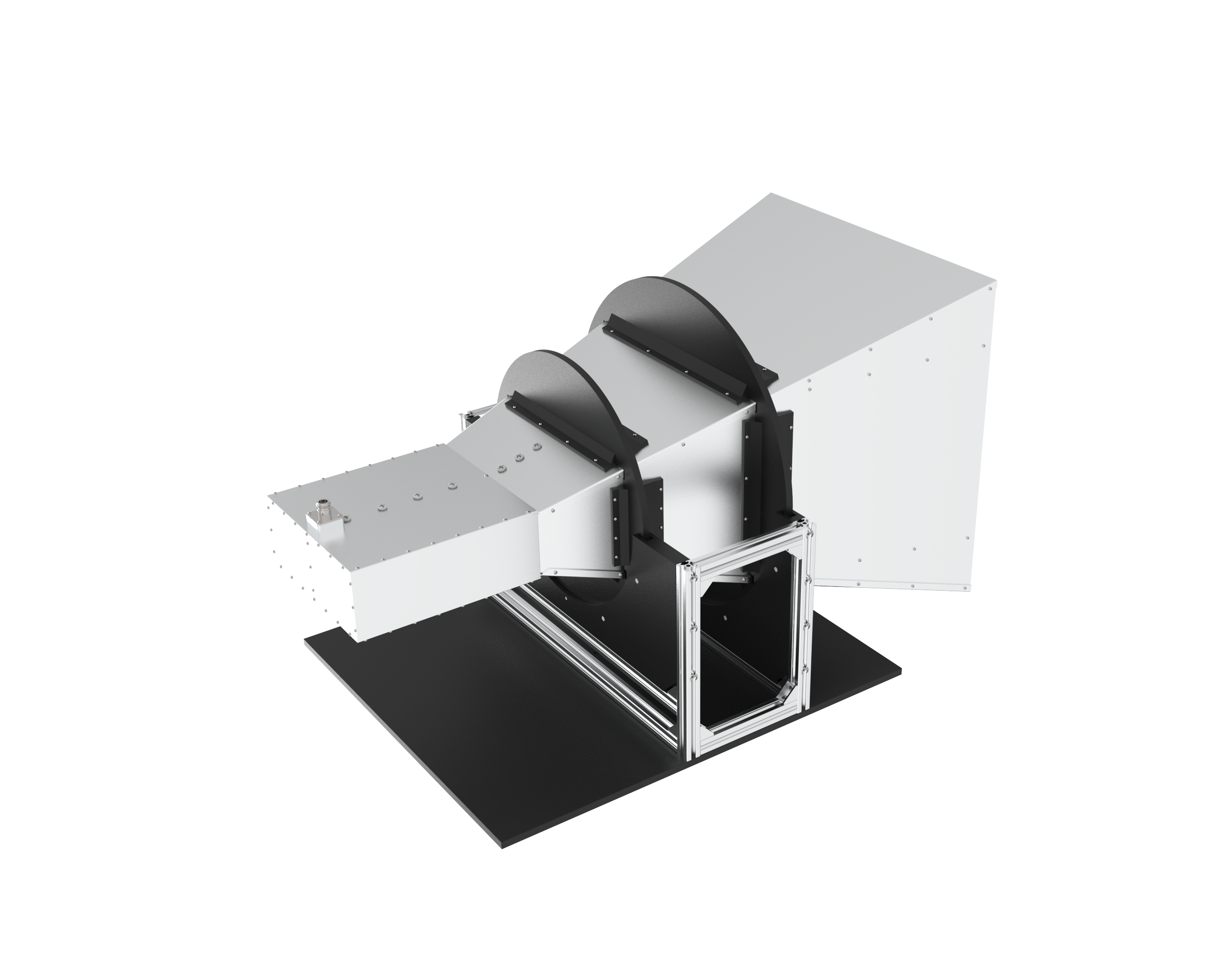

Ultra wide-band dual ridged horn antenna 0.8-6.2GHz
$0
Frequency range: 0.8-6.2GHz
Gain: 11-20dBi.
Max Power: 1.7kW @1GHz.
VSWR��2.3:1.
Wide bandwidth.
Linear Polarized with high polarization purity
OBH-860HG Ultra wide-band dual ridged horn antenna stands out for EMC/EMI.
- Description

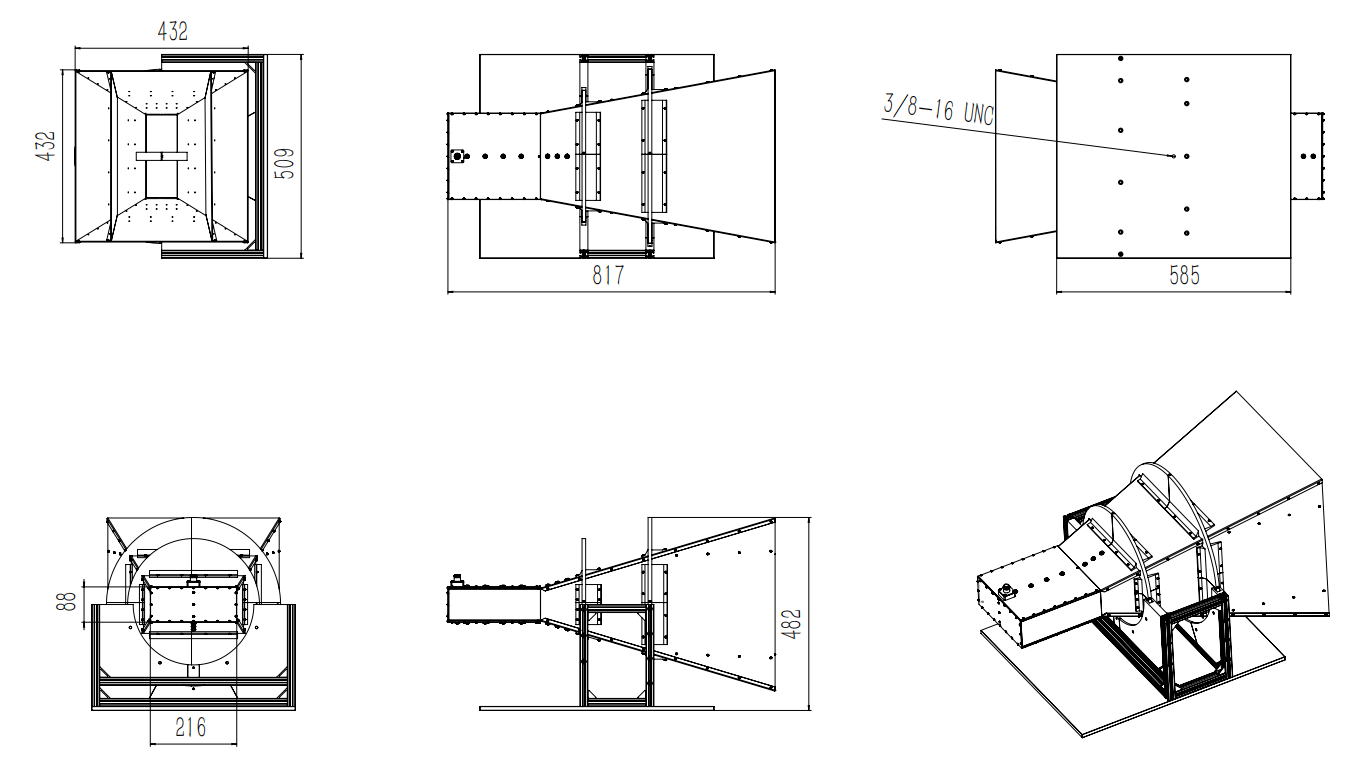

- Outline

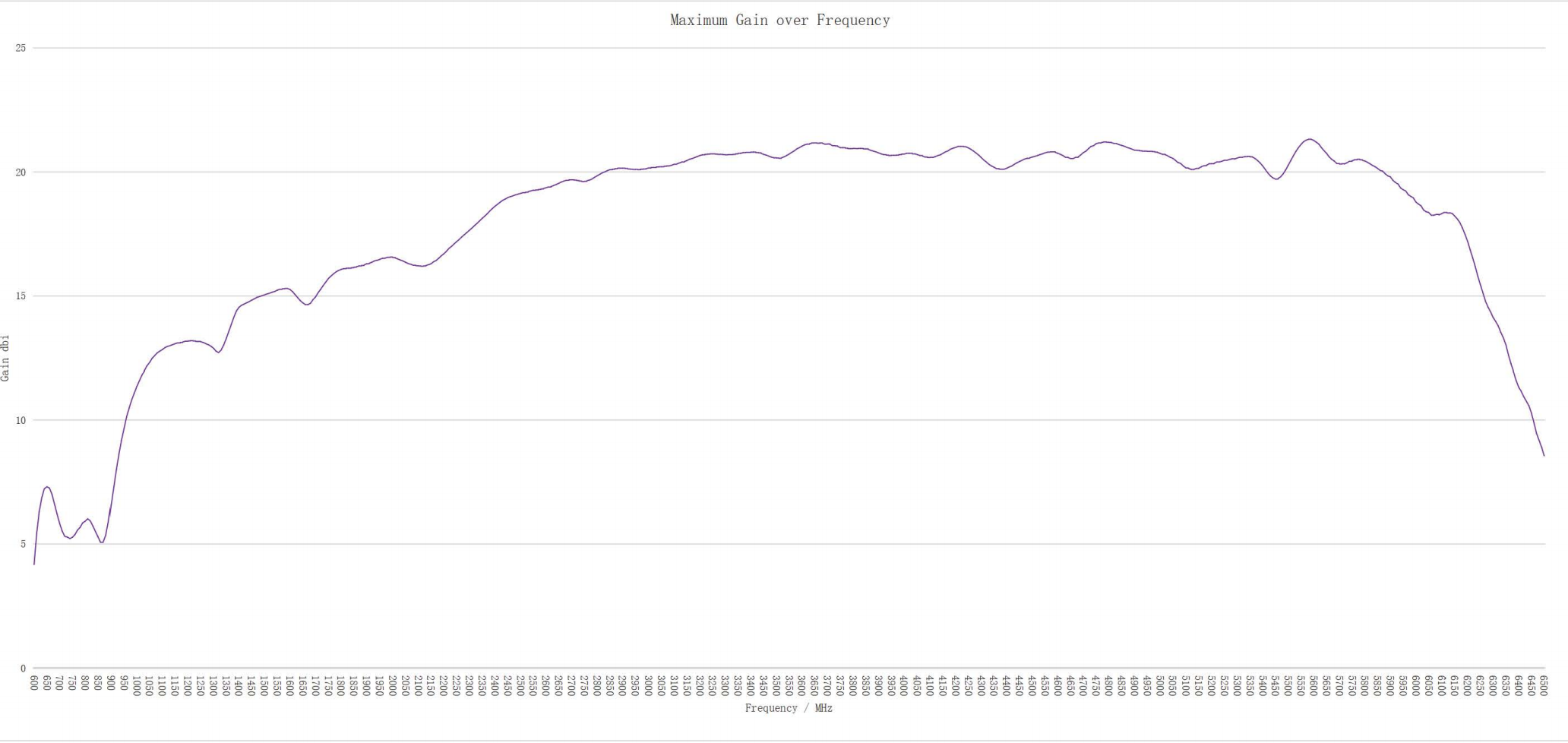

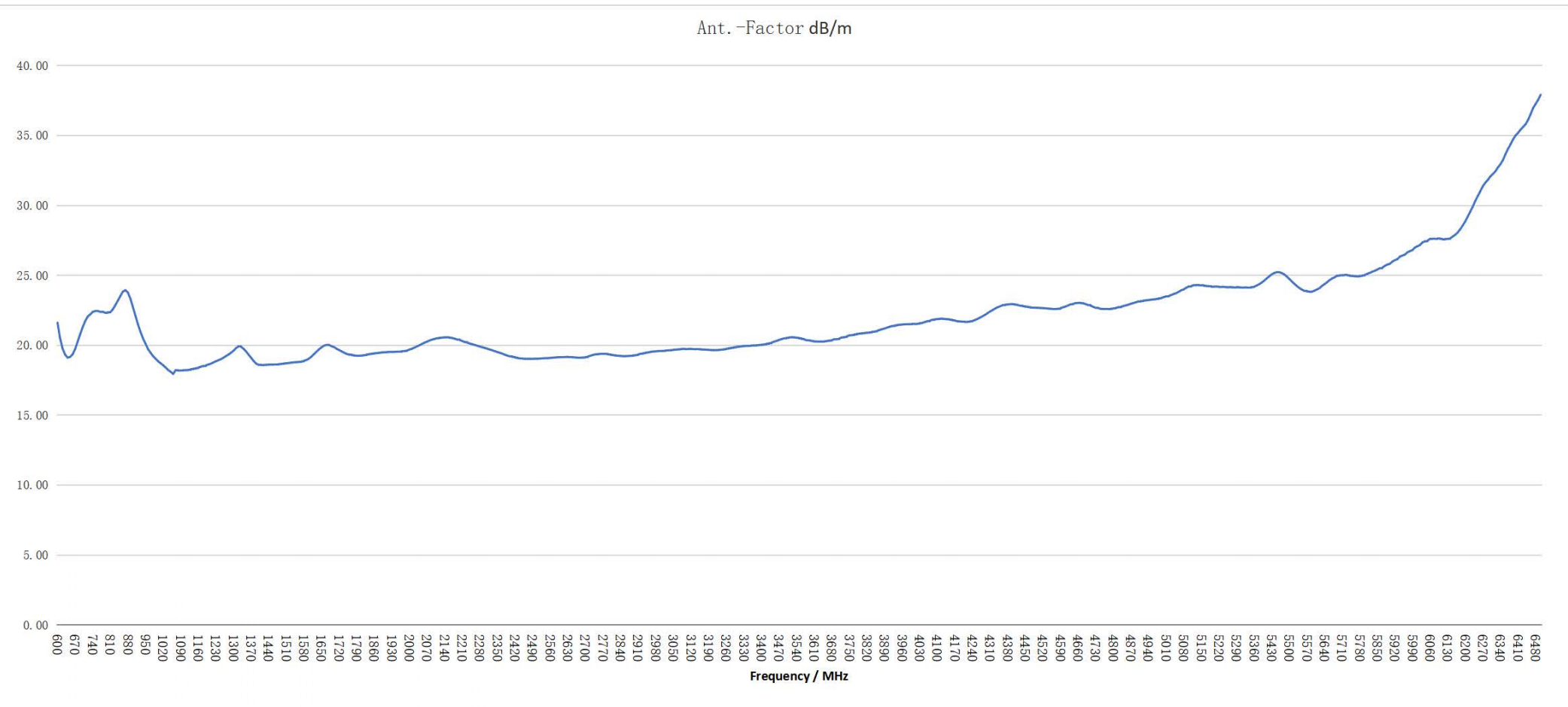

- Plot
- Reviews (0)
Description
The Ultra wide-band dual ridged horn antenna OBH-860HG is designed for superior performance accross a wide range of frequency spectrum ensuring consistent signal strength. It can transmit a clear and precise signal even in a challenging environment. The gain increase with respect to the frequency up to approximately of 20dbi and a maximum power handling capability of upto 1700W.Especially, it performs even more outstandingly in the EMC/EMI test.
OBH860-HG |
|
|
Ultra wide-band dual ridged horn antenna 0.8-6.2GHz |
|
Property |
Value |
|
Min. Frequency (GHz) |
0.8 |
|
Max. Frequency (GHz) |
6.2 |
|
Gain (dBi) |
11��20 |
|
Polarization |
Single Linear |
|
Impedance (ohm) |
50 |
|
Connector |
N-type Female |
|
VSWR |
<2.3:1 |
|
Power handling |
1700W@1GHz |
|
Material |
Aluminium |
Features |
|
|
Linear Polarized with high polarization purity |
|
|
Low Return Loss/VSWR |
|
|
Wide bandwidth |
|
|
High Power handling capability |
|
|
It is caliberated according to the ANSl C6352006 |
|
Applications |
|
|
Widely used in wireless |
|
|
Communication, medical |
|
|
EMC/EMI |
|
|
Broadcast and Telecommunications |
|
|
Radar Sensor Calibrationp |
|
