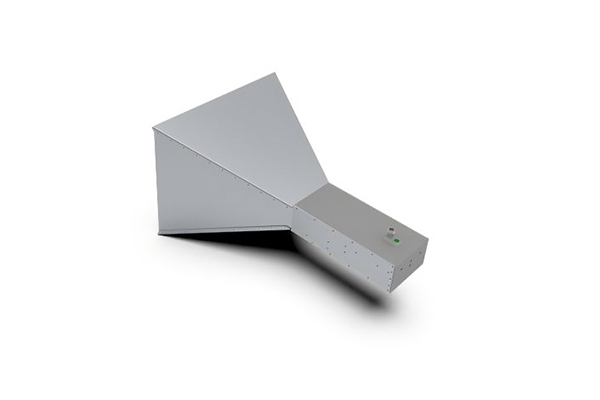

WR-650, 15 dBi Gain, 1.13GHz to 1.73GHz, Lite Pyramidal Standard Gain Horn Antenna
Frequency: 1.13 – 1.73GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-650
3 dB Beamwidth: H 30° / V 30°
OLB-650-15 is a Standard gain horn antenna can be applied to various microwave fields, including high data rate communication, especially suitable for military and government applications.
- Description
- Datasheet
- Reviews (0)
Description
OLB-650-15-L is a lite version of OLB-650-15 that offers a gain of 15 dBi across the band. Featuring an extremely low reflection coefficient and applicable in various microwave fields, including high data rate communication, especially suitable for military and government applications, ensuring efficient data transmission. HPBW of OLB-650-15-L has an H-plane and V-Plane beam width of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR and enhanced structural strength.
OLB-650-15-L |
|
|
WR-650, 15 dBi Gain, 1.13GHz to 1.73GHz, Lite Pyramidal Standard Gain Horn Antenna |
|
Property |
Value |
|
Min. Frequency (GHz) |
1.13 |
|
Max. Frequency (GHz) |
1.73 |
|
Gain (dBi) |
15 |
|
Flange |
FDP-14 |
|
HPBW 3 dB Beamwidth |
H 30°/ V 30° |
|
Waveguide |
Wr-650 |
|
Material |
Al |
|
Polarization |
Linear |
|
Impedance(Ohm) |
50 |
Features |
|
|
Light Weight and Precisely fabricated |
|
|
Rectangular Waveguide Interface |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
|
Low Return Loss |
|
Applications |
|
|
Satellite Communication Link |
|
|
Ideal for military data communication systems. |
|
|
Suitable for high-rate government transmissions |
|
