0.01-6 GHz Absorptive SPDT PIN Switch

8-12 GHz Reflective SP3T PIN Switch
0 out of 5
( There are no reviews yet. )

Frequency Range: 0.01-6 GHz
Switch Design: Absorptive
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1

SKU: OSPDTA-0.01-6GA1 Categories: SPDT, Switch
Add to Wishlist

Description

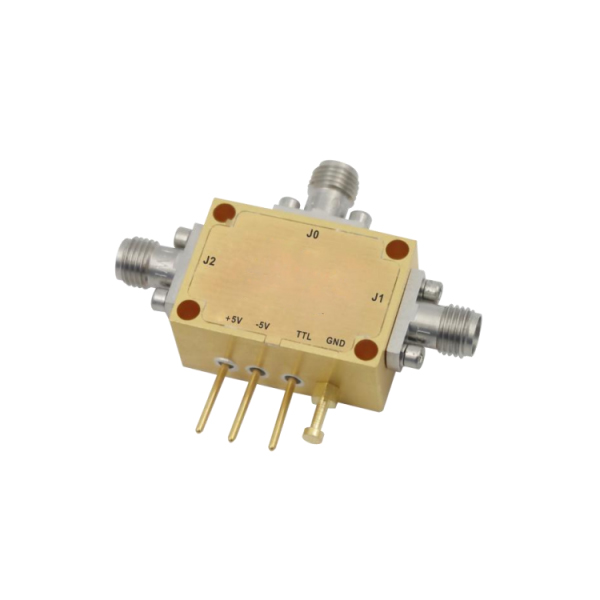

The OSPDTA-0.01-6GA1 is a broadband absorptive single-pole double-throw switch with an operating frequency range of 0.01-6 GHz. It features a maximum insertion loss of 2.5 dB, a minimum isolation of 60 dB, a maximum TTL control switching speed of 150 nsec, a maximum VSWR of 2.0:1. SMA-F connectors, it is made of nickel-plated aluminum, resulting in a lightweight design weighing only 15 grams, it is ideal for automated test systems, electronic warfare, radar, and general RF switching applications.
