0.5-18 GHz Absorptive SP32T PIN Switch
Frequency Range: 0.5-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤9.5 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1
- Description
- Datasheet
- Reviews (0)
Description

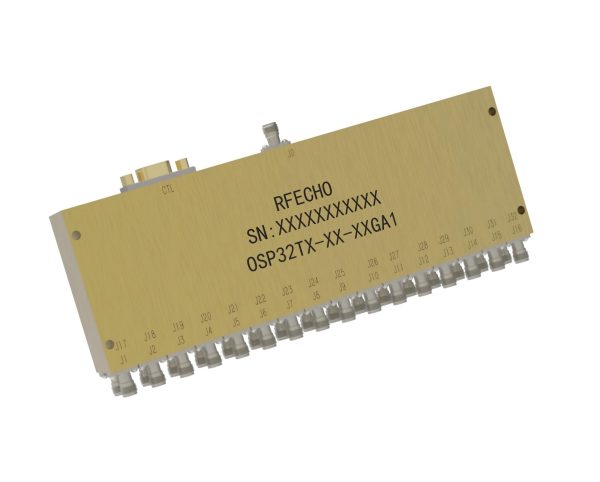

The OSP32TA-0.5-18GA1 is a broadband absorptive single-pole 32-throw switch with an operating frequency range of 0.5-18 GHz. It features a maximum insertion loss of 9.5 dB, a minimum isolation of 70 dB, a maximum TTL control switching speed of 100 nsec, a maximum VSWR of 2.0:1. SMA-F connectors, it is made of nickel-plated aluminum, it is ideal for automated test systems, electronic warfare, radar, and general RF switching applications.
OSP32TA-0.5-18GA1 | |
| 0.5-18 GHz Absorptive SP32T PIN Switch | |
Property | Value |
| Frequency Range(GHz) | 0.5~18 |
| Typ. Insertion Loss (dB) | 8.5 |
| Max. Insertion Loss (dB) | 9.5 |
| Typ. VSWR | 1.7:1 |
| Max. VSWR | 2.0:1 |
| Min. Isolation(dB) | 70 |
| Typ. Isolation(dB) | 80 |
| Typ. Switching Speed(nsec) |
|
| Max. Switching Speed(nsec) | 100 |
| Max. CW RF Power(dBm) | 27 |
| Input/Output Connectors | SMA-Female |
| Operational Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -55~+125 |
| Vibration | 25g rms (15 degree 2KHz) |
| Humidity | 100% RH at 35degC |
Features | |
| Low Insertion Loss | |
| High Isolation | |
| Fast Switching Speed | |
| Absorptive | |
Applications | |
| Wireless Infrastucture | |
| 5G Communication | |
| Test and Measurement Instrument | |
| RF Microwave & VSAT | |
| Fiber Optics | |
