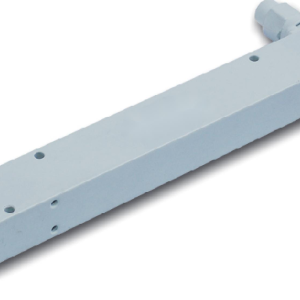

0.5-18GHz 1.6dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Coverage: 0.5-18GHz
Connector Type: SMA-K
Stripline structure circuit
Low insertion loss
High directivity
High power handling: 50W
Built-in termination (load)
Standardized product with custom design options available
- Description
- Datasheet

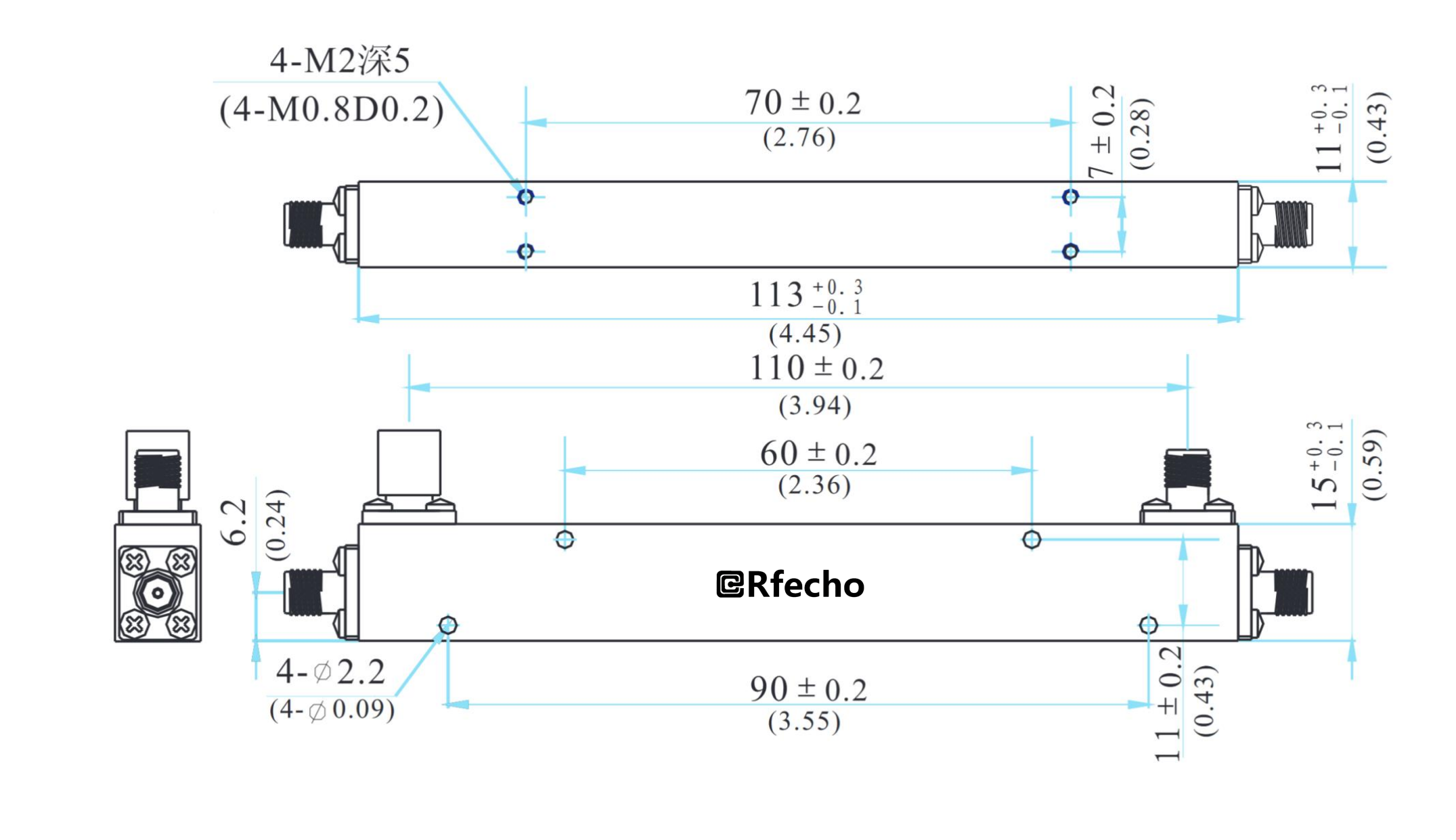

- Outline
- Reviews (0)
Description

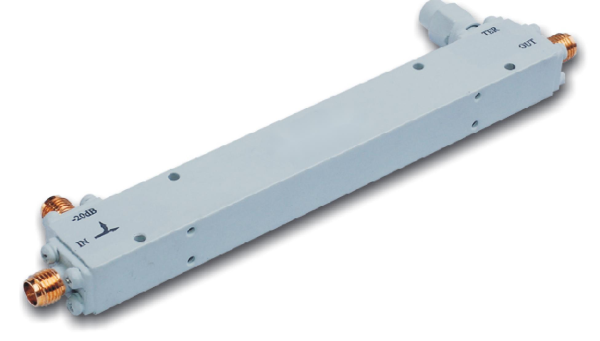

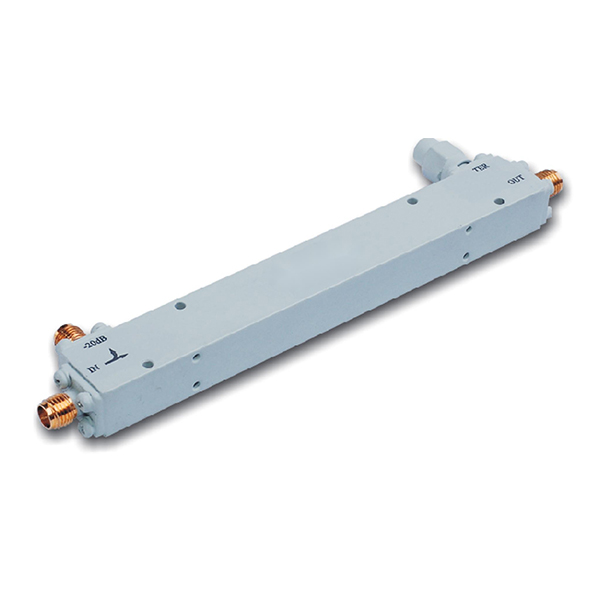

The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline structure, they feature low insertion loss, high directivity, largepower handling capability, and a built-in load for ease of use.The OPD-A1100 ultra-wideband directional coupler is primarily used in electronic warfare, radar, communications, testand measurement fields for signal sampling, monitoring, unequal power distribution, and synthesis applications. Variouscoupling degrees are available.
OCP-A1100-20 |
|
|
0.5-18GHz 1.6dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.5-18GHz |
|
Insertion Loss |
1.6dB |
|
Coupling |
20±1dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.6 |
|
Directivity |
10dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
Frequency Coverage: 0.5-18GHz |
|
|
Connector Type: SMA-K |
|
|
Stripline structure circuit |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling: 50W |
|
|
Built-in termination (load) |
|
|
Standardized product with custom design options available |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
