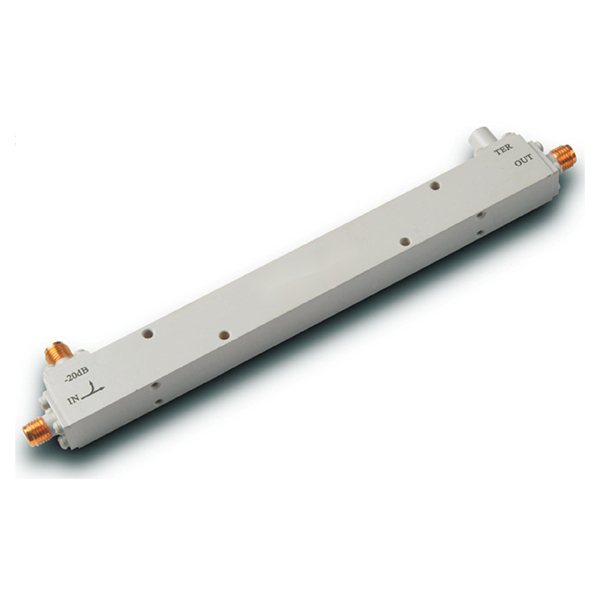

0.5-2GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
Covers 0.5-18GHz frequency range
Uses SMA connectors
Stripline structure
Low insertion loss, high directivity
Large power handling capacity
Internal load for ease of use
- Description
- Datasheet

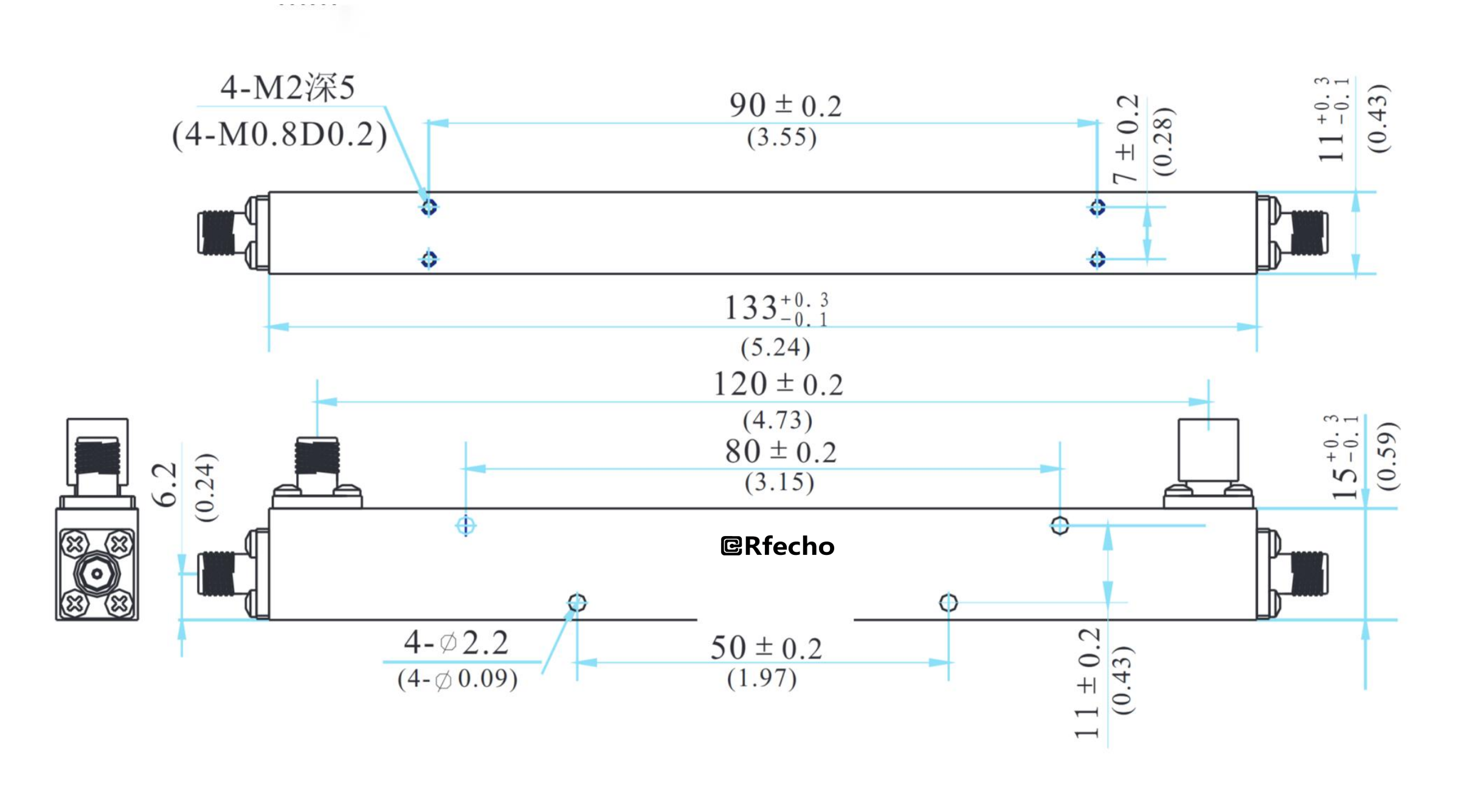

- Outline
- Reviews (0)
Description
The OPD-A1200 broadband directional coupler is mainlyused in fields such as electronic countermeasures, radar,communications, test and measurement, for signal sampling,monitoring, unequal power distribution, and synthesis. Multiple coupling degrees are available for selection.
OCP-A1200-20 |
|
|
0.5-2GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.5-2GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
20±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test requirements |
Features |
|
|
Covers 0.5-18GHz frequency range |
|
|
Uses SMA connectors |
|
|
Stripline structure |
|
|
Low insertion loss, high directivity |
|
|
Large power handling capacity |
|
|
Internal load for ease of use |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
