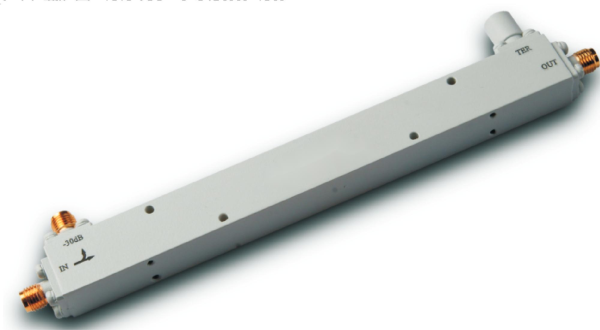

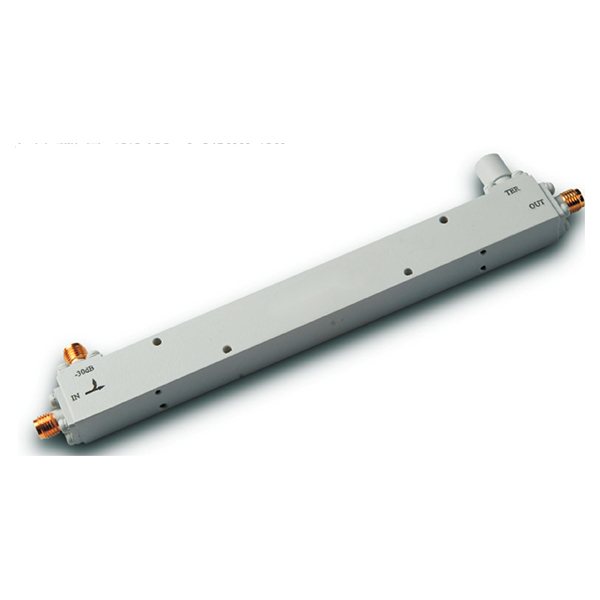

0.5-2GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 0.5-18GHz
SMA Connectors
Strip line structure
Low insertion loss
High directivity
High power handling
Internal load
Standardized product, customizable
Connector: SMA-K
Power Handling: 50W
- Description
- Datasheet

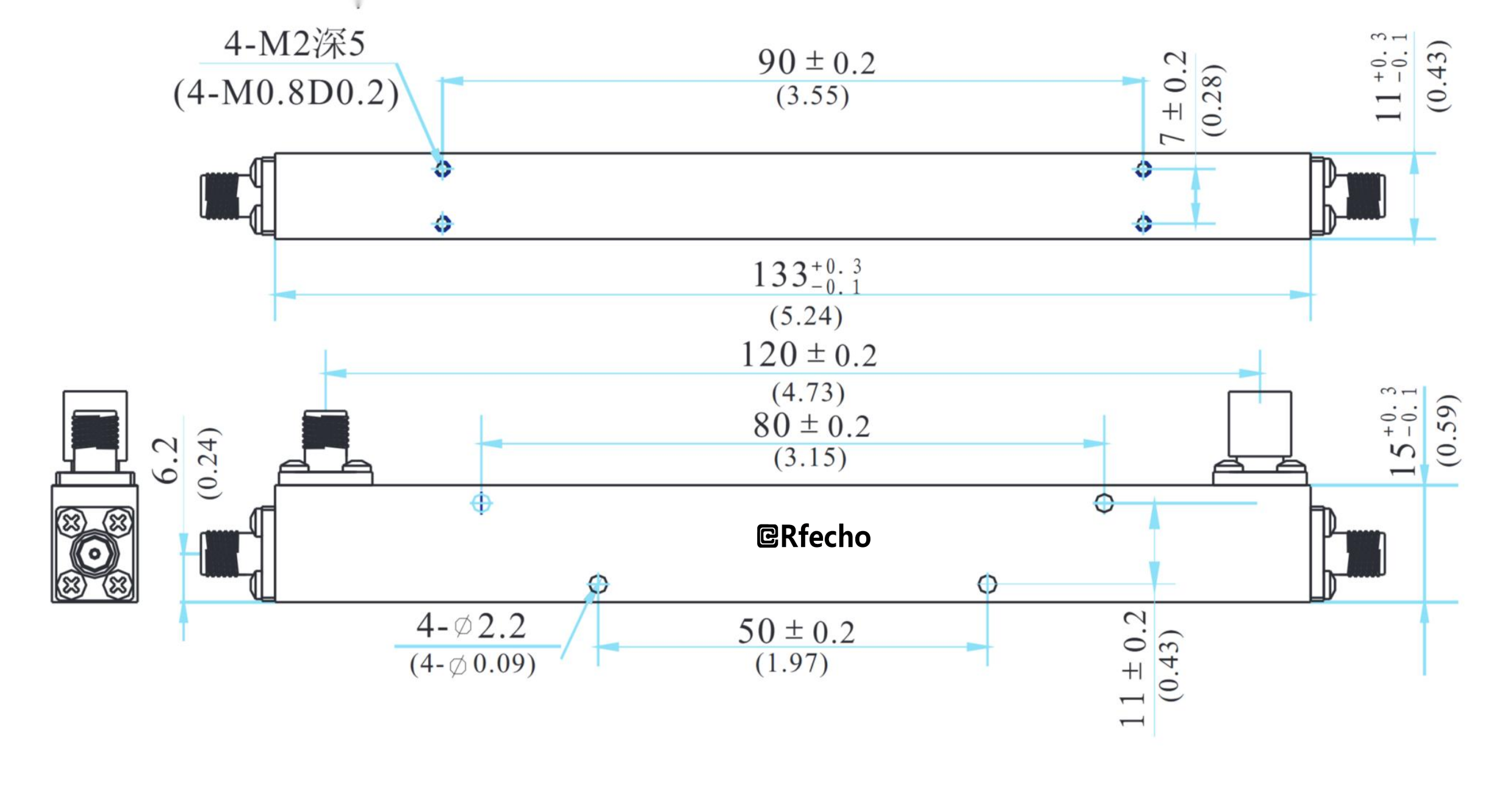

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a strip linestructure, they feature low insertion loss, high directivity,large power handling capacity, and an internal load for easeof use. The OPD-A1200 broadband directional coupler ismainly used in electronic countermeasures, radar, communication, and measurement fields for signal sampling, mon-itoring, unequal power distribution, and combining. Multiplecoupling degrees are available.
OCP-A1200-30 |
|
|
0.5-2GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.5-2GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
30±1dB |
|
Power Handling |
50W |
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test requirements |
Features |
|
|
Frequency Range: 0.5-18GHz |
|
|
SMA Connectors |
|
|
Strip line structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling |
|
|
Internal load |
|
|
Standardized product, customizable |
|
|
Connector: SMA-K |
|
|
Power Handling: 50W |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
