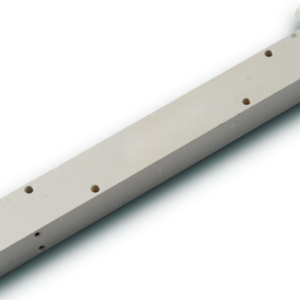

0.5-2GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler
$0
Covers 0.5-18GHz frequency band (Series)
Specific Frequency Range: 0.5-2GHz
SMA Connectors
Stripline structure
Low insertion loss
High directivity
High power handling
Internal termination
Standardized product, customizable
- Description
- Datasheet

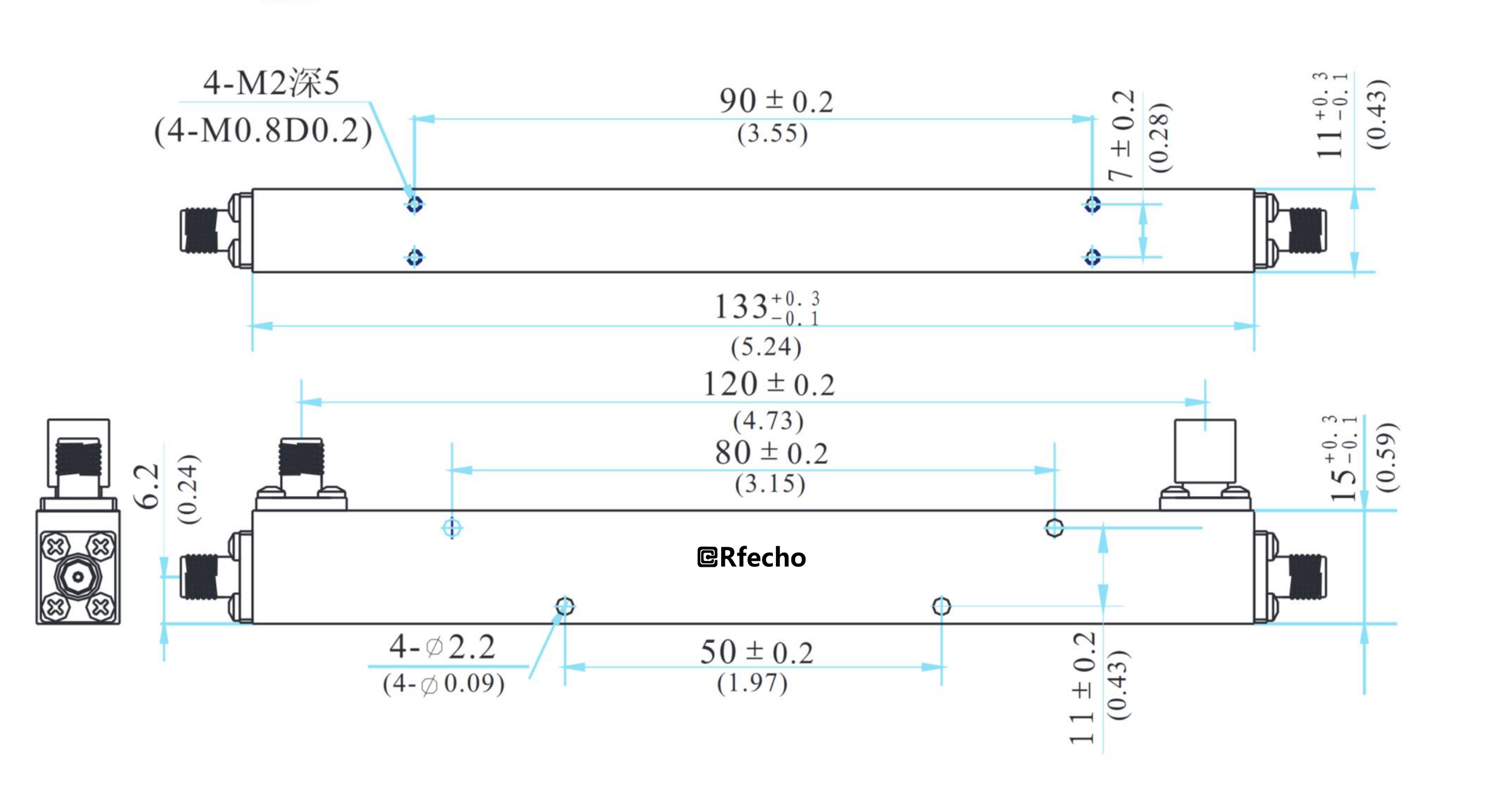

- Outline
- Reviews (0)

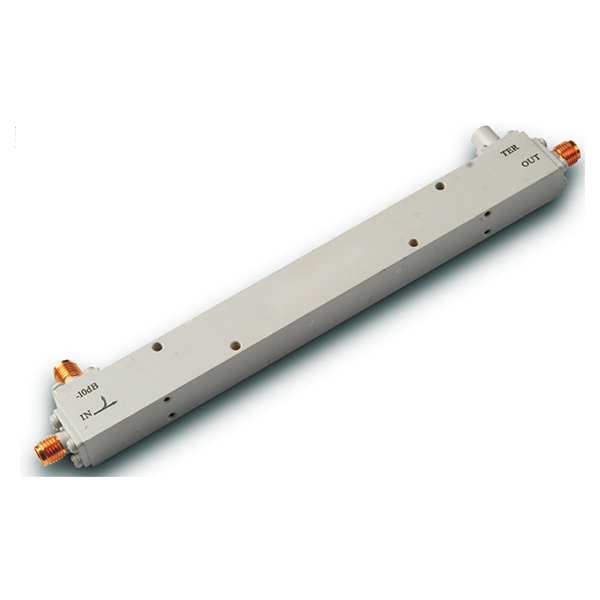

Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline circuit structure, they feature low insertion loss, high directivi-ty, high power handling, and internal termination for ease ofuse.The OPD-A1200 broadband directional coupler is mainly used in electronic warfare, radar, communications, testand measurement fields for signal sampling, monitoring, unequal power distribution, and combining applications. A va-riety of coupling degrees are available.
OCP-A1200-10 |
|
|
0.5-2GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.5-2GHz |
|
Insertion Loss |
0.5dB |
|
Coupling |
10±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
Covers 0.5-18GHz frequency band (Series) |
|
|
Specific Frequency Range: 0.5-2GHz |
|
|
SMA Connectors |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling |
|
|
Internal termination |
|
|
Standardized product, customizable |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
