0.5-2GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler
$0
Covers 0.5-18GHz frequency range (Series)
0.5-2GHz frequency range (Model)
SMA connectors
Stripline structure
Low insertion loss
High directivity
High power handling capacity
Built-in termination
- Description
- Datasheet

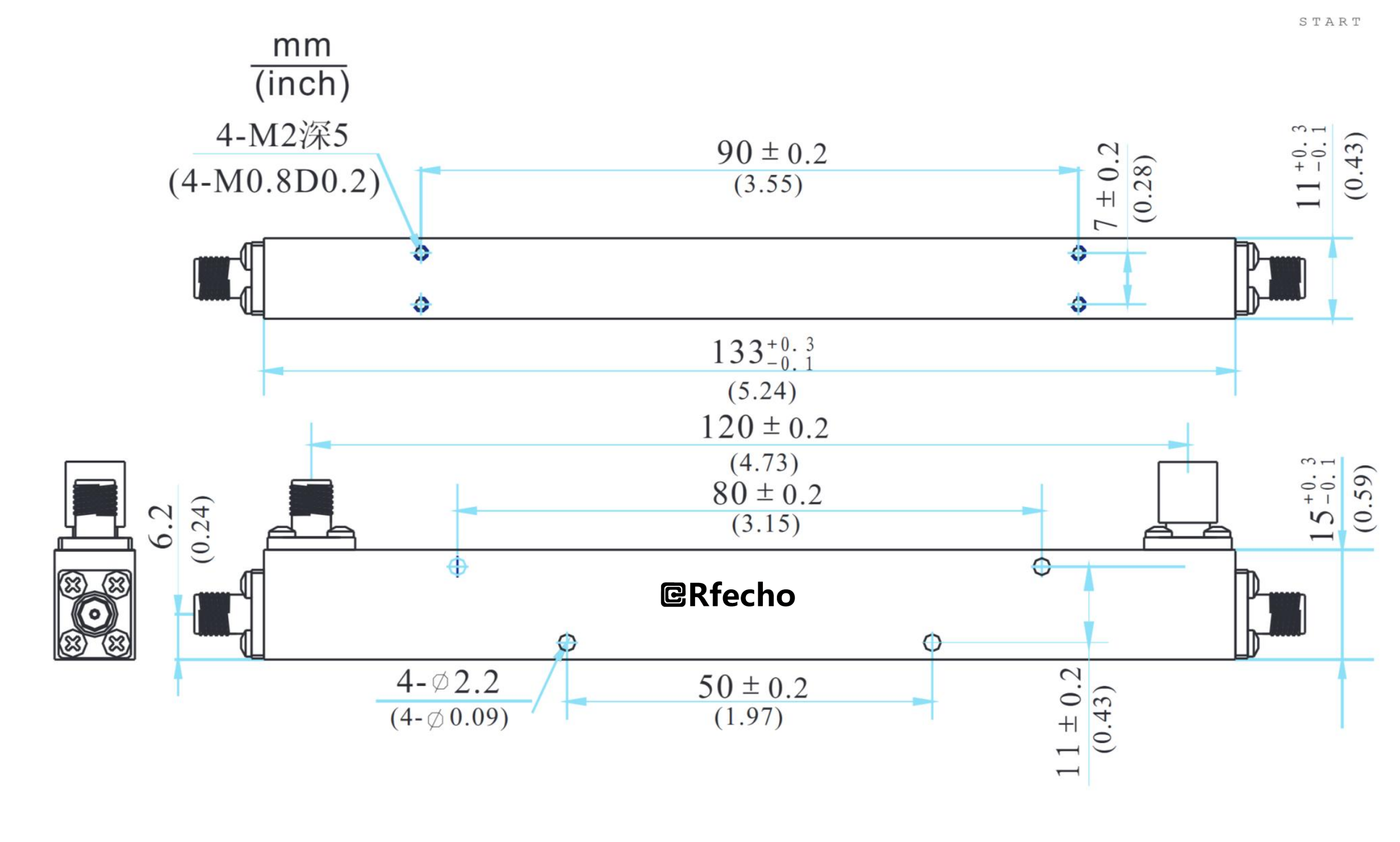

- Outline
- Reviews (0)
Description

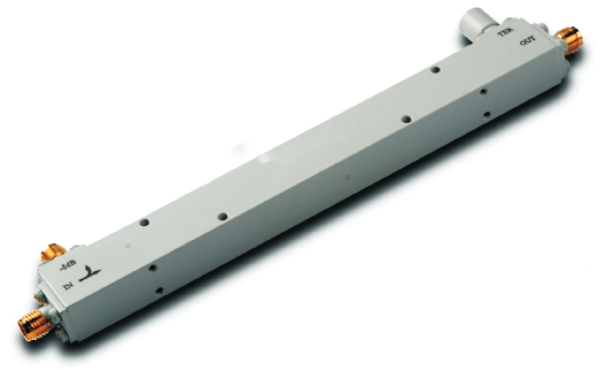

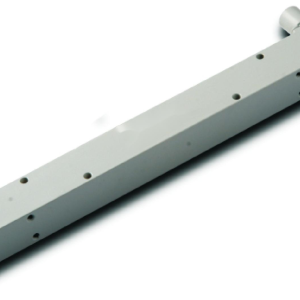

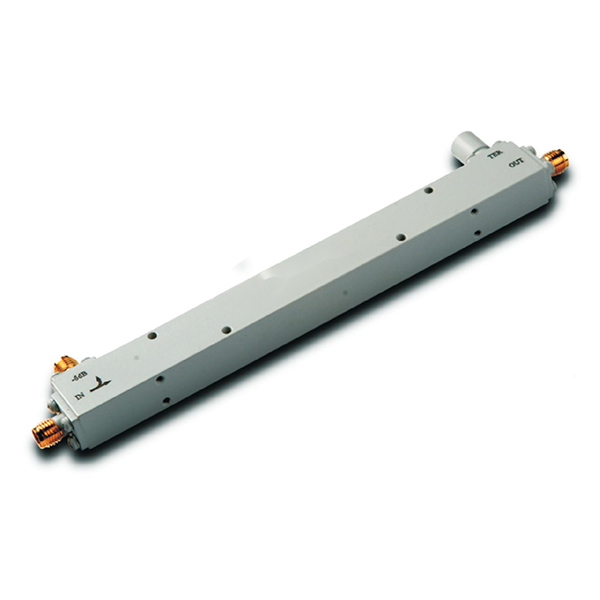

The OCP -A1 series of directional couplers covers the0.5-18GHz frequency band. Using SMA connectors and astripline structure, the circuit features low insertion loss, highdirectivity, large power handling capacity, and a built-in termination for ease of use. The OPD-A1200 broadband di-rectional coupler is mainly used in fields such as electroniccountermeasures, radar, communications, testing, and measurement for signal sampling, monitoring, and unequal powerdistribution and combining. A variety of coupling degrees areavailable for selection.
OCP-A1200-6 |
|
|
0.5-2GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.5-2GHz |
|
Insertion Loss |
0.5dB |
|
Coupling |
6±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
Covers 0.5-18GHz frequency range (Series) |
|
|
0.5-2GHz frequency range (Model) |
|
|
SMA connectors |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling capacity |
|
|
Built-in termination |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
