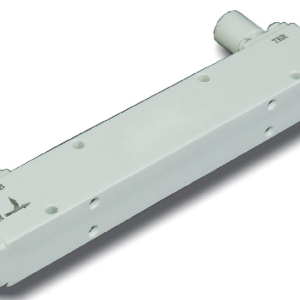

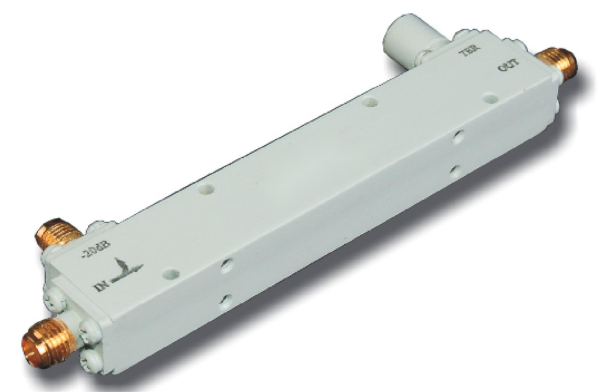

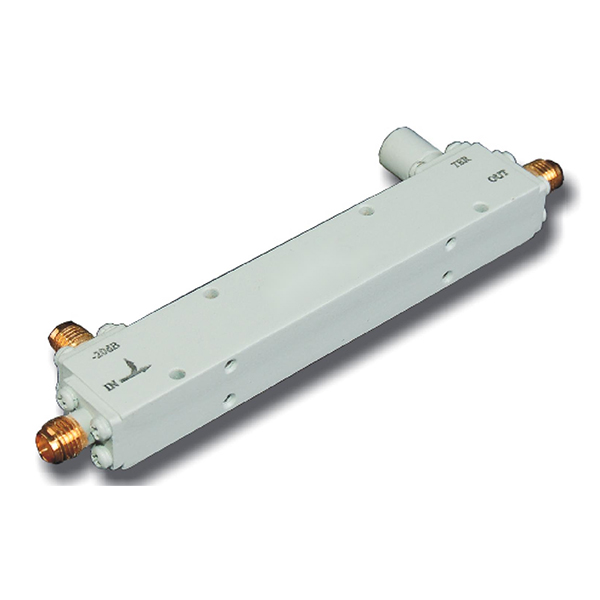

0.8-2.5GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
$0
Covers 0.8-2.5GHz frequency range (Series covers 0.5-18GHz)
SMA connectors with stripline structure
Low insertion loss (0.4dB)
High directivity (20dB)
High power handling (50W)
Built-in load for ease of use
Suitable for electronic countermeasures, radar, and communication systems
- Description
- Datasheet

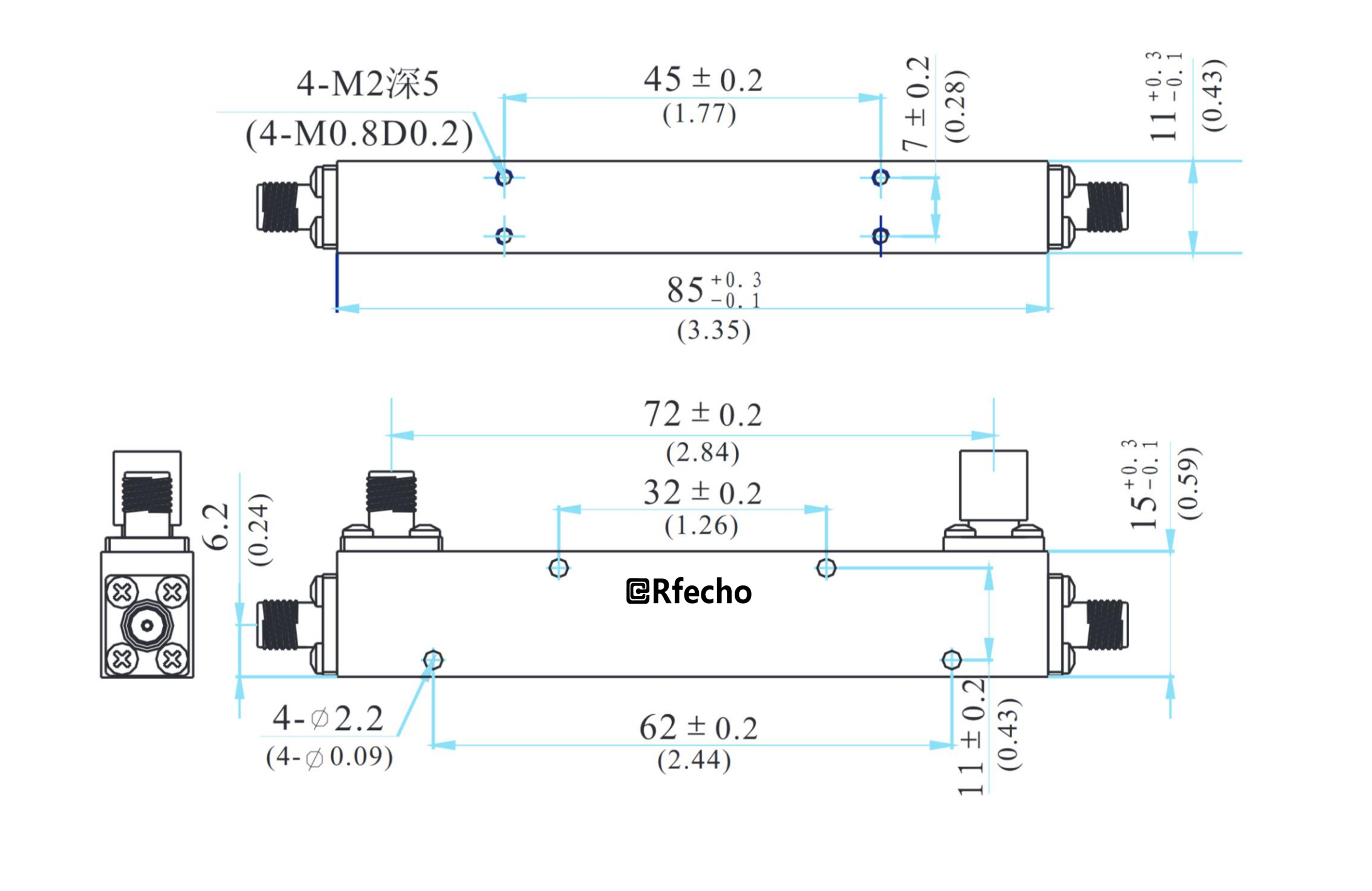

- Outline
- Reviews (0)
Description
The OCP -A1 series of directional couplers covers the0.5-18GHz frequency band. Utilizing SMA connectors and astripline structure, these devices feature low insertion loss,high directivity, high power handling capacity, and a built-inload for convenient operation. The OPD-A1201 (renamedfrom OPD) broadband directional coupler is primarily designed for electronic warfare, radar, communications, navi-gation, and test & measurement applications. It is ideal forsignal sampling, monitoring, unequal power distribution, andsignal combining. Various coupling values are available.
OCP-A1201-20 |
|
|
0.8-2.5GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.8-2.5GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
20±1dB |
|
Power Handling |
50W |
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.70dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets test requirements of GJB-1509-1992 |
Features |
|
|
Covers 0.8-2.5GHz frequency range (Series covers 0.5-18GHz) |
|
|
SMA connectors with stripline structure |
|
|
Low insertion loss (0.4dB) |
|
|
High directivity (20dB) |
|
|
High power handling (50W) |
|
|
Built-in load for ease of use |
|
|
Suitable for electronic countermeasures, radar, and communication systems |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
