Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and stripline structure, they feature low insertion loss, high directivity, largepower handling capability, and internal loads for ease ofuse.The OPD-A1201 broadband directional coupler is mainly used in fields such as electronic countermeasures, radar,communication, navigation, and test & measurement. Various coupling degrees are available.

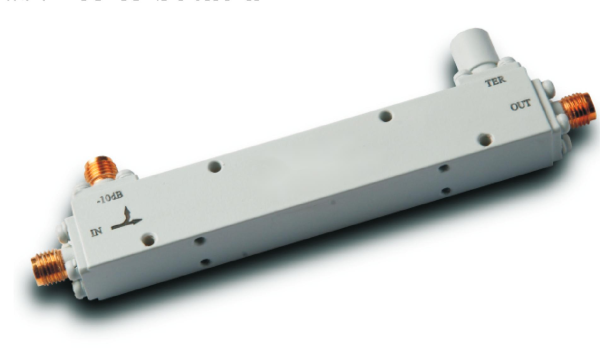

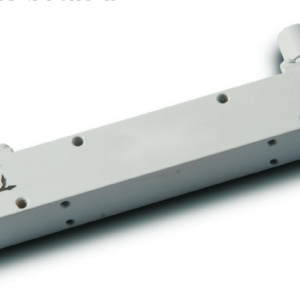

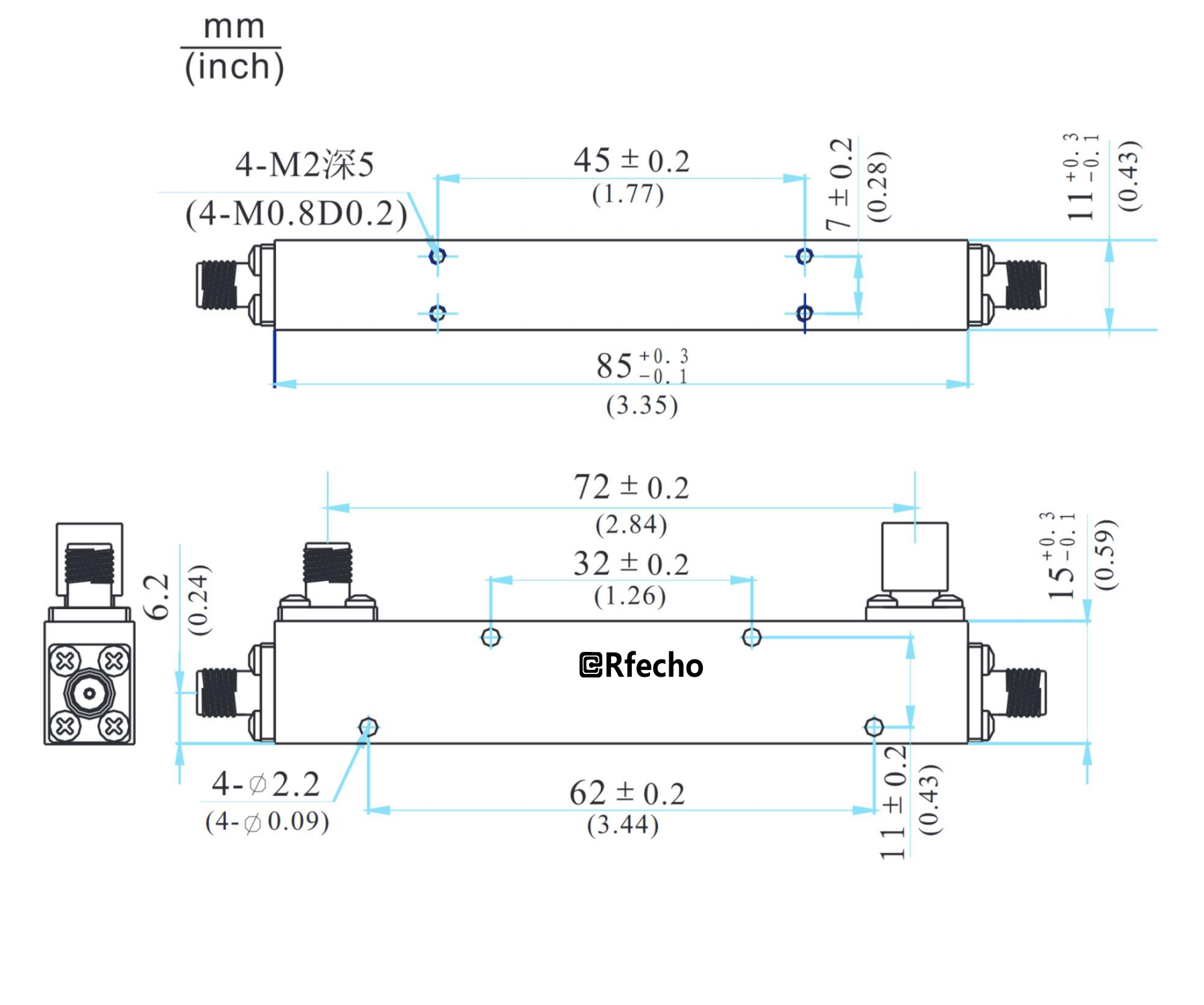

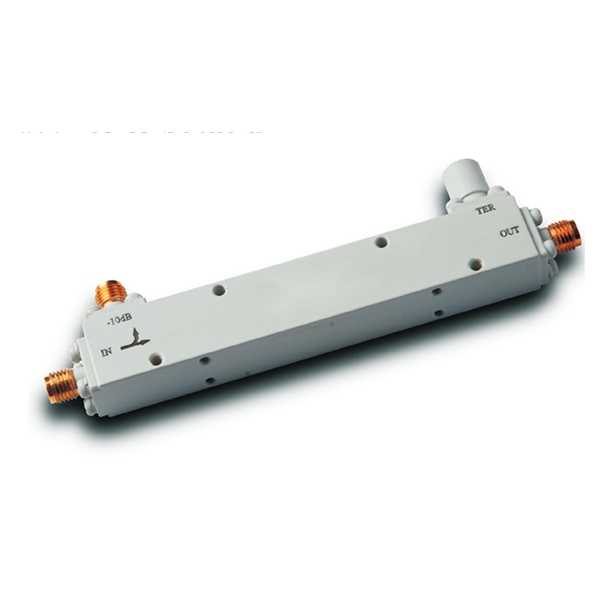

OCP-A1201-6 |
|
|
0.8-2.5GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
0.8-2.5GHz |
|
Insertion Loss |
0.5dB |
|
Coupling |
6±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test requirements |
Features |
|
|
Frequency coverage: 0.5-18GHz |
|
|
SMA connectors, Stripline structure |
|
|
Low insertion loss, high directivity |
|
|
High power handling, internal load |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
