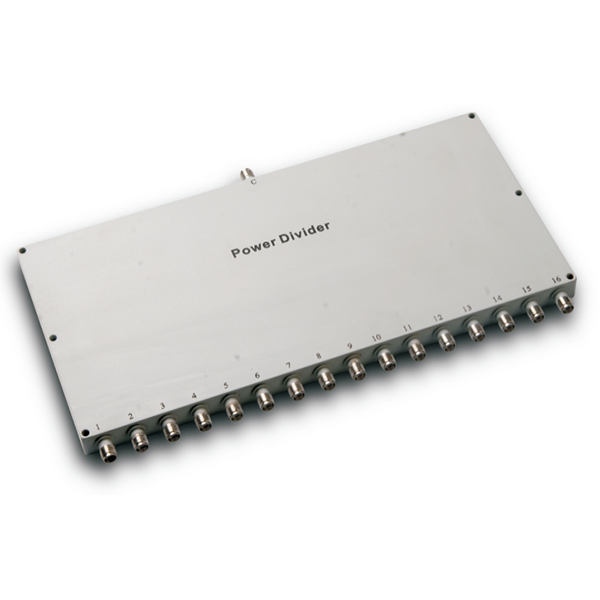

0.8-2.5GHz Insertion Loss 1.70dB SMA Connector 0° Power Divider
Frequency Range: 0.8-2.5GHz
16-Way 0° Power Divider
SMA-Female Connectors
Low Insertion Loss (1.70dB)
High Isolation (18dB)
Low VSWR (Input 1.50 / Output 1.30)
Excellent Amplitude & Phase Balance
High consistency for mass production
Custom designs available
- Description
- Datasheet

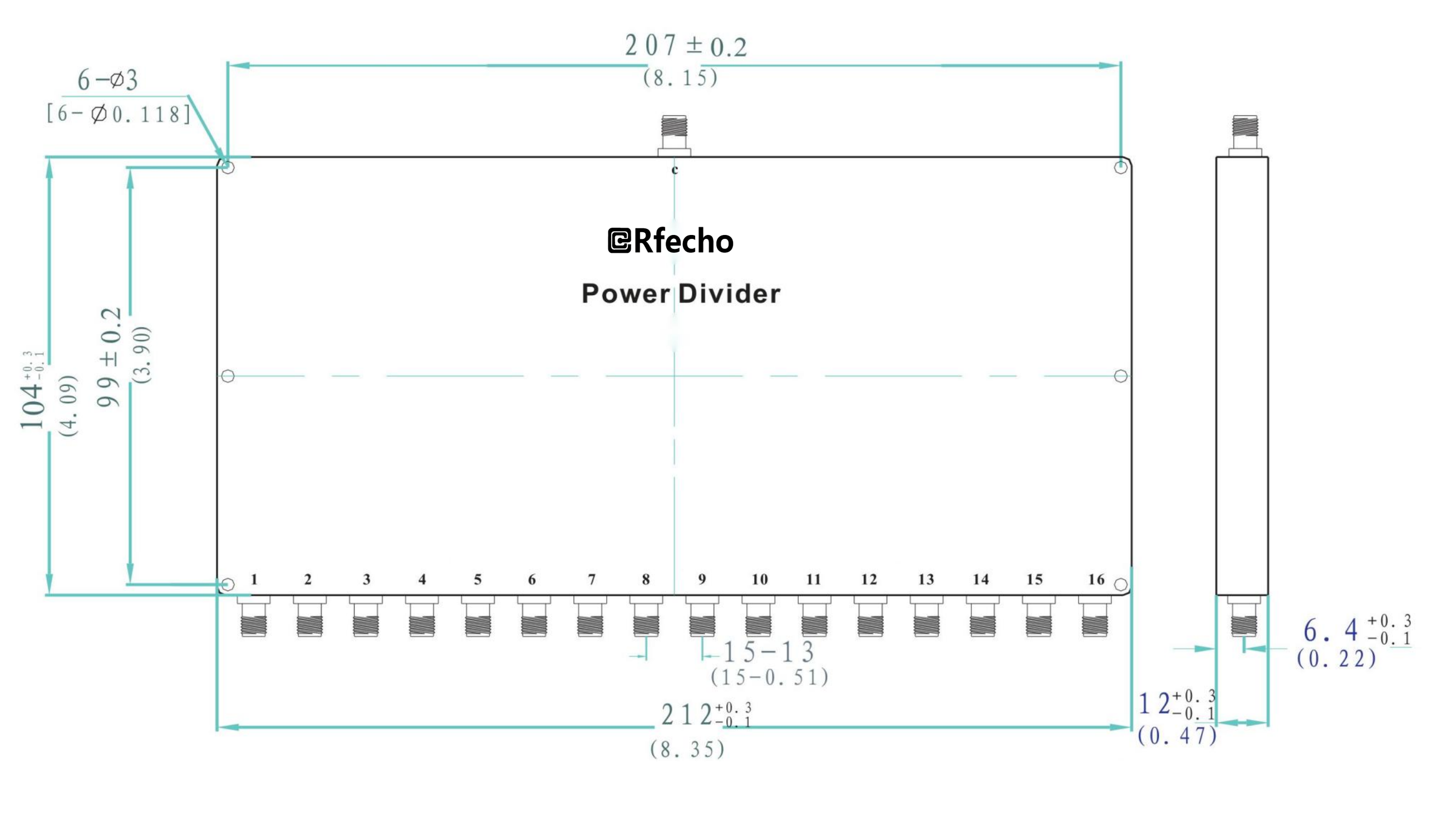

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers, with the OPD-A1621 specifically covering the0.8-2.5GHz range. Key advantages include small size, lowloss, low VSWR, and high isolation. This series utilizes massproduction control methods to ensure high product consistency, meeting large-volume supply requirements. TheOPD-A1621 is primarily used in communication, electronicwarfare, radar, navigation, and test & measurement systemsfor the distribution and combination of 16-way microwavesignals.
OPD-A1621 |
|
|
0.8-2.5GHz Insertion Loss 1.70dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.8-2.5GHz |
|
Insertion Loss |
1.70dB |
|
Isolation |
18dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±8° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.5 |
|
Output VSWR |
1.3 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
Frequency Range: 0.8-2.5GHz |
|
|
16-Way 0° Power Divider |
|
|
SMA-Female Connectors |
|
|
Low Insertion Loss (1.70dB) |
|
|
High Isolation (18dB) |
|
|
Low VSWR (Input 1.50 / Output 1.30) |
|
|
Excellent Amplitude & Phase Balance |
|
|
High consistency for mass production |
|
|
Custom designs available |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
