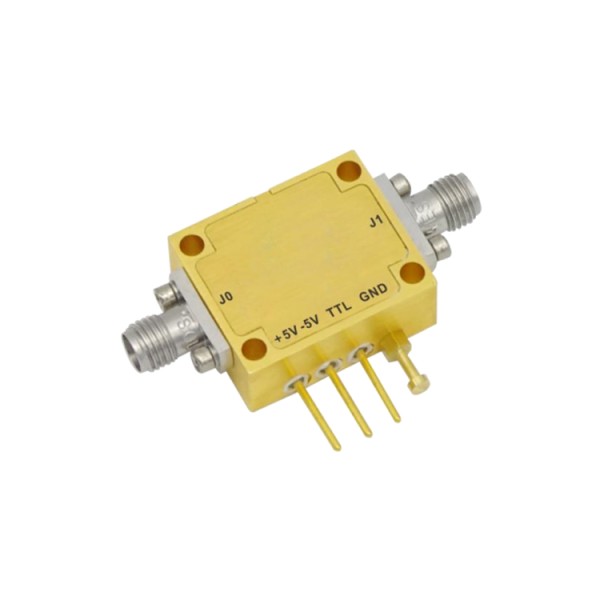

0.8–20 GHz Absorptive SPST PIN Switch
Broadband 0.8–20 GHz;Low Insertion Loss;
High Isolation;
Fast Switching Speed;
Absorptive, 50 Ω Matched
- Description
- Datasheet
- Reviews (0)
Description
The OSPSTA-0.8-20GA1 is a broadband absorptive single-pole switch covering 0.8 to 20 GHz. It offers low insertion loss, high isolation, fast TTL-controlled switching speed and a 50 Ω matched design, making it well suited for automated test systems, EW, radar and general-purpose RF switching applications.
OSPSTA-0.8-20GA1 |
|
|
0.8–20 GHz Absorptive SPST PIN Switch |
|
Property |
Value |
|
Min. Frequency (GHz) |
0.8 |
|
Max. Frequency (GHz) |
20 |
|
Insertion Loss (dB) |
3 |
|
Typ. Input Port VSWR |
1.8:1 |
|
Max. Input Port VSWR |
2.2:1 |
|
Typ. Output Port VSWR |
1.8:1 |
|
Max. Output Port VSWR |
2.2:1 |
|
Min. Isolation(dB) |
40 |
|
Typ. Isolation(dB) |
50 |
|
Typ. Switching Speed(nsec) |
100 / 100 / 10 / 10 |
|
Max. Switching Speed(nsec) |
120 / 120 / 15 / 15 |
|
Max. CW RF Power(dBm) |
30 |
|
Impedance(Ω) |
50 |
|
Operational Temperature (°C) |
-45~+85 |
|
Storage Temperature (°C) |
-55~+125 |
|
Min. Vibration |
25g rms (15–2000 Hz) |
|
Typ. Vibration |
Humidity |
|
Max. Vibration |
100% RH at 35 °C / 95% RH at 40 °C |
Features |
|
|
Broadband 0.8–20 GHz;Low Insertion Loss;High Isolation;Fast Switching Speed;Absorptive, 50 Ω Matched |
|
Applications |
|
|
Wireless Infrastructure,5G Communication,Test and Measurement Instrument，RF microwave & VSAT Fiber Optics |
|
