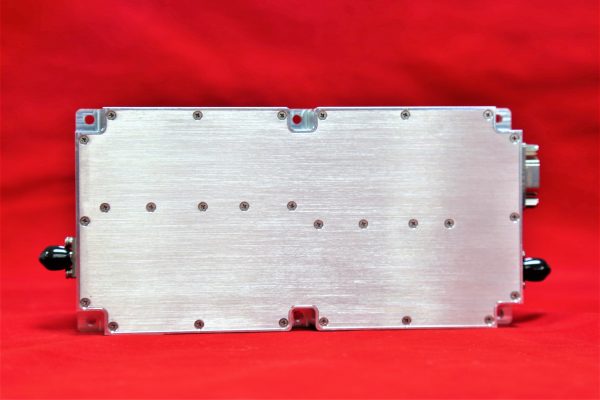

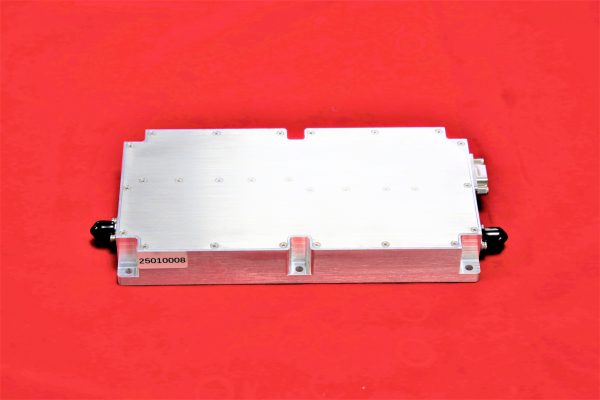

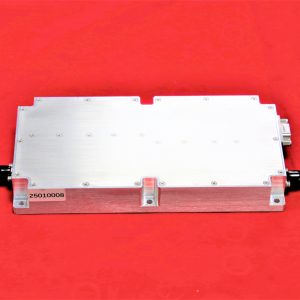

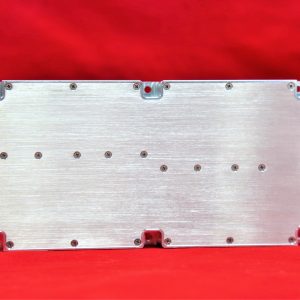

0.83-0.919GHz 50W/100W Power Amplifier
$0
Frequency Range: 0.83-0.919GHz.
Gain:47~50dBm
Input VSWR: /
Output VSWR: 2:1
It have the characteristics of temperature protection, Gain stability, and VCO frequency sweep.
- Description
- Outline
- Additional information
- Reviews (0)
Description
PA-0.83-0.919G-100I |
|
|
0.83-0.919GHz 50W/100W Power Amplifier |
|
Property |
Value |
|
Min. Frequency (GHz) |
0.83 |
|
Max. Frequency (GHz) |
0.919 |
|
Max. Power Gain (dBm) |
47/50 |
|
Input VSWR |
/ |
|
Output VSWR |
2.0:1 |
|
Output power(W) |
50/100 |
|
Operating Voltage |
+28V |
|
RF Connector |
SMA |
|
DC Connector |
/ |
Features |
|
|
High Power Gain Stability |
|
|
Low Input and Output VSWR |
|
|
Stable operation in harsh conditions |
|
Applications |
|
|
Wireless Infrastructure |
|
|
Test and measurement Instrument |
|
|
Fiber Optics |
|
|
5G Communication |
|
|
RF Microwave & VSAT |
|
Additional information
| Min. Frequency (GHz) | 0.83 |
|---|---|
| Max. Frequency (GHz) | 0.919 |
| Max. Power Gain (dBm) | 47/50 |
| Input VSWR | / |
| Output VSWR | 2.0:1 |
| Output power(W) | 50/100 |
| Operating Voltage | +28V |
| RF Connector | SMA |
| DC Connector | / |
