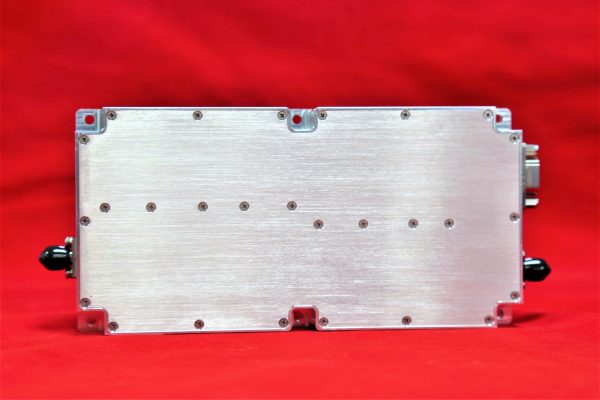

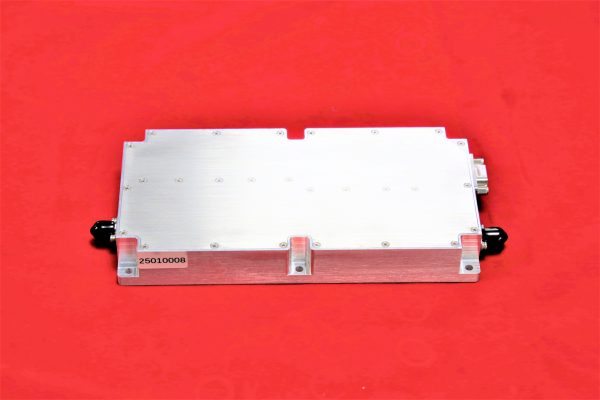

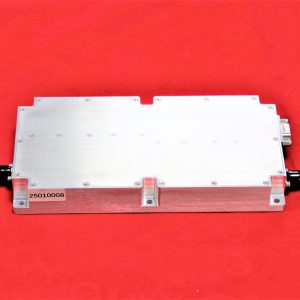

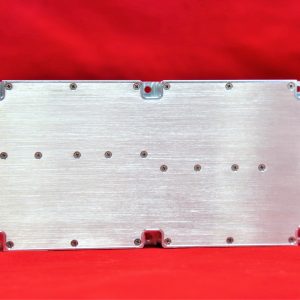

0.96-1.12GHz 50W/100W Power Amplifier
Frequency Range: 0.96-1.12GHz.
Gain:47~50dBm
Input VSWR: /
Output VSWR: 2:1
It have the characteristics of temperature protection, Gain stability, and VCO frequency sweep.
- Description
- Outline
- Additional information
- Reviews (0)
Description
PA-0.96-1.12G-100I | |
| 0.96-1.12GHz 50W/100W Power Amplifier | |
Property | Value |
| Min. Frequency (GHz) | 0.96 |
| Max. Frequency (GHz) | 1.12 |
| Max. Power Gain (dBm) | 47/50 |
| Input VSWR | / |
| Output VSWR | 2.0:1 |
| Output power(W) | 50/100 |
| Operating Voltage | +28V |
| RF Connector | SMA |
| DC Connector | / |
Features | |
| High Power Gain Stability | |
| Low Input and Output VSWR | |
| Stable operation in harsh conditions | |
Applications | |
| Wireless Infrastructure | |
| Test and measurement Instrument | |
| Fiber Optics | |
| 5G Communication | |
| RF Microwave & VSAT | |
Additional information
| Min. Frequency (GHz) | 0.96 |
|---|---|
| Max. Frequency (GHz) | 1.12 |
| Max. Power Gain (dBm) | 47/50 |
| Input VSWR | / |
| Output VSWR | 2.0:1 |
| Output power(W) | 50/100 |
| Operating Voltage | +28V |
| RF Connector | SMA |
| DC Connector | / |
