OCP -A1 series directional couplers cover the 0.5-18GHz frequency band. Uses SMA connectors and stripline structure.
Features relatively low insertion loss, high directivity, large power handling, and internal load for ease of use.
OPD-A1101 ultra-wideband directional coupler is mainly used in electronic warfare, radar, communications, test and measurement fields.
Suitable for signal sampling, monitoring, unequal power distribution and synthesis scenarios.
Various coupling degrees are available.
- Description
- Datasheet
- Outline
- Reviews (0)
Description

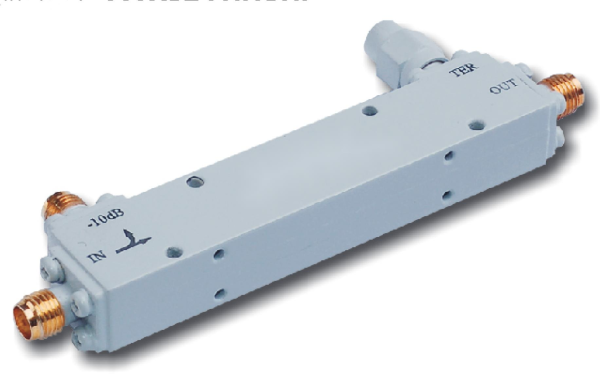

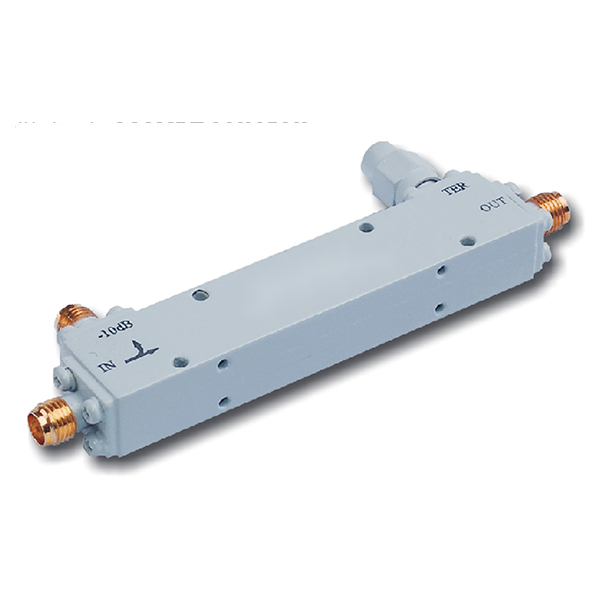

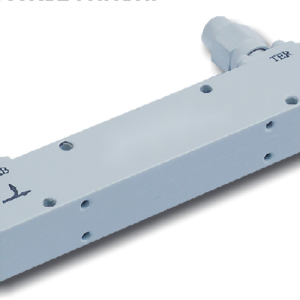

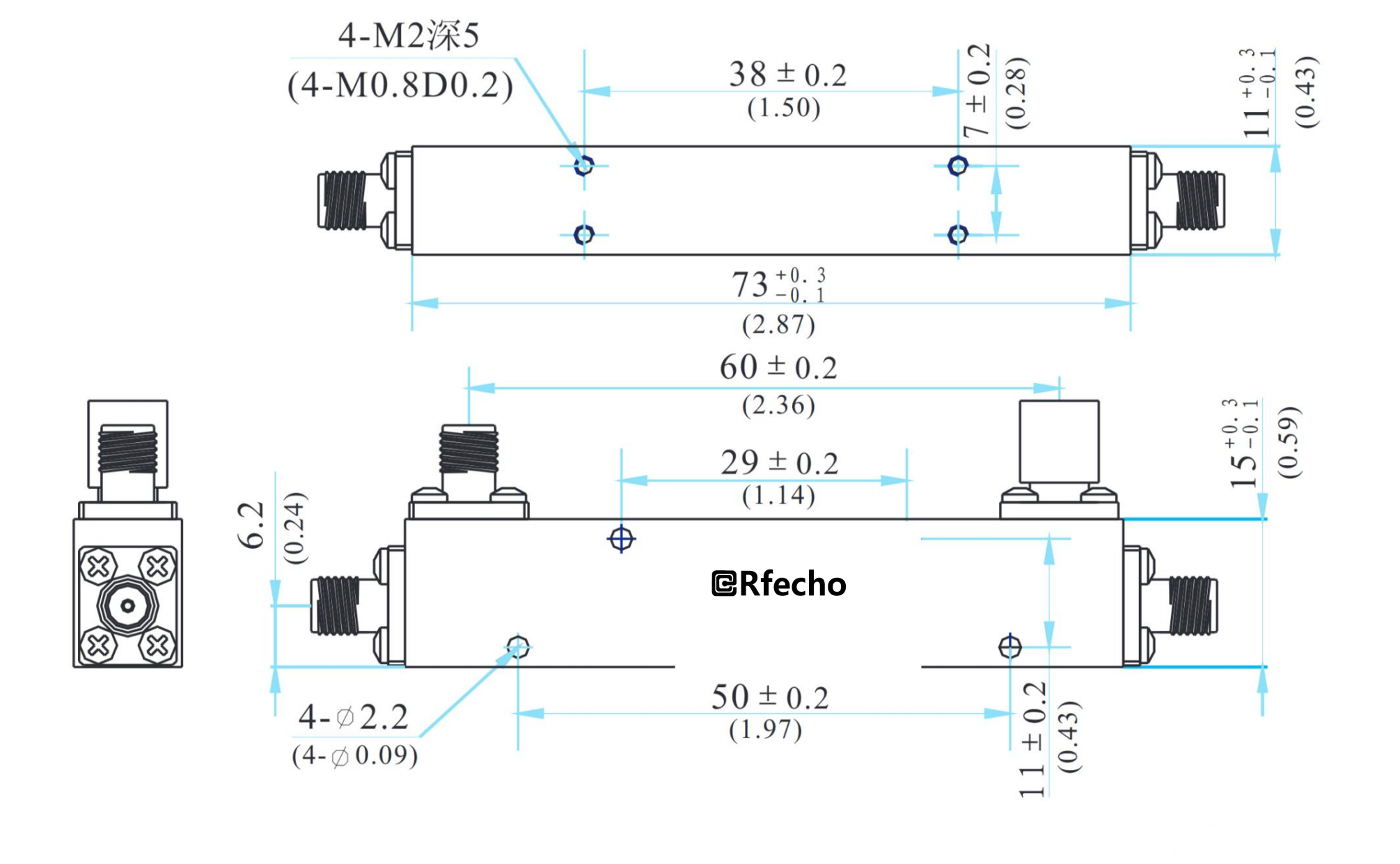

The OCP -A1 series directional coupler operates in the0.5-18GHz range, utilizing SMA connectors and a striplinedesign. It offers low insertion loss, high directivity, and robustpower handling with an internal termination.The OPD-A1101model is specifically designed for ultra-wideband applica-tions including EW, radar, and communications.
OCP-A1101-10 |
|
|
1-18GHz 1.2dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
1-18GHz |
|
Insertion Loss |
1.2dB |
|
Coupling |
10±1dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.6 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets the test items and requirements of GJB-1509-1992 |
Features |
|
|
OCP -A1 series directional couplers cover the 0.5-18GHz frequency band. Uses SMA connectors and stripline structure. |
|
|
Features relatively low insertion loss, high directivity, large power handling, and internal load for ease of use. |
|
|
OPD-A1101 ultra-wideband directional coupler is mainly used in electronic warfare, radar, communications, test and measurement fields. |
|
|
Suitable for signal sampling, monitoring, unequal power distribution and synthesis scenarios. |
|
|
Various coupling degrees are available. |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
