1-4GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
$0
Covers 0.5-18GHz frequency band (Series)
SMA connectors
Stripline circuit structure
Low insertion loss
High directivity
High power handling
Built-in load
Available in various coupling values
Custom design available
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHz frequency band. Using SMA connectors and a stripline structure, they feature low insertion loss, high directivity, and high power handling with a built-in load for convenience. The OPD-A1202 broadband directional coupler is primarily usedin radar, communications, satellite communications, navigation, and test and measurement applications for signal sam-pling, monitoring, and power distribution/combination.

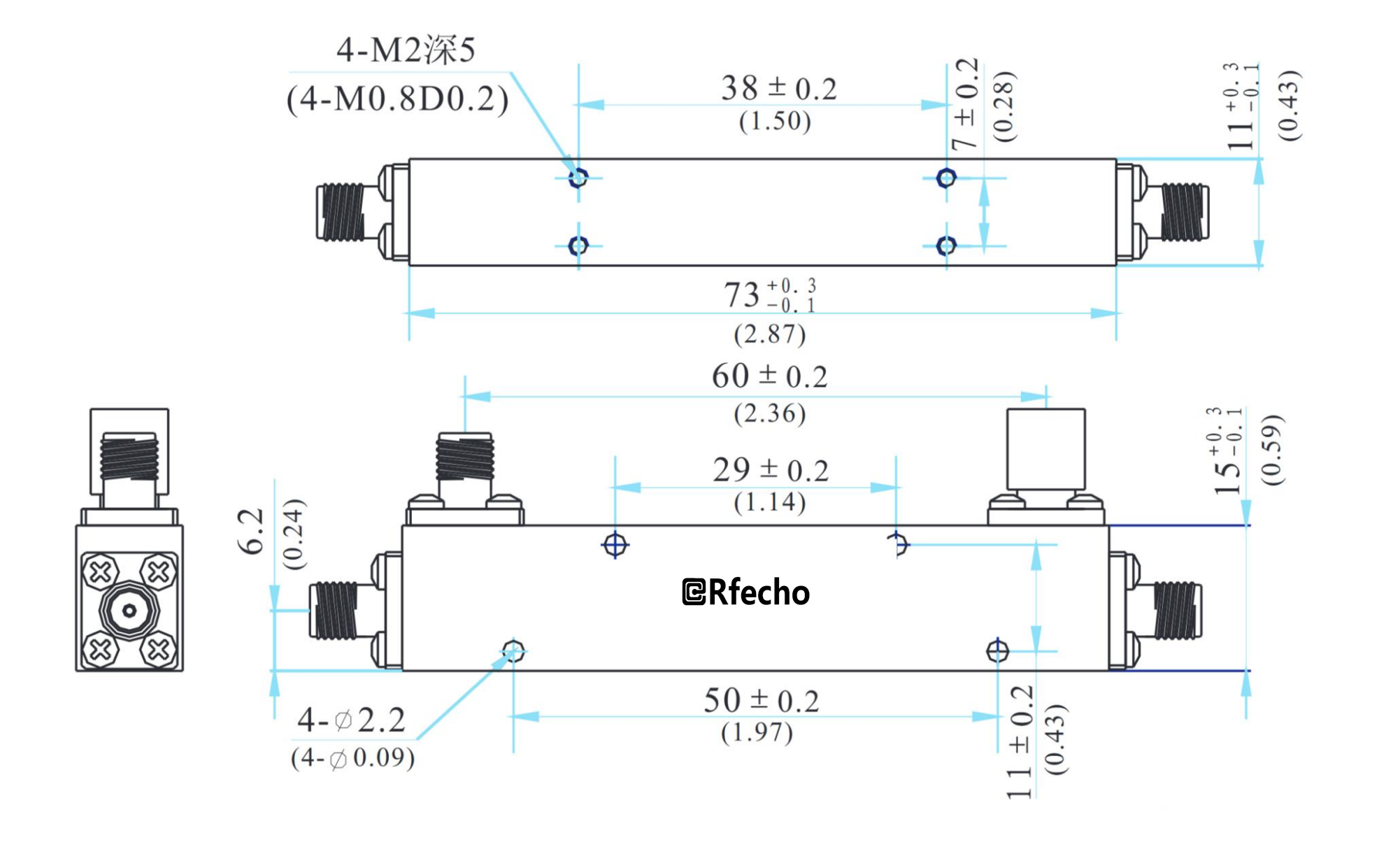

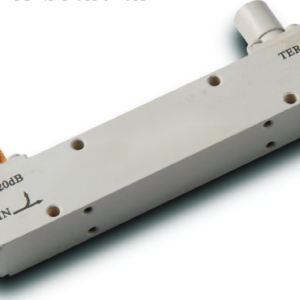

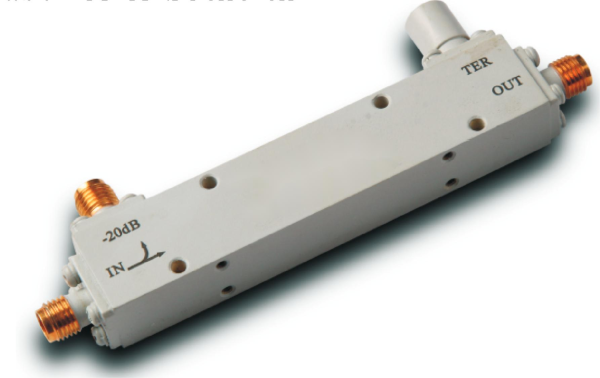

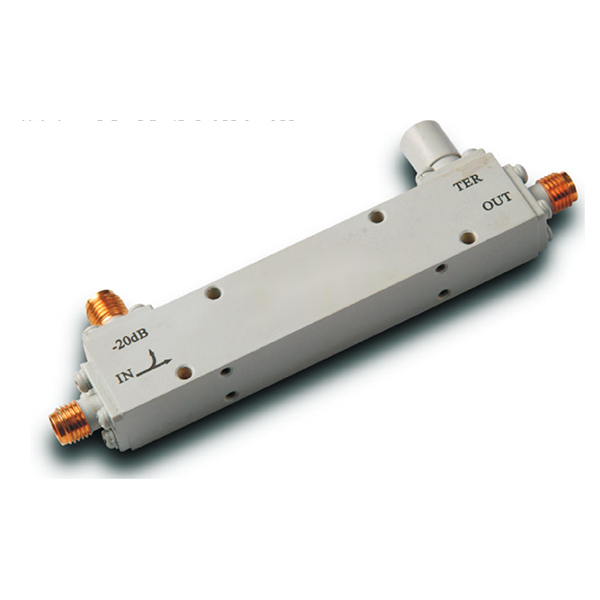

OCP-A1202-20 |
|
|
1-4GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
20±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
Covers 0.5-18GHz frequency band (Series) |
|
|
SMA connectors |
|
|
Stripline circuit structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling |
|
|
Built-in load |
|
|
Available in various coupling values |
|
|
Custom design available |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
