1-4GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 0.5-18GHz (Model specific: 1-4GHz)
Low Insertion Loss
High Directivity
High Power Handling
Built-in Termination
SMA Connectors
Stripline Structure
- Description
- Datasheet

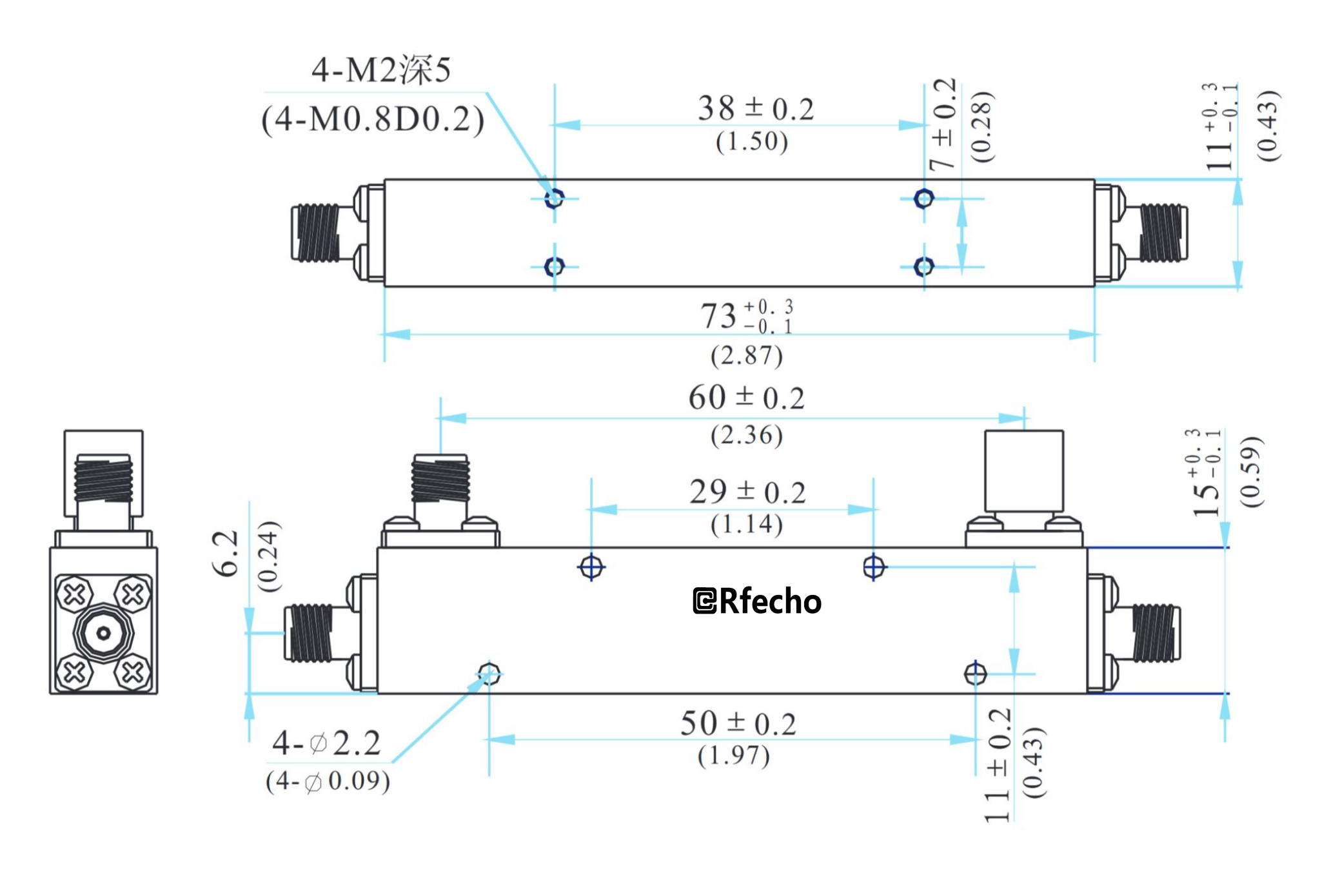

- Outline
- Reviews (0)
Description

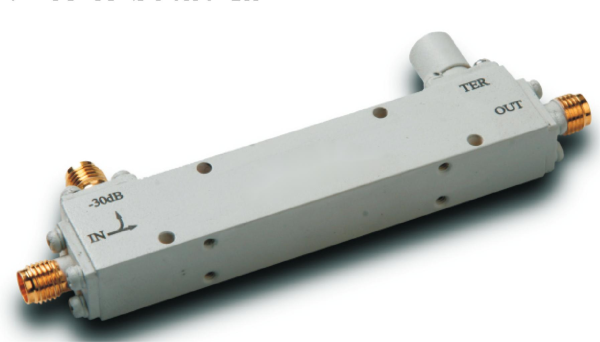

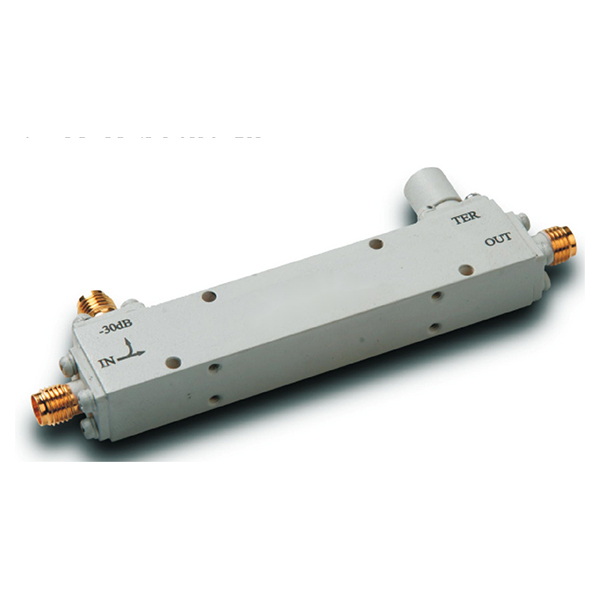

The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors, the circuit adoptsa stripline structure, featuring low insertion loss, high directivity, high power handling, and a built-in load for ease ofuse.The OPD-A1202 broadband directional coupler is mainly used in radar, communications, satellite communications,navigation, test and measurement fields for signal sampling,monitoring, unequal power distribution, and synthesis. Multiple coupling degrees are available. This series is a stan-dardized product that can be customized according to userrequirements.
OCP-A1202-30 |
|
|
1-4GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
30±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
Frequency Range: 0.5-18GHz (Model specific: 1-4GHz) |
|
|
Low Insertion Loss |
|
|
High Directivity |
|
|
High Power Handling |
|
|
Built-in Termination |
|
|
SMA Connectors |
|
|
Stripline Structure |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
