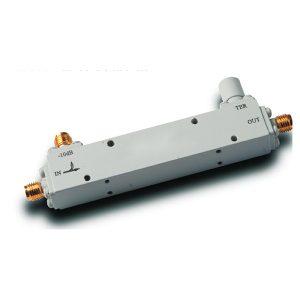

1-4GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler
Frequency Range: 0.5-18GHz
Connector Type: SMA
Stripline structure
Low insertion loss
High directivity
High power handling
Built-in load
Compact and easy to use
Standardized product with customization options
- Description
- Datasheet

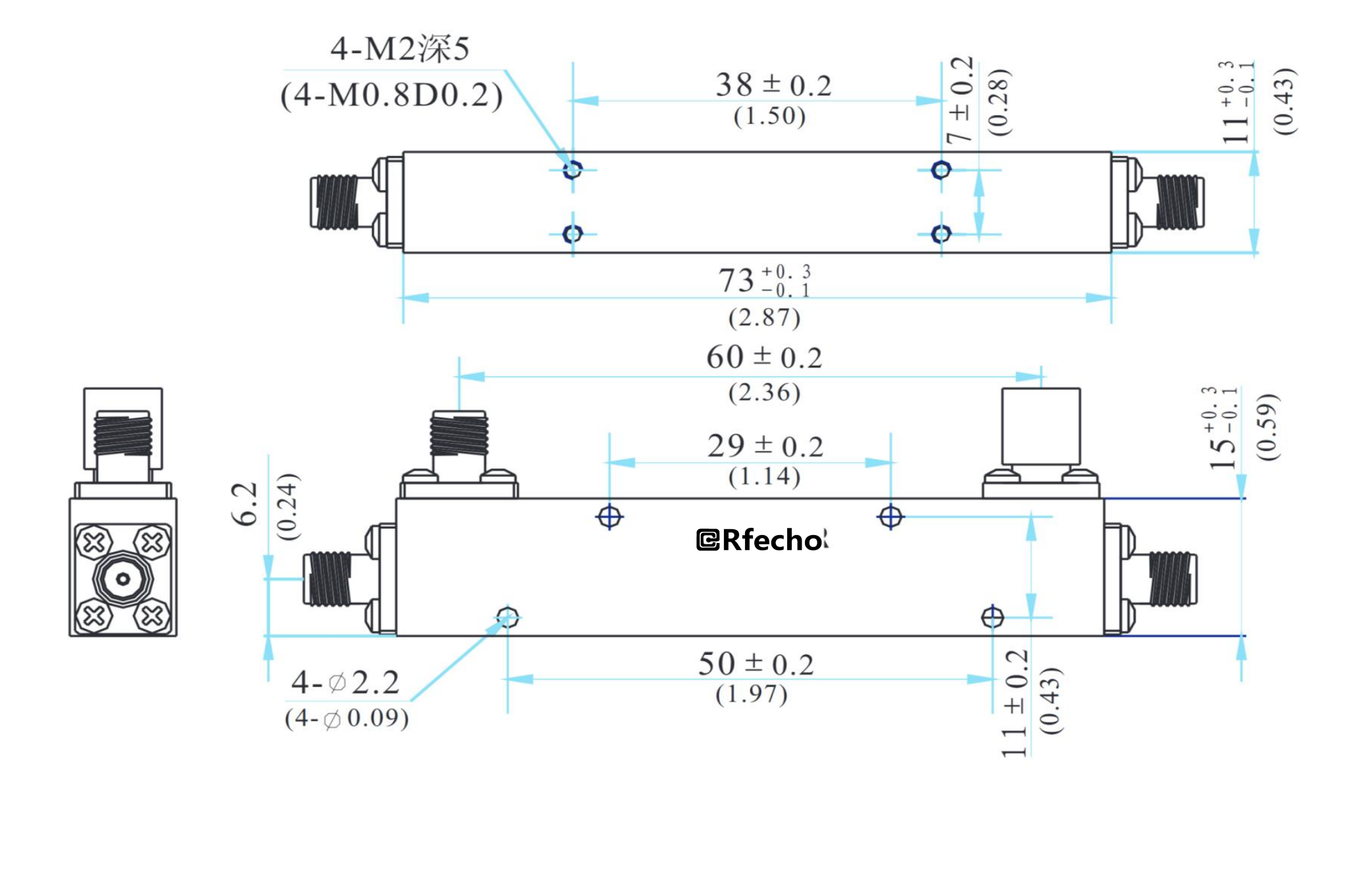

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline structure, the circuit features low insertion loss, high directivity,significant power handling capacity, and a built-in load forease of use. The OPD-A1202 broadband directional coupleris primarily used in radar, communications, satellite communications, navigation, testing, and measurement fields forsignal sampling, monitoring, and unequal power distribution.A variety of coupling degrees are available. .
OCP-A1202-10 |
|
|
1-4GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
0.5dB |
|
Coupling |
10±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
Frequency Range: 0.5-18GHz |
|
|
Connector Type: SMA |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling |
|
|
Built-in load |
|
|
Compact and easy to use |
|
|
Standardized product with customization options |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
