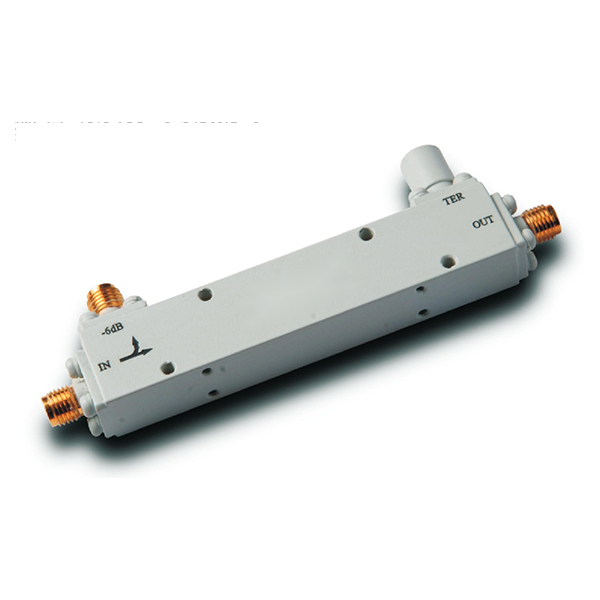

1-4GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler
Frequency Range: 0.5-18GHz (Series coverage)
Low Insertion Loss
High Directivity
High Power Handling: 50W
Built-in Load
Connector Type: SMA-K
Structure: Stripline
- Description
- Datasheet

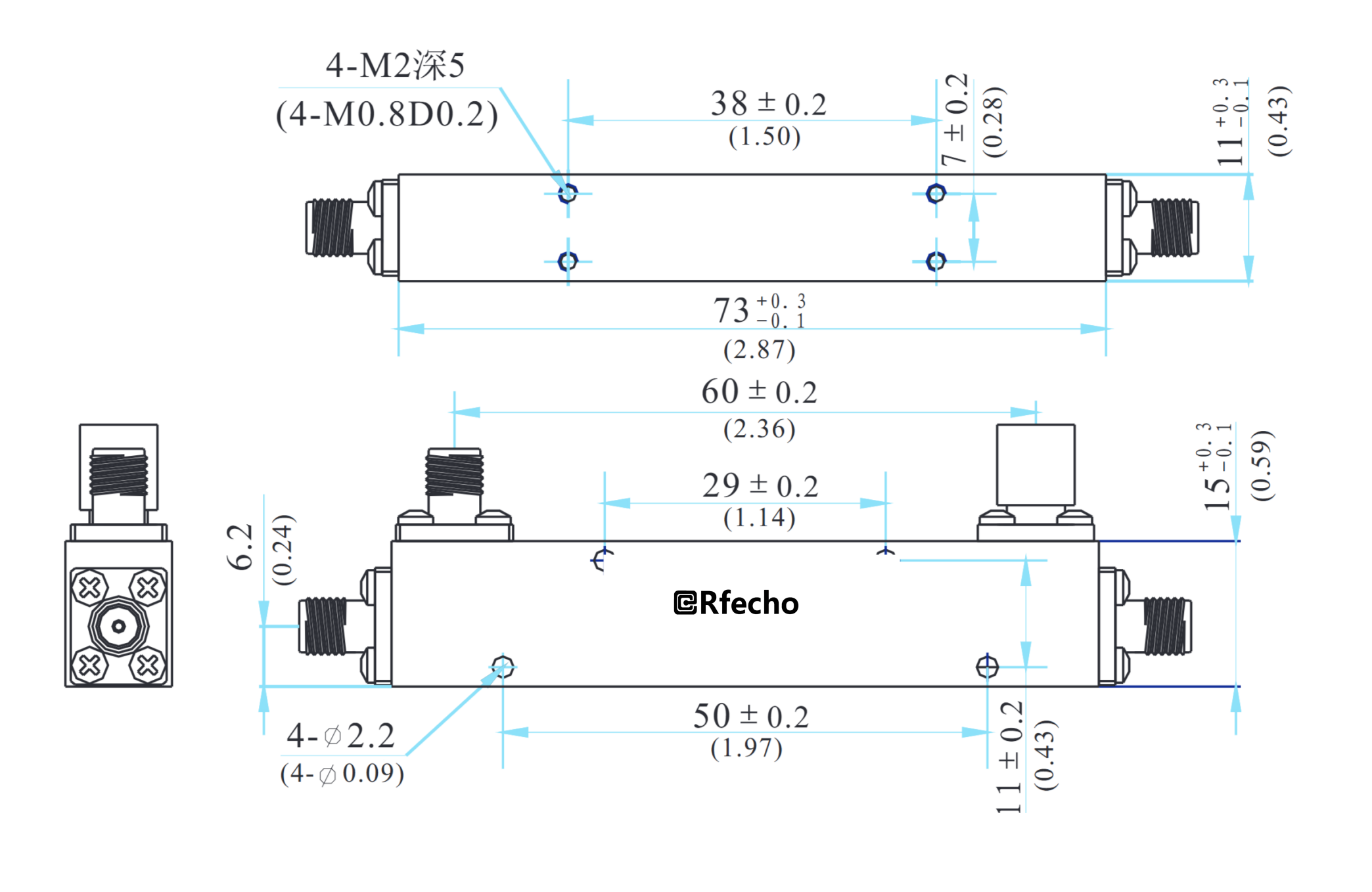

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Utilizing SMA connectors and a stripline circuit structure, they feature low insertion loss, high directivity,large power handling capacity, and a built-in load for convenient use. The OPD-A1202 broadband directional coupler isprimarily used in radar, communications, satellite communications, navigation, test and measurement fields for signalsampling, monitoring, unequal power distribution, and synthesis. Multiple coupling degrees are available. This series isa standard product which can be customized according touser requirements.
OCP-A1202-6 |
|
|
1-4GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
0.5dB |
|
Coupling |
6±1dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±0.7dB |
|
Structure |
|
|
Compliance |
Compliant with GJB-1509-1992 test requirements |
Features |
|
|
Frequency Range: 0.5-18GHz (Series coverage) |
|
|
Low Insertion Loss |
|
|
High Directivity |
|
|
High Power Handling: 50W |
|
|
Built-in Load |
|
|
Connector Type: SMA-K |
|
|
Structure: Stripline |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
