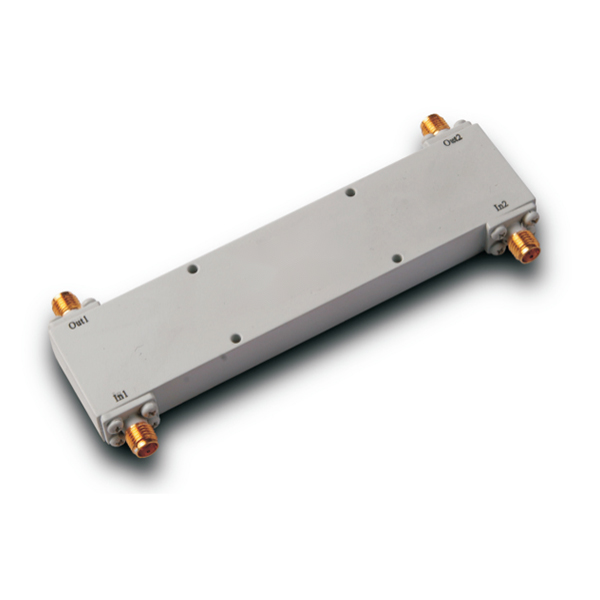

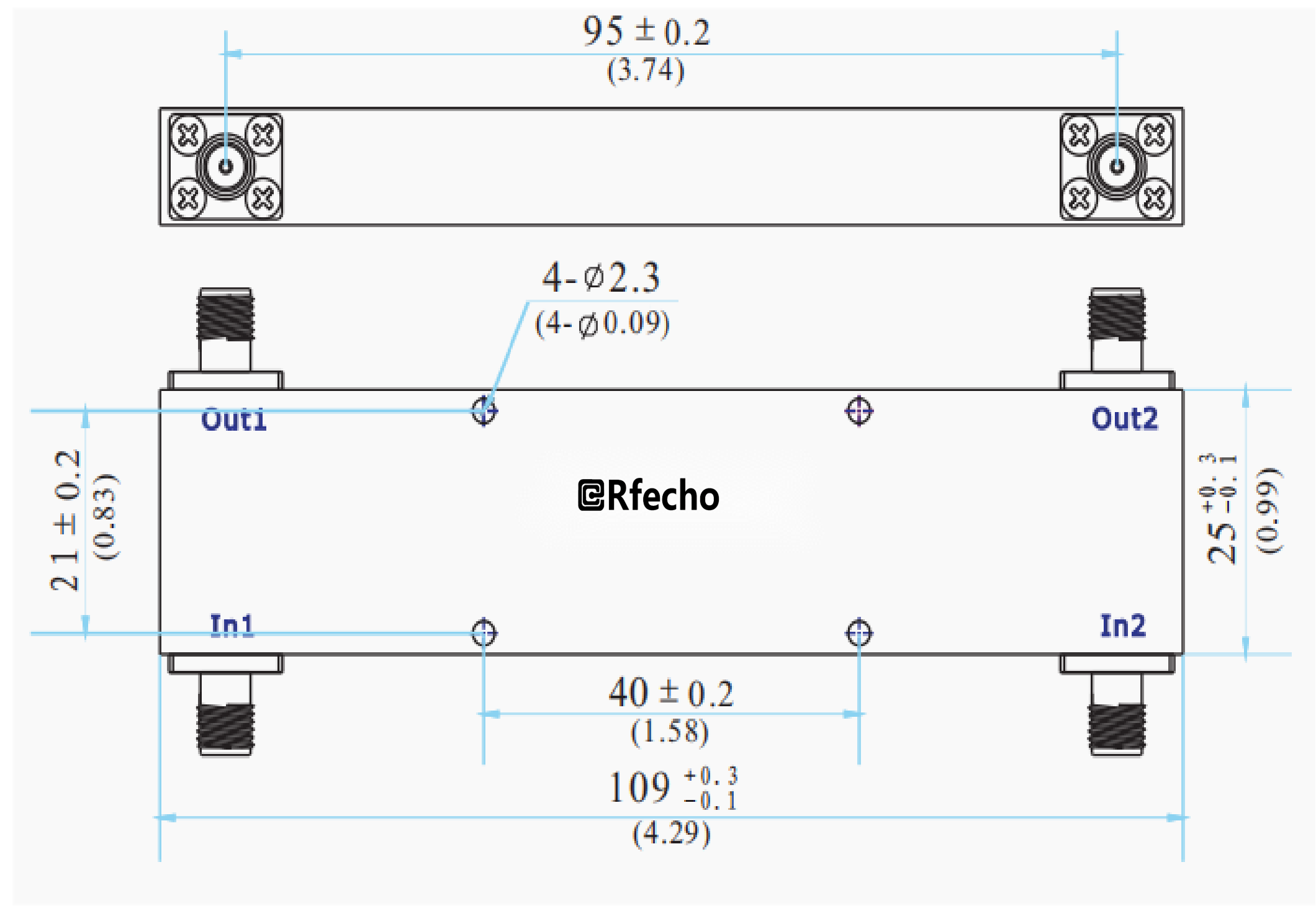

1-4GHz Broadband 90-Degree Hybrid Coupler

Description

The OPD-A2 series of 90-degree hybrid couplers adopts astripline structure, featuring low insertion loss, high isolation,excellent amplitude and phase accuracy, and high power handling capacity. The OBG-A2022 broadband 90-degreehybrid coupler, a key model in this series, is optimized forthe 1-4GHz frequency range, with a maximum insertion lossof 0.80dB, a minimum isolation of 20dB, a maximum VSWRof 1.30, excellent amplitude balance of ±0.7dB, and precisephase balance of ±5°.Consistent with the series standard, the OBG-A2022 isequipped with SMA-K connectors and a 50W high power handling capacity, engineered to withstand rigorousoperating conditions. It supports a working temperaturerange of -55~+85°C and a storage temperature range of -55~+100°C, fully complying with the stringent test items and requirements outlined in GJB-1509-1992.
