High Pass Microwave Passive Cavity Filter model OHP: 1500-13000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Microwave Passive Cavity Filter Manufactured with a passband frequency from 2GHz to 13GHz and a Cut-off frequency 1.0GHz. Our Cavity Microwave High Pass Filter provides a nominal insertion loss of ≤1.0dB across its passband and a typical rejection of ≥50dB @ DC – 1.0GHz. Since the high end cutoff frequency of High Pass Microwave Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity RF High Pass Filter has Passband VSWR of ≤1.6:1 and power handling of ≤15W. High Pass Microwave Passive Filter is manufactured with SMA Female Connector and Net weight of 0.035Kg.
2GHz to 13Hz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2GHz to 13GHz High Pass Microwave Passive Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-1500-13000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-1500-13000:

  • Cut Off Frequency: 1.0GHz,
  • Pass Band Frequency: 2-13GHz,
  • Pass Band Insertion Loss: 1.0dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥50 dB @ DC-1.0 GHz

PDF

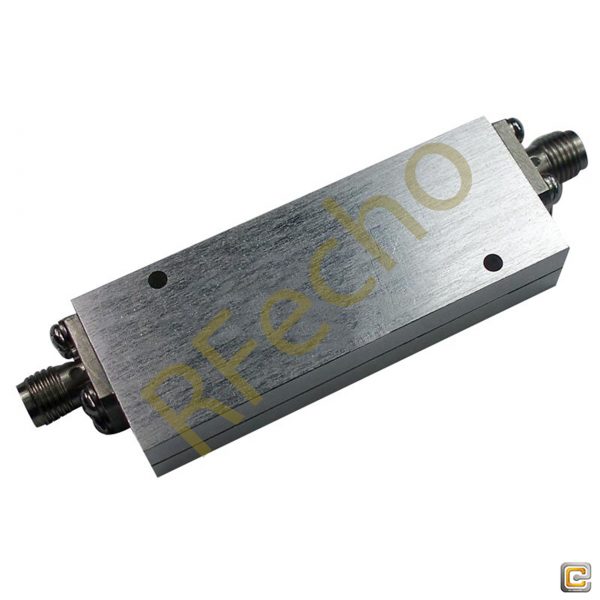

Outline

1.5 GHz to 13 GHz Rejection ≥50 dB @ DC-1.0 GHz High Pass Cavity Filter 01

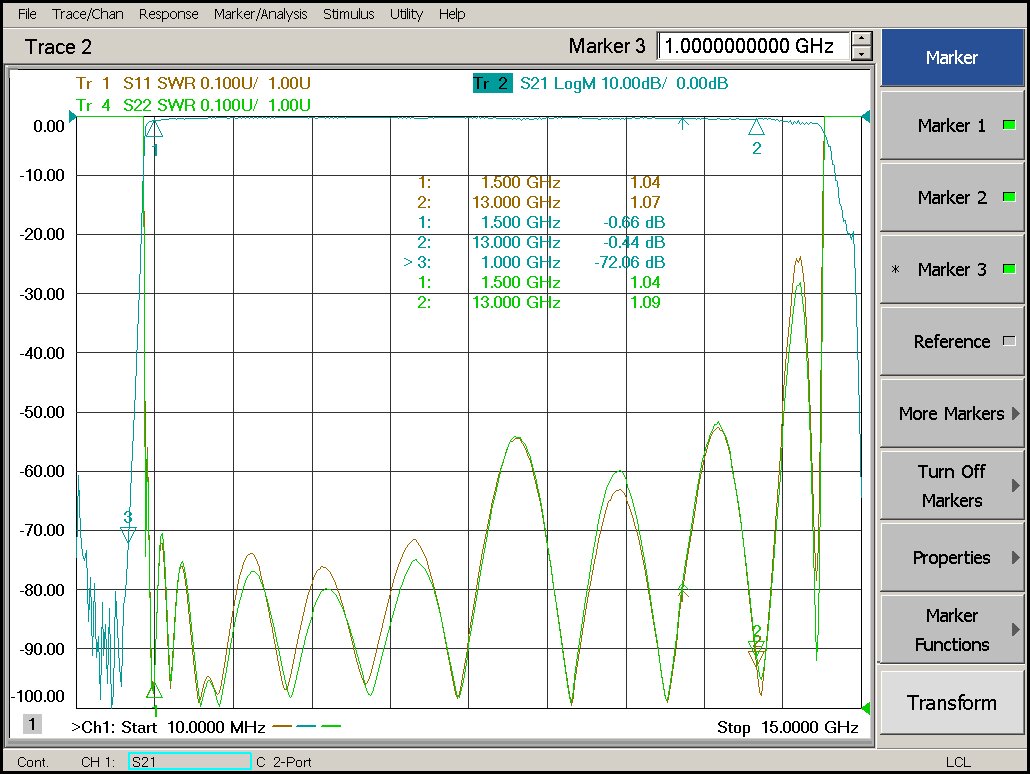

Plot

1.5 GHz to 13 GHz Rejection ≥50 dB @ DC-1.0 GHz High Pass Cavity Filter 02

Additional information

Weight 0.035 kg
Min. Pass Band Frequency (GHz)

1.5

Max. Pass Band Frequency (GHz)

13

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.0dB

VSWR

≤1.6:1

Rejection

≥50 dB @ DC -1.0 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
