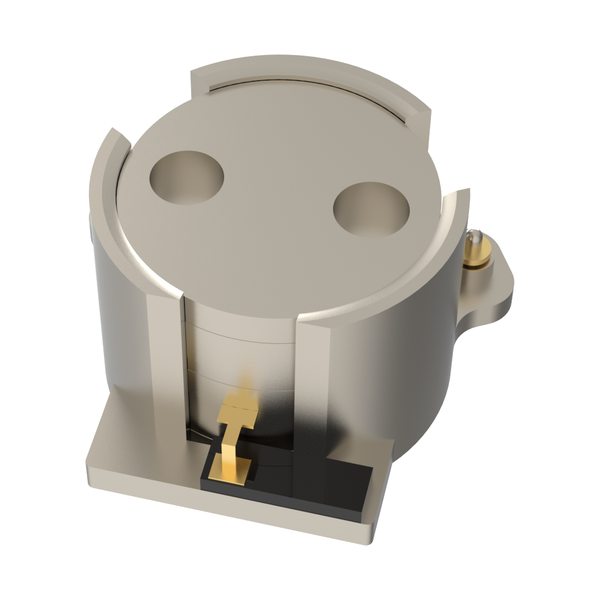

1.805 GHz to 2.17 GHz, 0.55 dB Insertion Loss, 18.0 dB Isolation, SMD Series Isolators Isolator-OG102B-1805-2170
$0.00
Surface-mount design for ease of integration
Stripline technology for consistent performance
High isolation up to 20dB
Low insertion loss down to 0.35dB
Wide operating temperature range from -40 to +125 degC
High power handling capability up to 50W Forward Power
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The product named OG102B is high-performance surface-mounted isolator designed for stripline applications, offering high isolation and low insertion loss across various frequency ranges.
OG102B-1805-2170 |
|
|
1.805 GHz to 2.17 GHz, 0.55 dB Insertion Loss, 18.0 dB Isolation, SMD Series Isolators Isolator-OG102B-1805-2170 |
|
Property |
Value |
|
Frequency (MHz) |
1805-2170 |
|
Return Loss (dB) |
18 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
0.55 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 125 |
Features |
|
|
Surface-mount design for ease of integration |
|
|
Stripline technology for consistent performance |
|
|
High isolation up to 20dB |
|
|
Low insertion loss down to 0.35dB |
|
|
Wide operating temperature range from -40 to +125 degC |
|
|
High power handling capability up to 50W Forward Power |
|
Applications |
|
|
Designed for wireless infrastructure applications, offering low insertion loss and high isolation. |
|
