10.7-12.75Ghz 400W Ku-Band BUC (DOWN)
The 10.7-12.75GHz 400W Ku-band BUC is the core product of our company. It adopts all-solid-state design, high-reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 10.7-12.75GHz, minimum saturation output power: 400W (56dBm), support for local/remote work via WEB control interface.
- Description
- Datasheet

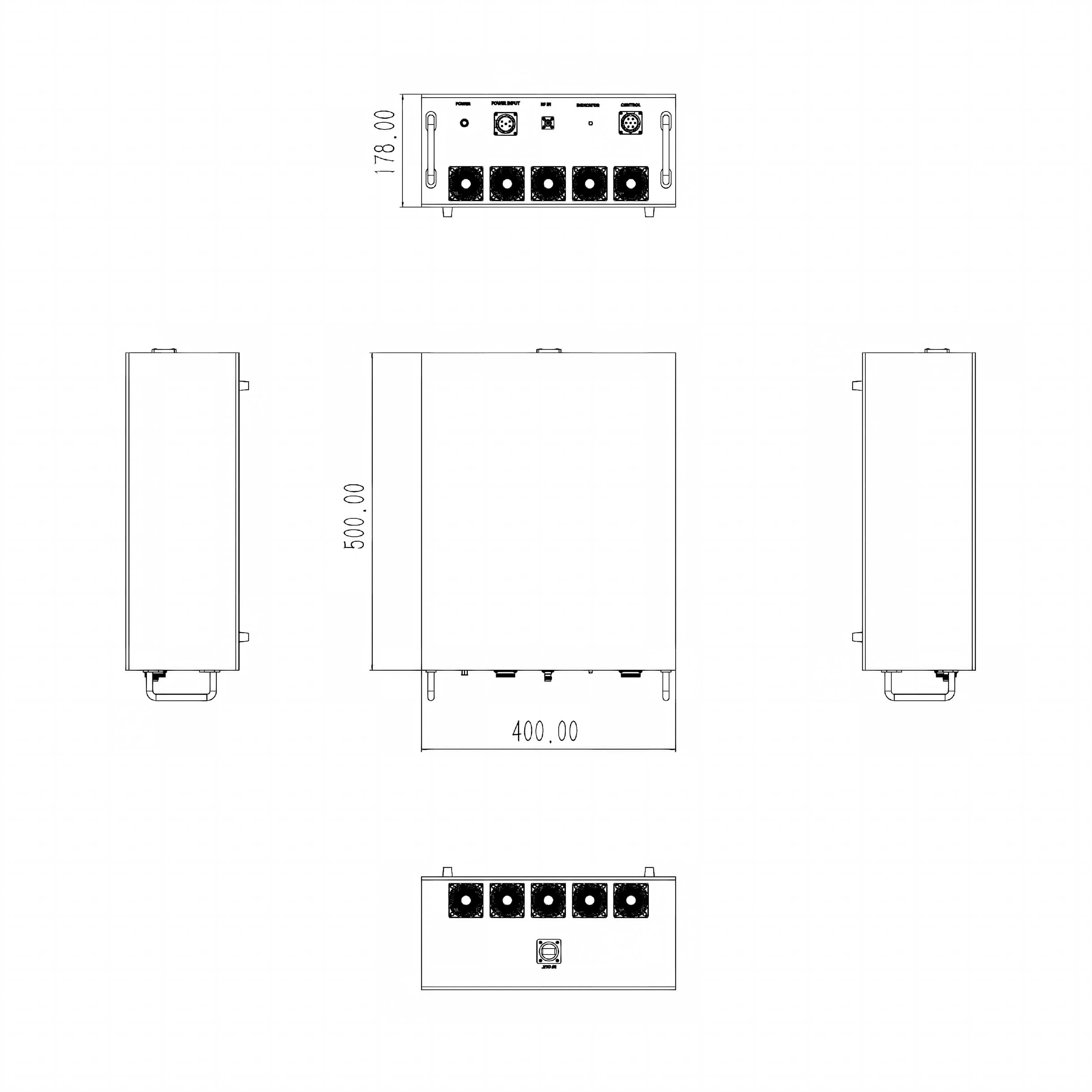

- Outline
- Reviews (0)
Description
This high-performance Ku-band Block Upconverter (BUC) is designed for satellite communications, offering a minimum saturated output power of 56dBm. It operates within the 10.7 to 12.75 GHz frequency range with a high gain of 76dB. The device features a sophisticated WEB-based control interface for real-time monitoring of operational parameters such as current, temperature, and output power. Housed in a rugged chassis, it supports a wide operating temperature range and includes built-in protection mechanisms to ensure long-term reliability in demanding environments.
OPA10701275-400W-BUC-DOWN | |
| 10.7-12.75Ghz 400W Ku-Band BUC (DOWN) | |
Property | Value |
| Output Frequency | 10.7-12.75GHz |
| RF IN (Connector Type) | N-K |
| RF OUT (Connector Type) | WR75 |
| WEB CONTROL (Connector Type) | 19pin |
| AC Power (Connector Type) | 3-pin (A, B, C) |
| Operating Temperature | -40 to +55 degC |
| Input VSWR | 2.0:1 |
| Output VSWR | 1.8:1 |
| Gain | 76dB min |
| Weight | 20.0Kg max |
| Dimensions (L x W x H) | 500mm x 400mm x 178mm |
| AC Power (Description) | 220V AC (L, N, GND) |
| In-band Flatness (54 MHz) | +/-0.75dB |
| In-band Flatness (Full 500 MHz) | +/-2.0dB |
| Output Power (Psat) | 56dBm min |
| Output Power Adjustment | 0-20dB / 1.0 step |
| Power Consumption | <= 2500W |
| Protection Mechanism | PA Overheat Protection (>=80 degC) |
| RF IN (Description) | Intermediate Frequency Input |
| RF OUT (Description) | Radio Frequency Output |
| Spurious | -50dBc max |
| Third Order Intermodulation (IMD3) | -25dBc min |
| WEB CONTROL (Description) | Ethernet/Control Interface |
| Working Voltage | 220V AC |
Features | |
| High saturated output power of 56dBm minimum across the Ku-band.; Integrated HTTP WEB control interface for remote monitoring of current, power, and temperature.; Wide gain adjustment range of 20dB with precise 1.0dB stepping.; Robust environmental design with an operating temperature range of -40°C to +55°C.; Comprehensive protection features including automatic PA overheat shutdown at 80°C. | |
Applications | |
| Widely used in satellite communication, VSAT systems, earth station transmitters, broadcast equipment, and other fields. | |
