10 V / 135000 uF CAK36S Square High-Energy Composite Tantalum Capacitor
CAK36S-10-135000-K-SE4-F
Rated Voltage (Ur): 10 V
Capacitance (CR): 135000 uF
Case Code: SE4
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The CAK36S-10-135000-K-SE4-F is a square-shaped hermetically sealed high-energy composite tantalum electrolytic capacitor rated at 10 V and 135000 uF with tolerance code K (+/-10%). Key limits include tanδ of 130% max at 100 Hz, ESR of 0.04 Ω max at 1 kHz, and DC leakage of 600 uA max at 25degC. It operates from -55degC to +150degC with category voltage 6 V.
CAK36S-10-135000-K-SE4-F |
|
|
10 V / 135000 uF CAK36S Square High-Energy Composite Tantalum Capacitor |
|
Property |
Value |
|
Rated Voltage (Ur)(V) |
10 |
|
Category Voltage (Uc)(V) |
6 |
|
Surge Voltage (Us)(V) |
11 |
|
Capacitance (CR)(μf) |
135000 |
|
Max. DC Leakage (25degC)(μA) |
600 |
|
Max. DC Leakage Current (125degC/150degC)(μA) |
4800 / 6000 |
|
Max. tanδ (100 Hz)(%) |
130 |
|
Max. ESR (1 kHz)(Ohm) |
0.04 |
|
Max. Impedance (100 Hz)(Ohm) |
1 |
|
Capacitance Change (-55degC / 125degC / 150degC)(%) |
-80 / 80 / 85 |
|
Capacitance Tolerance |
K: ±10% |
|
Case Size |
36 × 36 × 16 mm |
|

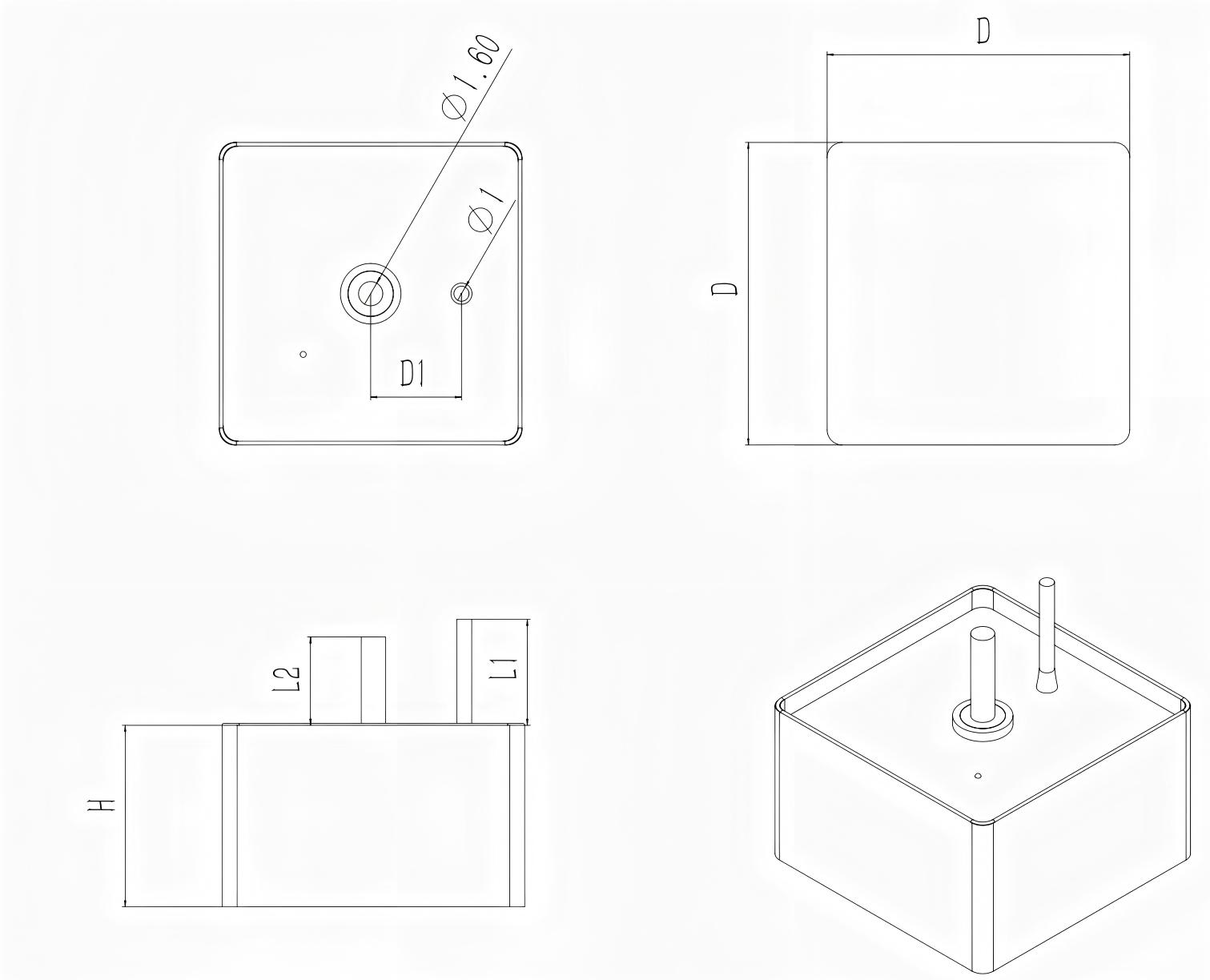

Dimensions |
L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm |
|
Operational Temperature (°C) |
-55 to +150 (derate voltage above +85) |
|
Storage Conditions |
-62degC to +130degC; RH <=70% |
|
Pin Type |
<=18 months from warehouse entry |
Features |
|
|
Superior Electrical Stability |
|
|
Compact Design |
|
|
High Reliability |
|
|
Long-Lasting Service Life |
|
|
Excellent Shelf-Stability |
|
Applications |
|
|
For High-reliability military electronic equipment used in aviation,aerospace, weapons, satellites, radar, and other applications, where DC, pulsating, and low ripple circuits are required. |
|
