10 V / 150000 uF CAK36F Hermetically Sealed High-Energy Composite Tantalum Capacitor
CAK36F-10-150000-K-FE5-E
Rated Voltage (Ur): 10 V
Category Voltage (Uc): 6 V
Surge Voltage (Us): 11 V
Capacitance (CR): 150000 uF
Capacitance Tolerance: +/-10% (Code K)
Case Code: FE5 / Size: 36 x 18
- Description
- Datasheet

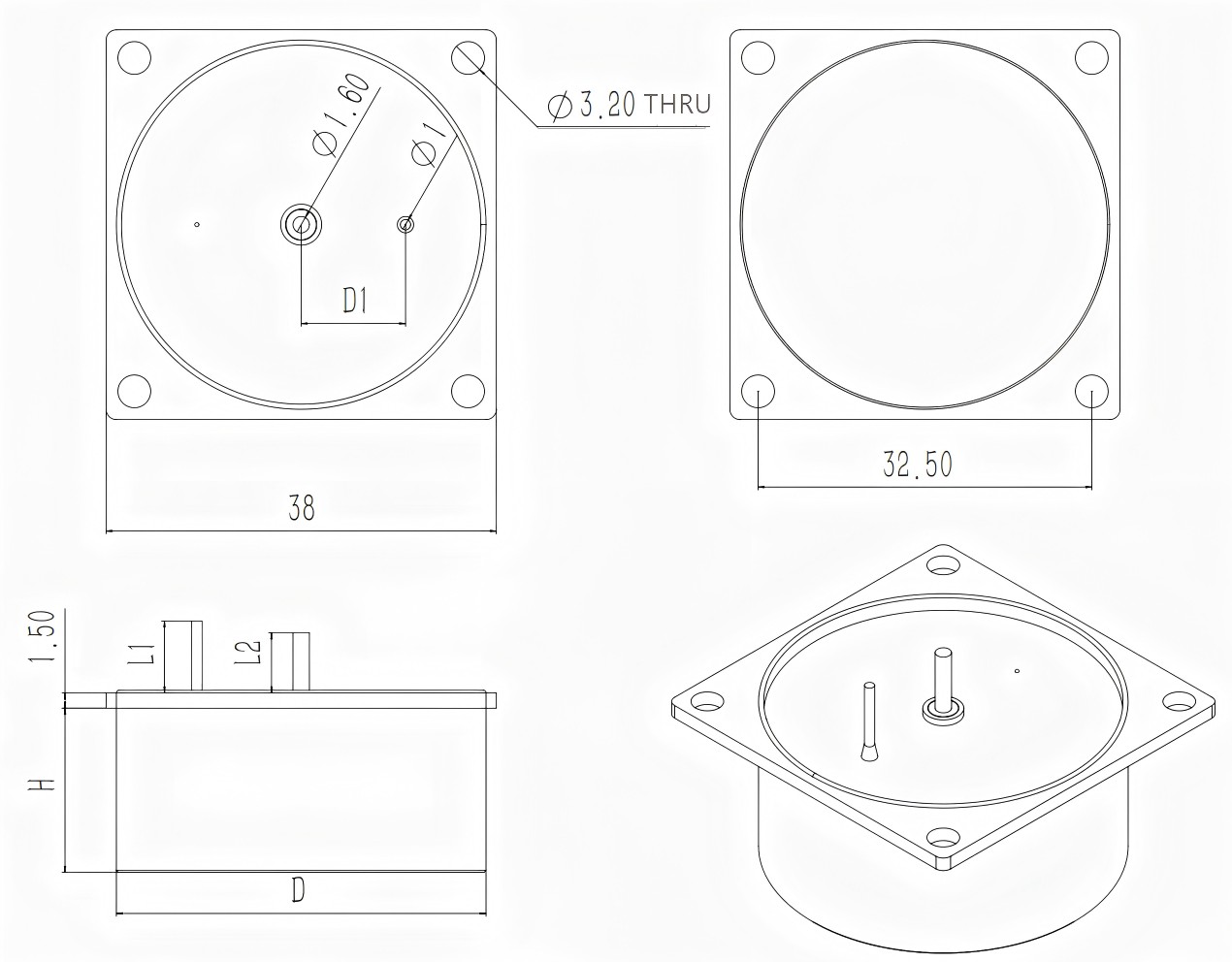

- Outline
- Reviews (0)
Description
The CAK36F-10-150000-K-FE5-E is a flange-mounted hermetically sealed high-energy composite tantalum electrolytic capacitor rated at 10 V and 150000 µF with tolerance code K (+/-10%). The rated voltage is derated to 6 V for high-temperature operation, with a surge voltage of 11 V. Key electrical limits include tanδ of 190% max at 100 Hz, ESR of 0.025 Ω max at 1 kHz, DC leakage current of 400 uA max at 25degC and 3200 / 4000 uA max at 125degC/150degC, and impedance of 1 Ω max at 100 Hz. Capacitance change is -80 / +80 / +85% at -55degC and +60%/+70% at 125degC/150degC. The device operates from -55degC to +150degC, with voltage derating required above +85degC, and conforms to GJB733B-2011 and Q/TCPC2002-2024.
CAK36F-10-150000-K-FE5-E | |
| 10 V / 150000 uF CAK36F Hermetically Sealed High-Energy Composite Tantalum Capacitor | |
Property | Value |
| Rated Voltage (Ur)(V) | 10 |
| Category Voltage (Uc)(V) | 6 |
| Surge Voltage (Us)(V) | 11 |
| Capacitance (CR)(uf) | 150000 |
| Max. DC Leakage (25degC)(uA) | 400 |
| Max. DC Leakage Current (125degC/150degC)(uA) | 3200 / 4000 |
| Max. tanδ (100 Hz)(%) | 190 |
| Max. ESR (1 kHz)(Ohm) | 0.025 |
| Capacitance Change (-55degC / 125degC / 150degC)(%) | -80 / 80 / 85 |
| Capacitance Tolerance | K: +/-10% |
| Pin Definition | Polarized Positive Terminal |
| Mounting Type | Flange Mount (Type E) |
| Case Size | φ36 × 18 mm |
| Dimensions | D: 36+/-0.5 mm; H: 18+/-0.5 mm |
| Operational Temperature (°C) | -55 to +150 (derate voltage above +85) |
| Storage Temperature (°C) | -62degC to +130degC |
| Storage Conditions | RH <70% |
| Storage Life | ≤18 months from warehouse entry |
Features | |
| Superior Electrical Stability | |
| Compact Design | |
| High Reliability | |
| Long-Lasting Service Life | |
|
| |
| Excellent Shelf-Stability | |
Applications | |
| For High-reliability military electronic equipment used in aviation,aerospace, weapons, satellites, radar, and other applications, where DC, pulsating, and low ripple circuits are required. | |
