10 V / 600000 uF CAK36M High-Temperature (150degC) High-Energy Hybrid Tantalum Capacitor
CAK36M-10-600000-M-B3
Rated Voltage (Ur): 10 V
Capacitance (CR): 600000 uF
Capacitance Tolerance: +/-20% (Code M)
Case Code: B3
Operating Temperature: -55 to +125°C
Maximum Operating Temperature: 150°C
- Description
- Datasheet

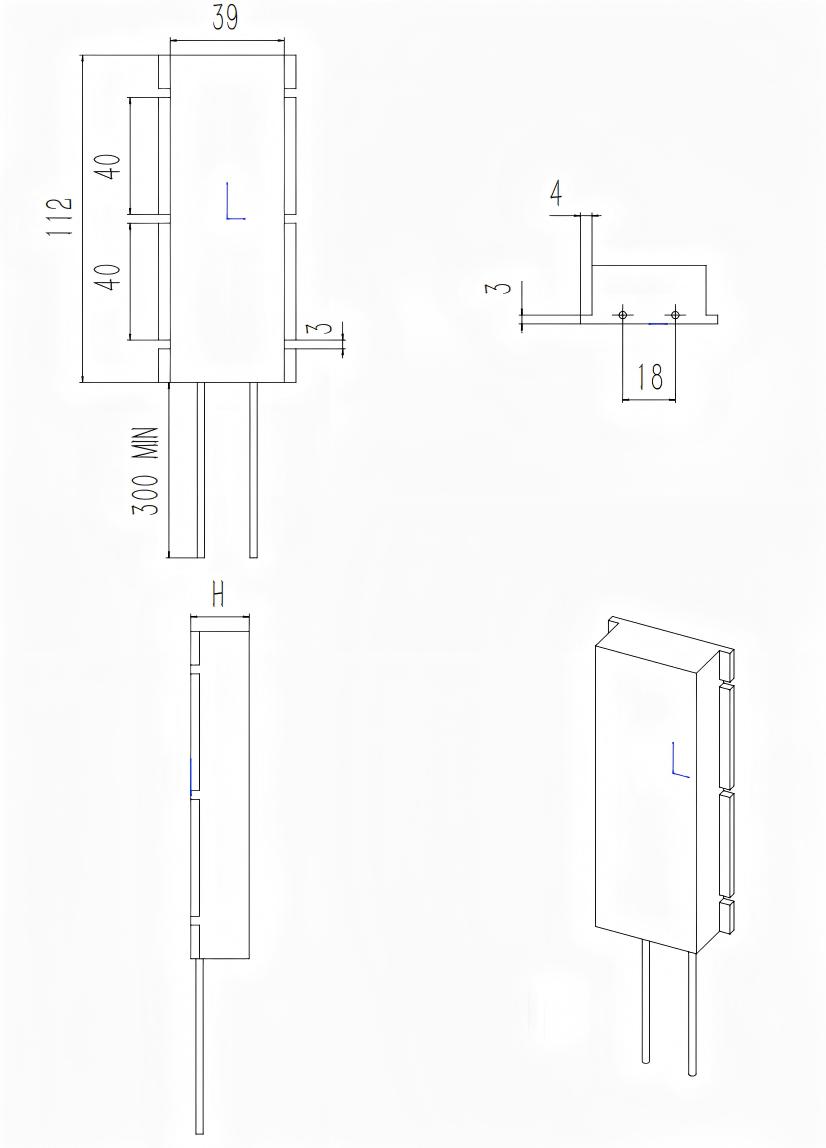

- Outline
- Reviews (0)
Description
The CAK36M-10-600000-M-B3 is a high-temperature (150°C) high-energy hybrid tantalum capacitor rated at 10 V and 600000 uF with tolerance code M (+/-20%). It features a high-strength insulated metal case with rectangular design and single-side lead-out. The capacitor offers stable electrical performance, high reliability, good storage stability, and high energy density per volume. It supports frequent charge/discharge cycles and operates from -55°C to +125°C, with a maximum allowable operating temperature up to 150°C. This capacitor is suitable for energy storage, hold-up time, filtering and power compensation in high-reliability aerospace, defense and advanced industrial electronics applications.
CAK36M-10-600000-M-B3 | |
| 10 V / 600000 uF CAK36M High-Temperature (150degC) High-Energy Hybrid Tantalum Capacitor | |
Property | Value |
| Rated Voltage (Ur)(V) | 10 |
| Capacitance (CR)(uf) | 600000 |
| Max. DC Leakage (5 minutes at Rated Voltage)(uA) | 900 |
| Max. ESR (1 kHz)(Ohm) | 0.025 |
| Outline Size (L*W*H)(mm) | 112*39*23 |
Features | |
| Superior Electrical Stability | |
| Compact Design | |
| High Reliability | |
| Long-Lasting Service Life | |
| Excellent Shelf-Stability | |
Applications | |
| For High-reliability military electronic equipment used in aviation,aerospace, weapons, satellites, radar, and other applications, where DC, pulsating, and low ripple circuits are required. | |
