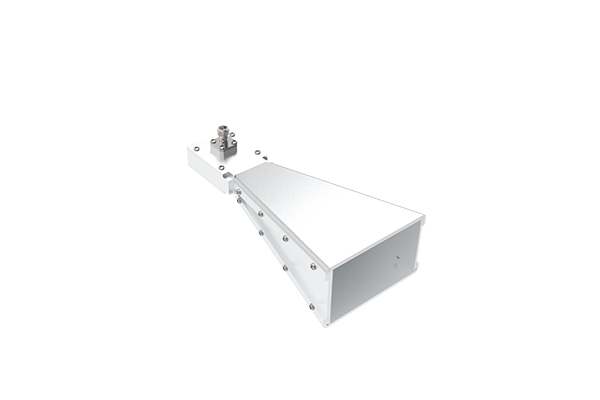

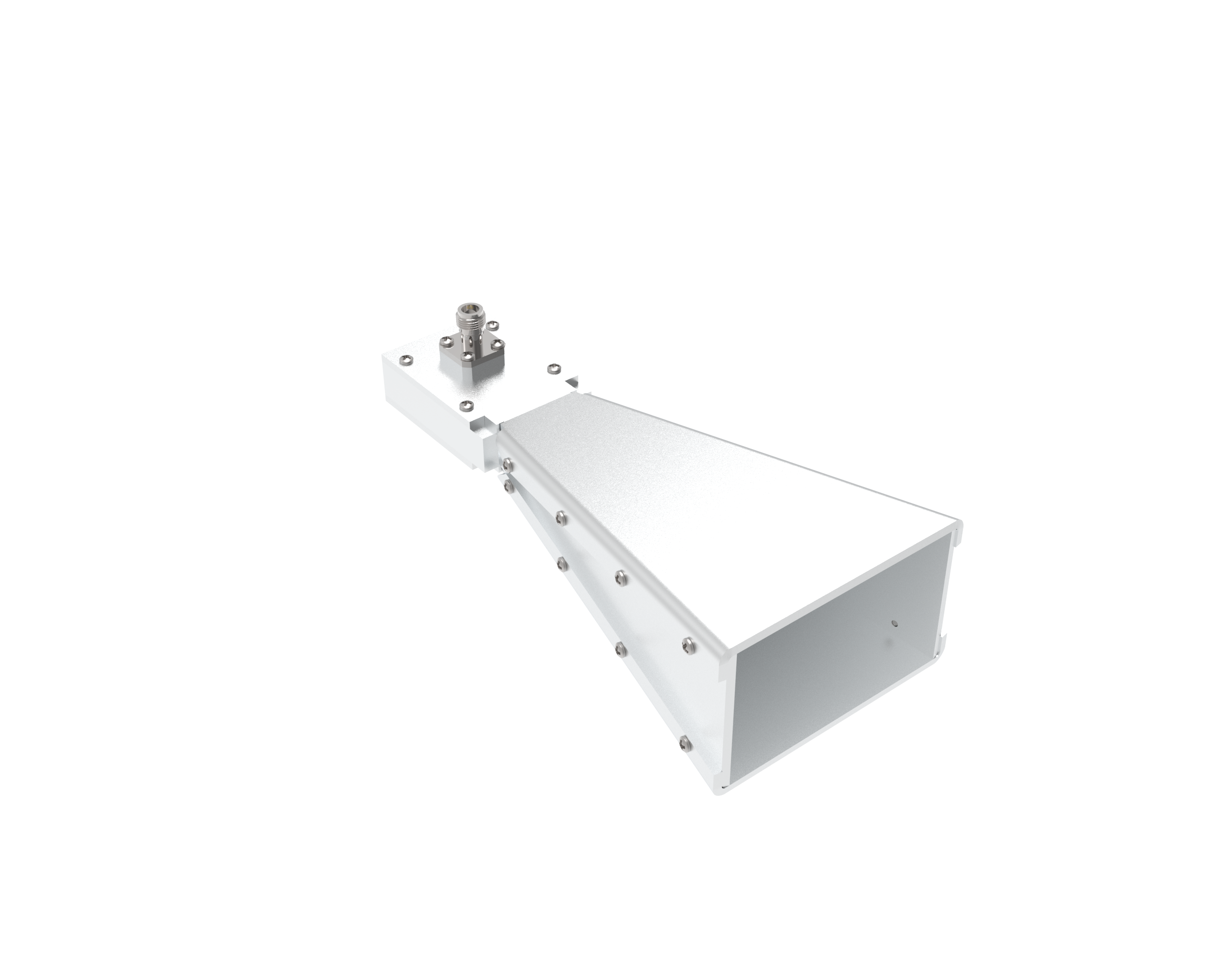

15 dBi Gain, 10 GHz to 15 GHz, WR-75 Waveguide, Lite Standard Gain Horn Antenna
Frequency: 10-15GHz
Gain: 15dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: H 30° / V 30°
Waveguide: WR-75
Material: AI
Light Weight OLB-75-15-L Standard Gain Horn antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups.
- Description
- Datasheet
- Reviews (0)
Description
OLB-75-15-L is a lite version of the OLB-75-15, that offers the gain of 15 dBi across the band and a square cover flange. It is manufactured precisely providing accurate, consistent, and reliable performance.This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-75-15-L has an H-plane & V-Plane beamwidth of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI.
OLB-75-15-L |
|
|
15 dBi Gain, 10 GHz to 15 GHz, WR-75 Waveguide, Lite Standard Gain Horn Antenna |
|
Property |
Value |
|
Min. Frequency (GHz) |
10 |
|
Max. Frequency (GHz) |
15 |
|
Gain (dBi) |
15 |
|
Flange |
M3922170-004 and-005 |
|
HPBW 3 dB Beamwidth |
H 30° / V 30° |
|
Waveguide |
WR-75 |
|
Material |
AI |
|
Polarization |
Linear |
|
Impedance(Ohm) |
50 |
Features |
|
|
Low VSWR |
|
|
Light Weight |
|
|
Linear Polarization |
|
|
Low Return Loss |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
Array Elements |
|
