1GHz-6GHz 200W RF Power Amplifier

1GHz-6GHz 200W RF Power Amplifier

The 1GHz-6GHz 200W product is the core product of our company. It adopts all-solid continuous wave scheme, redundancy and high reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 1GHz-6GHz, minimum saturation output power: 200W, support for local/remote work

SKU: OPA100600-200W Categories: Active Device, EMC Power Amplifier

Description

SPEC

EMC POWER AMPLIFIER

1GHz-6GHz 200W RF Power Amplifier

OPA100600-200W

The 1GHz-6GHz 200W product is the core product of our company. It adopts all-solid continuous wave scheme, redundancy and high reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 1GHz-6GHz, minimum saturation output power: 200W, support for local/remote work

Property

Value

Min Frequency

1GHz

Max. Frequency

6GHz

Gain (dBi)

53

VSWR

2

Output Power(W)

200

Flatness (dB)

±3

Voltage (V)

220

Power Dissipation (W)

3500

Features

Reasonable design and high heat dissipation efficiency

High reliability of built-in control, monitoring, and protection circuits

Standardized chassis design for easy cabinet installation

Applications

Widely used in wireless communication

Medical

Electromagnetic compatibility and other fields

PDF

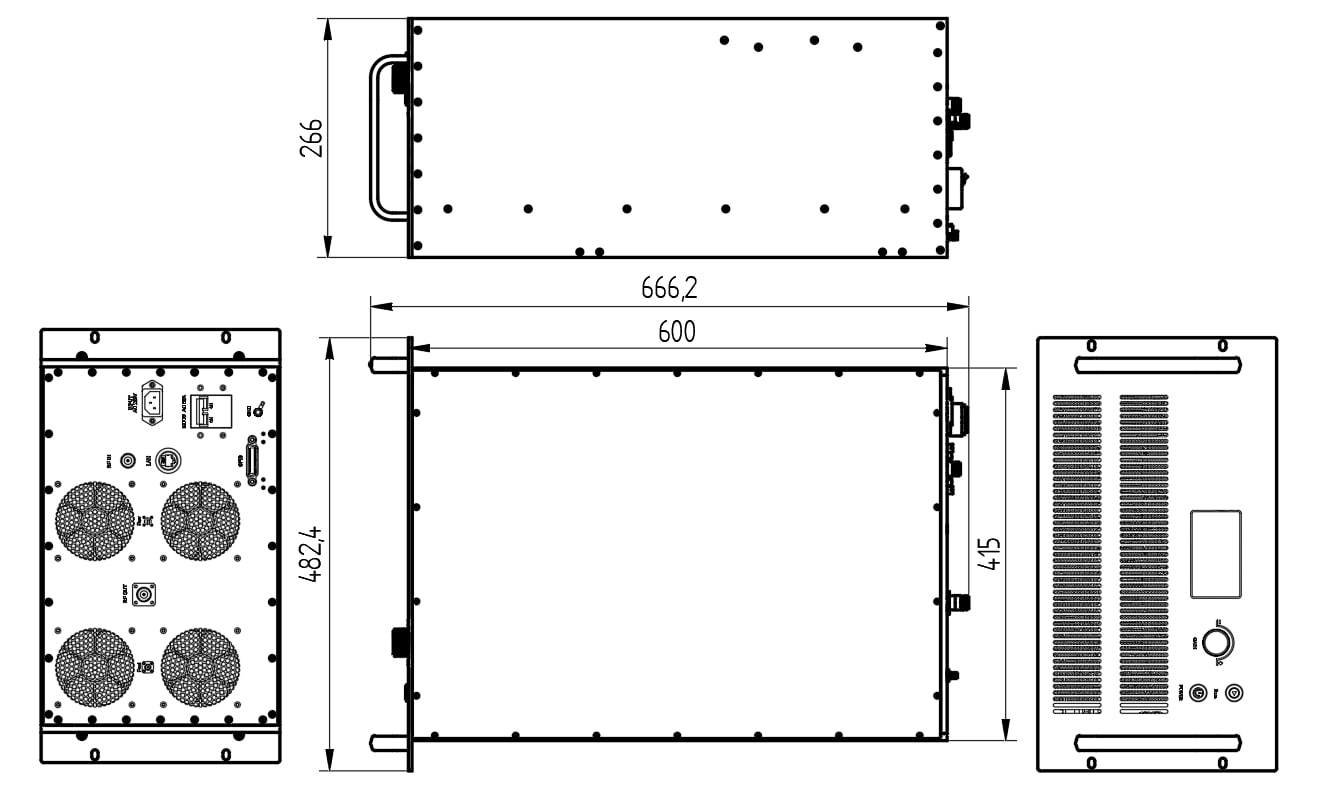

Outline

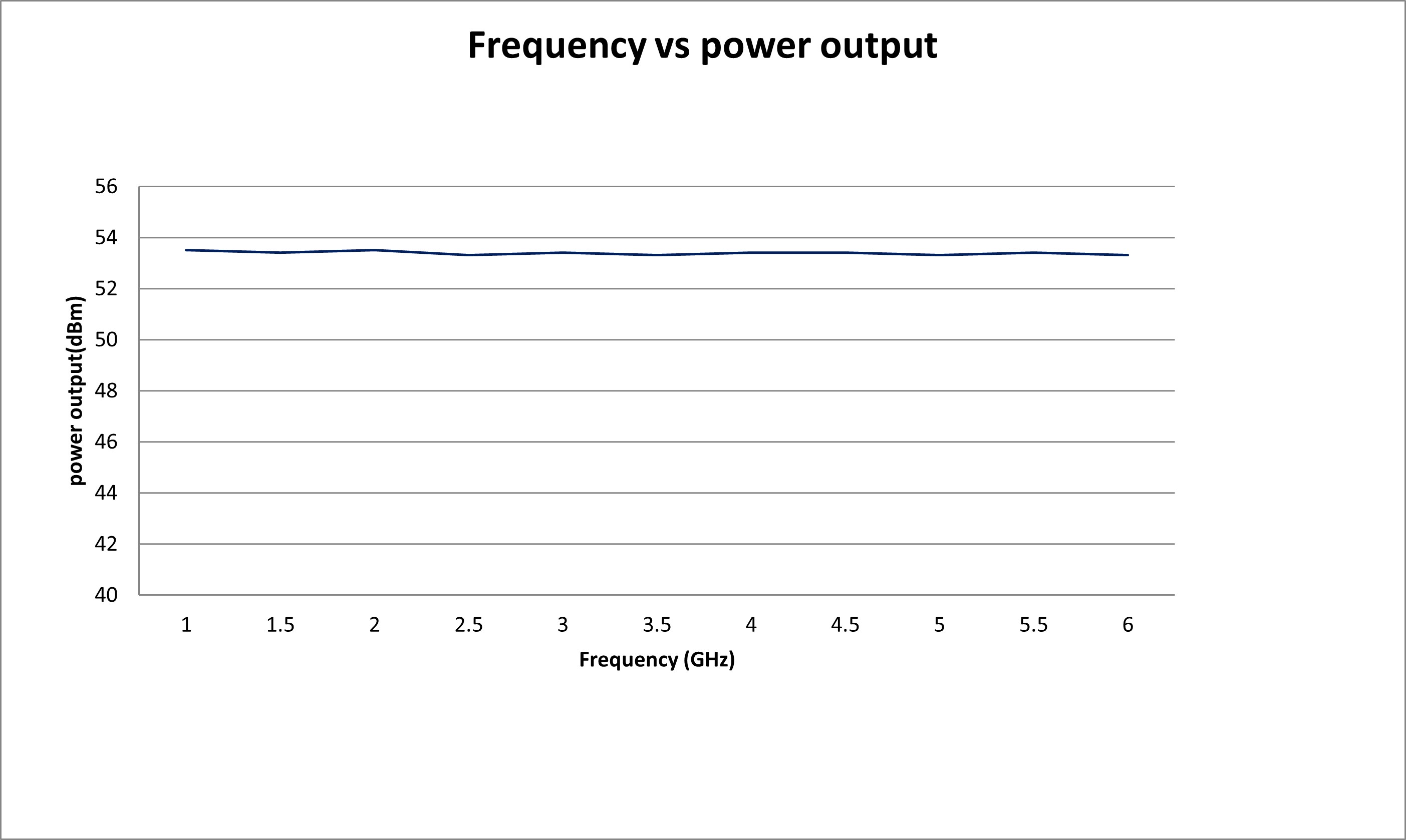

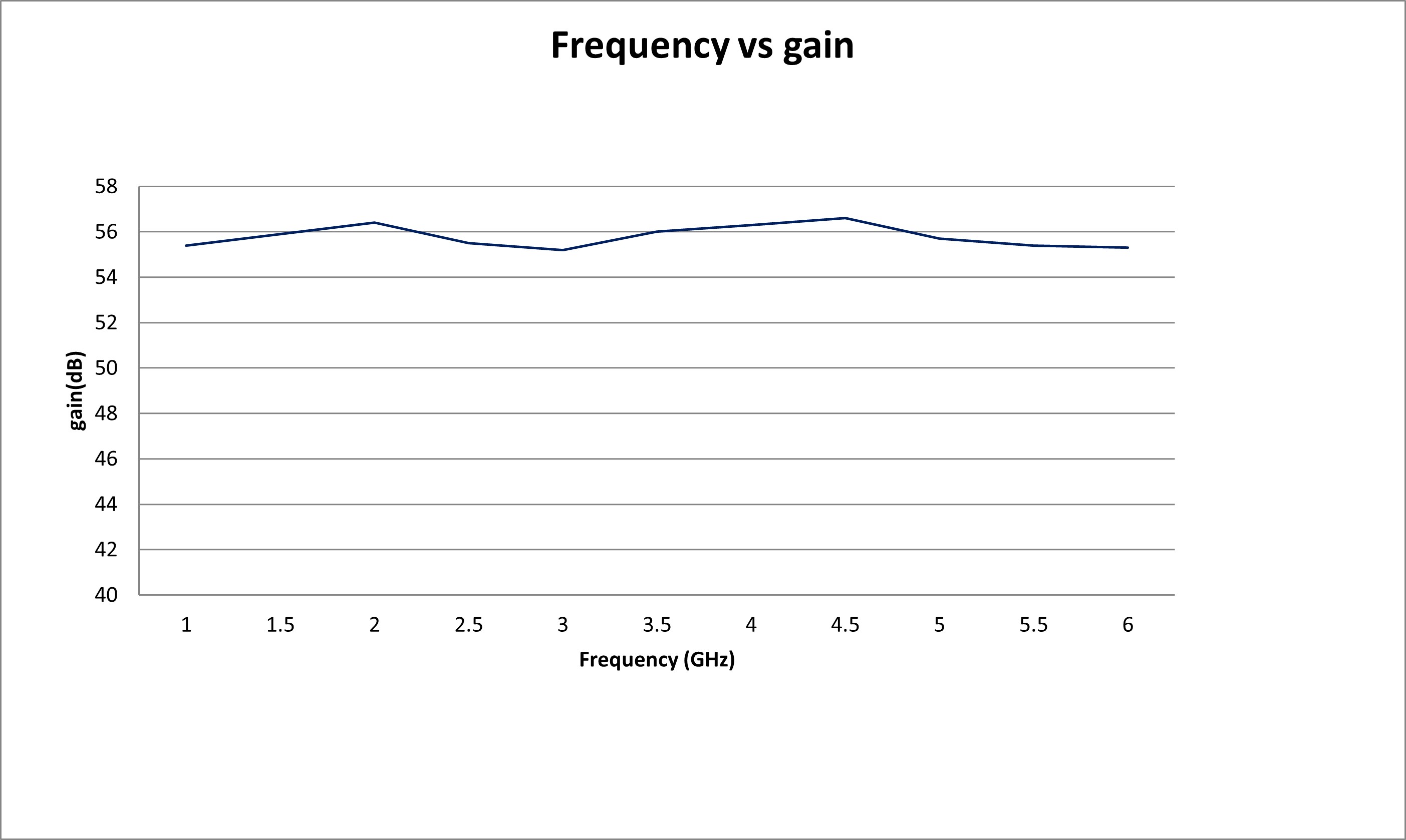

Plot

Additional information

Min Frequency

1GHz

Max Frequency

6GHz

Gain (dBi)

53

VSWR

2

Output Power(W)

200

Flatness (dB)

±3

Voltage (V)

220

Power Dissipation (W)

3500
