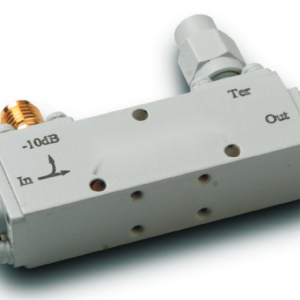

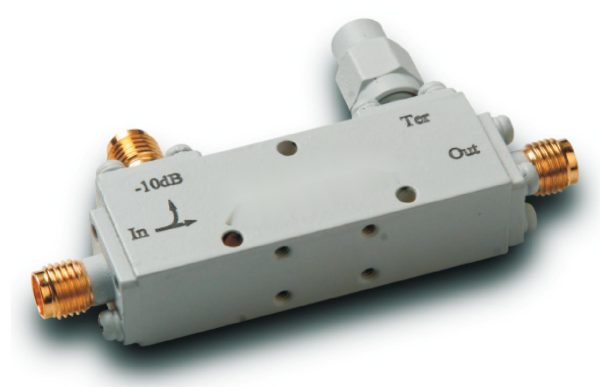

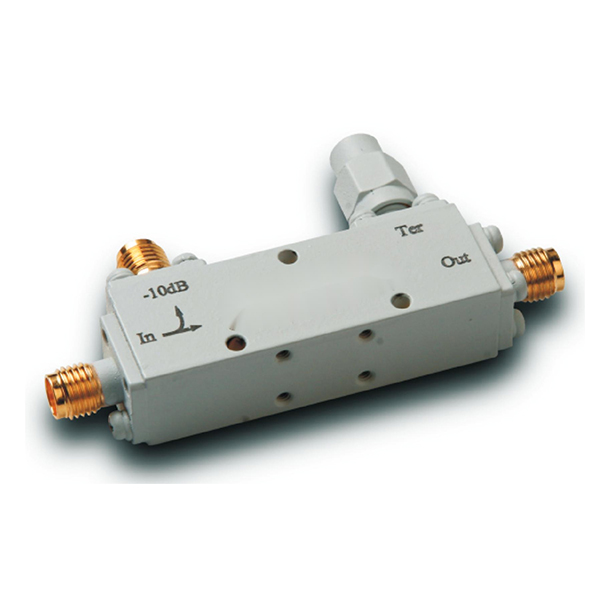

2-18GHz 0.7dB OCP-A1 Series General Purpose Directional Coupler
$0
Covers 0.5-18GHz frequency range (Series)
Uses SMA connectors
Stripline circuit structure
Low insertion loss
High directivity
High power handling
Internal load
Available in various coupling degrees
- Description
- Datasheet

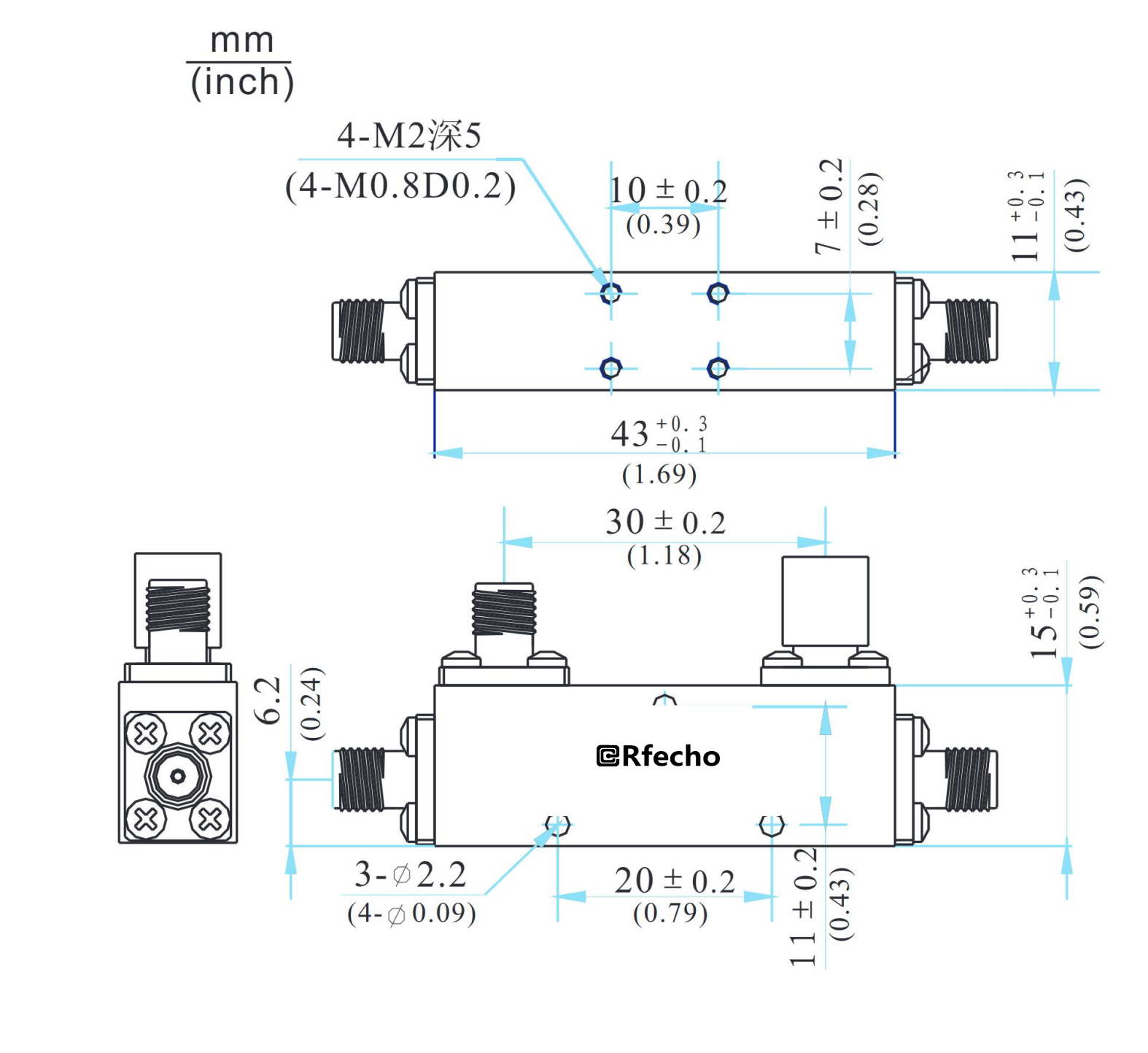

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline structure, they feature low insertion loss, high directivity, and highpower handling capability with an internal load for ease ofuse. The OPD-A1102 ultra-wideband directional coupler ismainly used in electronic warfare, radar, communications,test and measurement fields for signal sampling, monitoring,and unequal power distribution. This series consists of standardized products that can be customized according to userrequirements.
OCP-A1102-10 |
|
|
2-18GHz 0.7dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
2-18GHz |
|
Insertion Loss |
0.7dB |
|
Coupling |
10±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.5 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test requirements |
Features |
|
|
Covers 0.5-18GHz frequency range (Series) |
|
|
Uses SMA connectors |
|
|
Stripline circuit structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling |
|
|
Internal load |
|
|
Available in various coupling degrees |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
