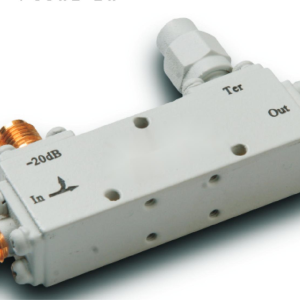

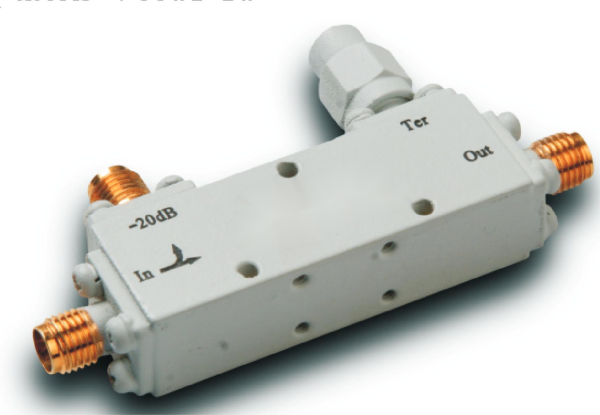

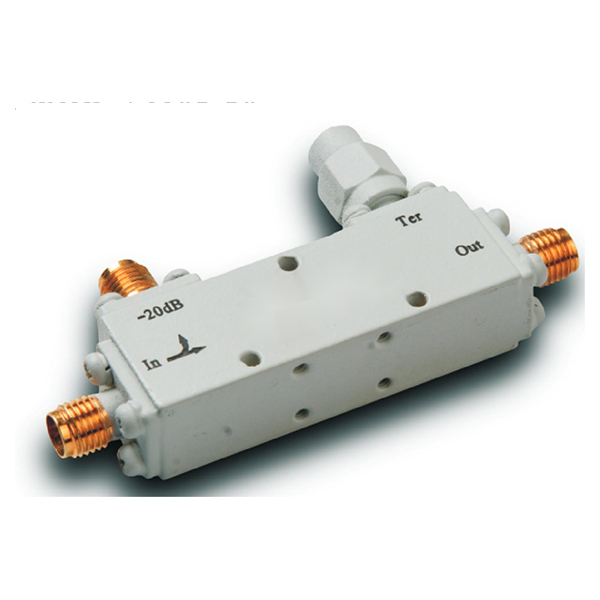

2-18GHz 0.7dB OCP-A1 Series General Purpose Directional Coupler
$0
Covers 0.5-18GHz frequency range (Specific model 2-18GHz)
SMA connectors
Stripline structure
Low insertion loss
High directivity
High power handling capability
Built-in load for ease of use
Available in various coupling degrees
Standardized product, customizable upon request
- Description
- Datasheet

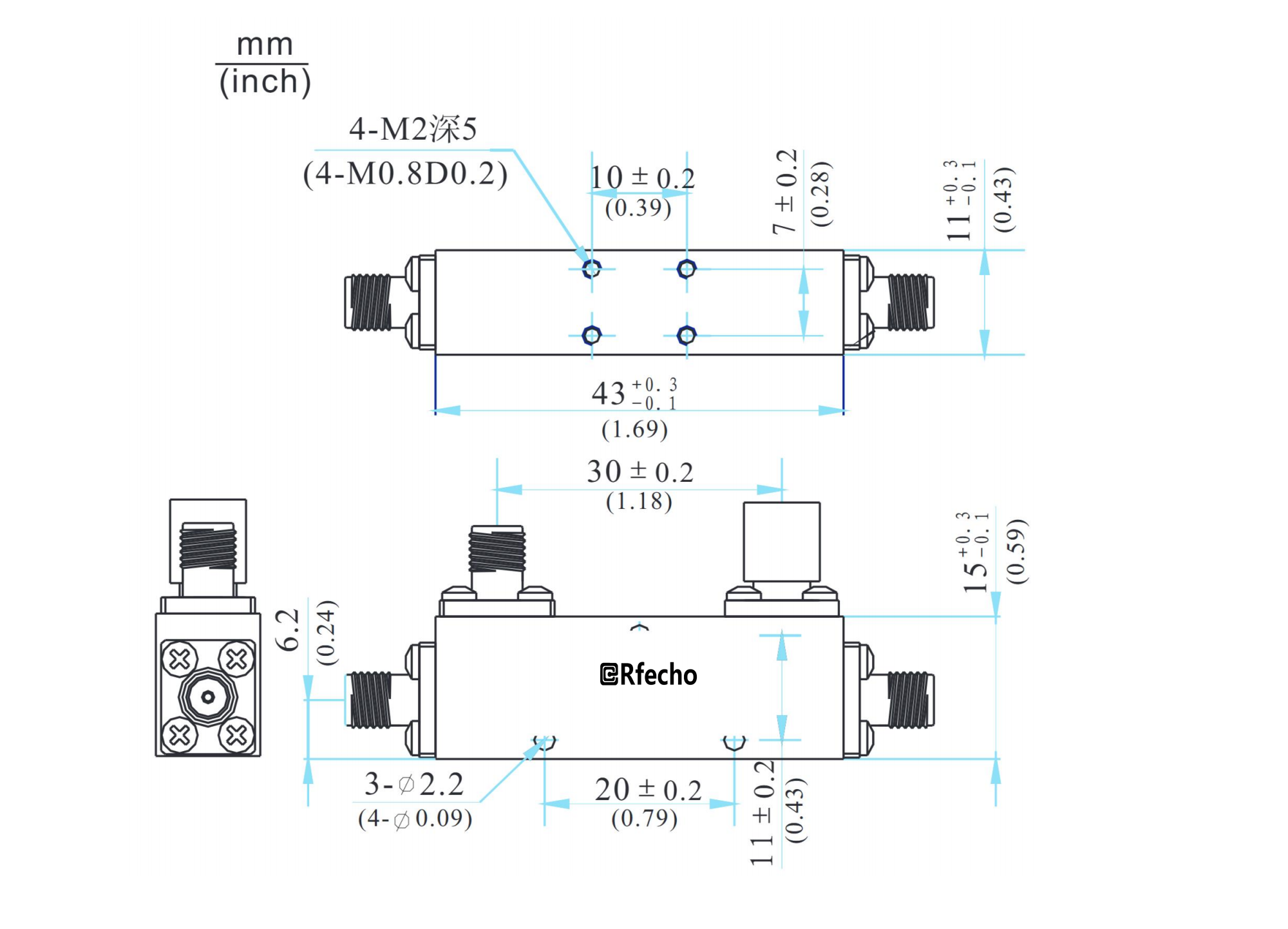

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline structure, they feature relatively low insertion loss, high directivity,large power handling capacity, and a built-in load for convenient use. The OPD-A1102 ultra-wideband directional cou-pler is mainly used in fields such as electronic countermeasures, radar, communications, testing, and measurement forsignal sampling, monitoring, unequal power distribution, andcombining. A variety of coupling degrees are available for selection.
OCP-A1102-20 |
|
|
2-18GHz 0.7dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
2-18GHz |
|
Insertion Loss |
0.7dB |
|
Coupling |
20±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100° |
|
VSWR |
1.5 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
Covers 0.5-18GHz frequency range (Specific model 2-18GHz) |
|
|
SMA connectors |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling capability |
|
|
Built-in load for ease of use |
|
|
Available in various coupling degrees |
|
|
Standardized product, customizable upon request |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
