2-18GHz 0.7dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 2-18GHz
Low Insertion Loss: 0.7dB
High Directivity: 12dB
High Power Handling: 50W
Coupling: 30±1dB
Connector Type: SMA-K
Built-in termination for ease of use
- Description
- Datasheet

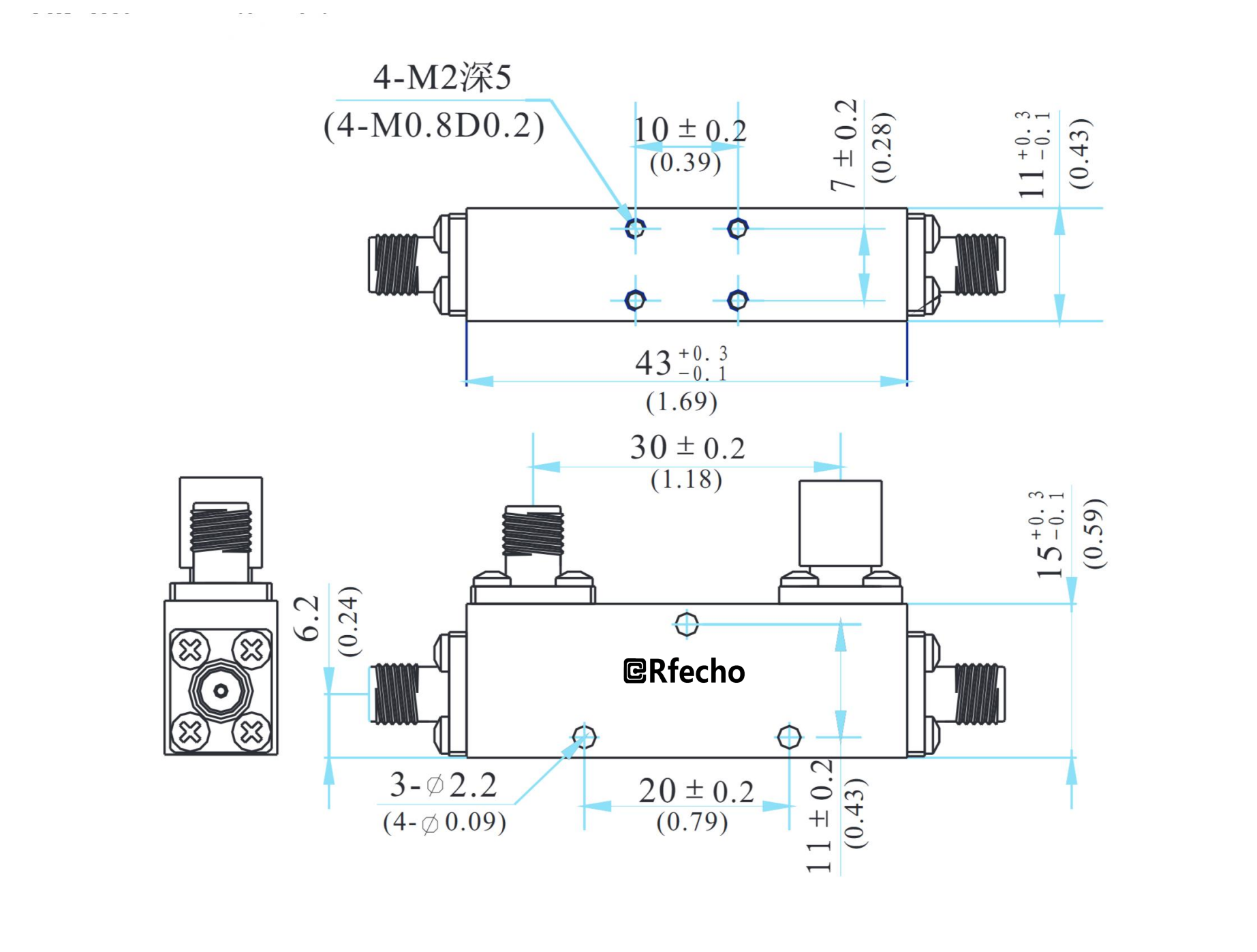

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline circuit structure, they feature low insertion loss, high directiv-ity, high power handling, and a built-in load for convenientusage. The OPD-A1102 ultra-wideband directional coupleris primarily used in electronic warfare, radar, communications, and test and measurement fields for signal sampling,monitoring, unequal power distribution, and synthesis. Various coupling degrees are available. This series consists ofstandardized products that can be customized according touser requirements.

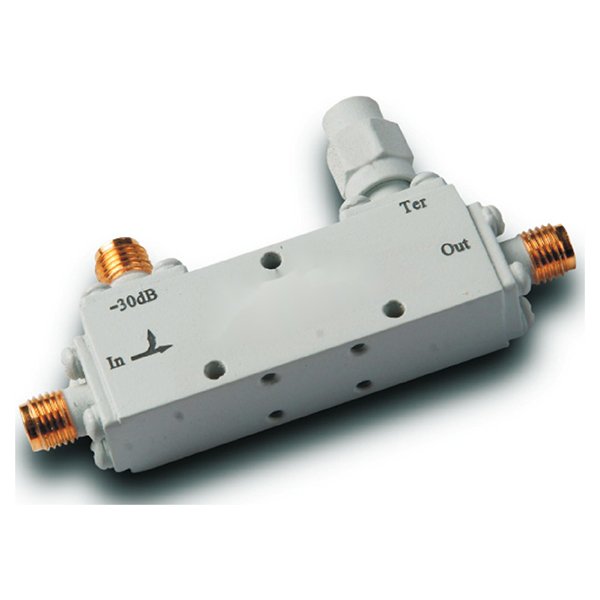

OCP-A1102-30 |
|
|
2-18GHz 0.7dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
2-18GHz |
|
Insertion Loss |
0.7dB |
|
Coupling |
30±1dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.5 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
|
|
Compliance |
Meets GJB-1509-1992 test requirements |
Features |
|
|
Frequency Range: 2-18GHz |
|
|
Low Insertion Loss: 0.7dB |
|
|
High Directivity: 12dB |
|
|
High Power Handling: 50W |
|
|
Coupling: 30±1dB |
|
|
Connector Type: SMA-K |
|
|
Built-in termination for ease of use |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
