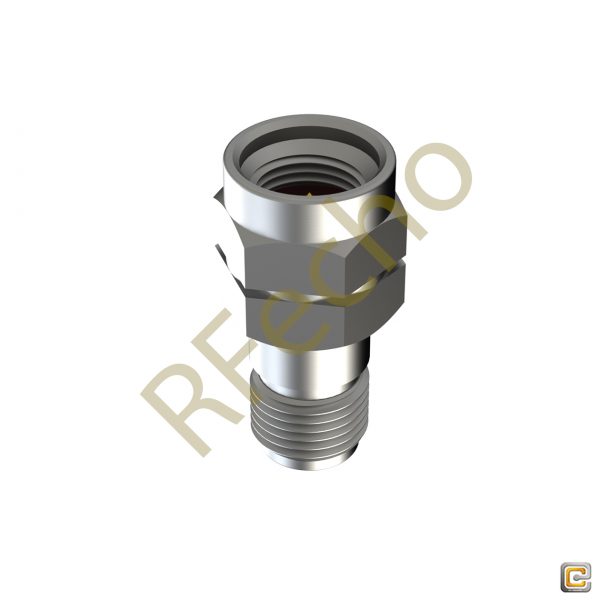

2.40mm 50 GHz, 0.02″ Accept Pin Diameter, Thread-In Male Connector
Model D371-P20-Y02 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.
2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.02″ inches.
- Description
- Reviews (0)
Description
| 2.40mm Connectors | |
| 2.40mm 50 GHz, 0.02″ Accept Pin Diameter, Thread-In NA Mounting Flange Male Connector | |
| D371-P20-Y02 | |
| Model D371-P20-Y02 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB. 2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.02″ inches. | |
| Property | Value |
| Min. Frequency (GHz) | DC |
| Max. Frequency (GHz) | 50 |
| Flange (inch) | NA |
| Mounting | Thread-In |
| Accept Pin Diameter (inch) | 0.02″ |
| Gender | Male |
| Features | |
| Low VSWR | |
| Free through 50 GHz | |
| Applications | |
| Telecom Communication | |
| Sub-assemblies | |
| Radio equipment and instruments | |
| Wireless Communication | |
| Test Labs | |
| Instrumentations | |
