High Pass Microwave Filter model OHP: 2580-6000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Microwave Filter Manufactured with a passband frequency from 2.5GHz to 6GHz and a Cut-off frequency 2.0GHz. Our RF Cavity High Pass Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥70dB @ DC – 2.0GHz. Since the high end cutoff frequency of High Pass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity High Pass Filter has Passband VSWR of ≤2.0:1 and power handling of ≤10W. High Pass Microwave Filter is manufactured with SMA Female Connector and Operating Temperature of 15C to 40C.
2.5GHz to 6GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2.5GHz to 6GHz High Pass Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this RF Cavity High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-2580-6000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter (OHP) – OHP-2580-6000:

  • Cut Off Frequency: 2.0GHz,
  • Pass Band Frequency: 2.58-6GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥70 dB @ DC-2GHz

PDF

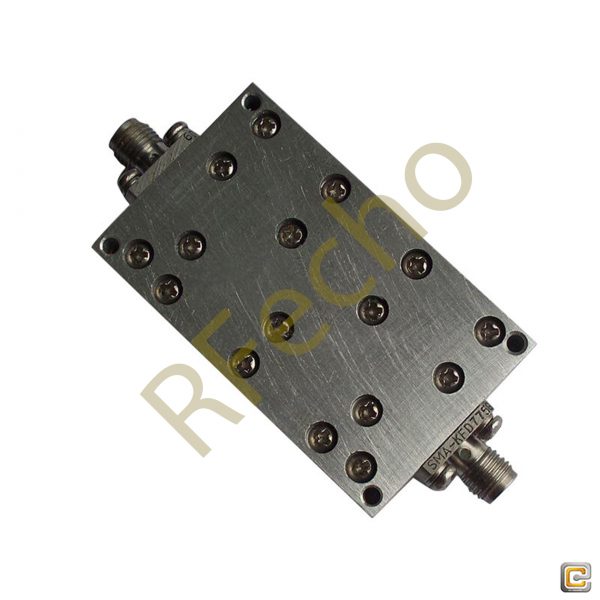

Outline

2.5 GHz to 6 GHz Rejection ≥70 dB @ DC-2000MHz High Pass Cavity Filter 01

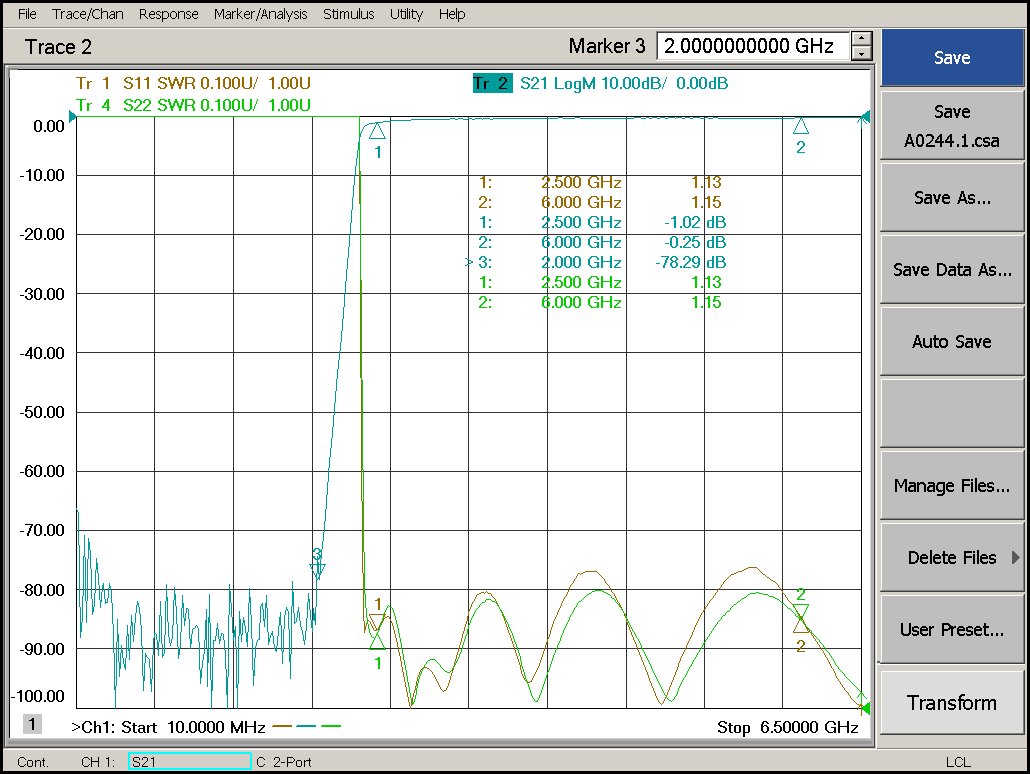

Plot

2.5 GHz to 6 GHz Rejection ≥70 dB @ DC-2000MHz High Pass Cavity Filter 02

Additional information

Min. Pass Band Frequency (GHz)

2.5

Max. Pass Band Frequency (GHz)

6

Connection Type

SMA-Female

Power Handling (W)

10

Insertion Loss

≤1.5dB

VSWR

≤2.0:1

Rejection

≥70 dB @ DC-2000MHz

Impedance (Ω)

NA

Surface Finish

Guided Oxygen or Black Paint
